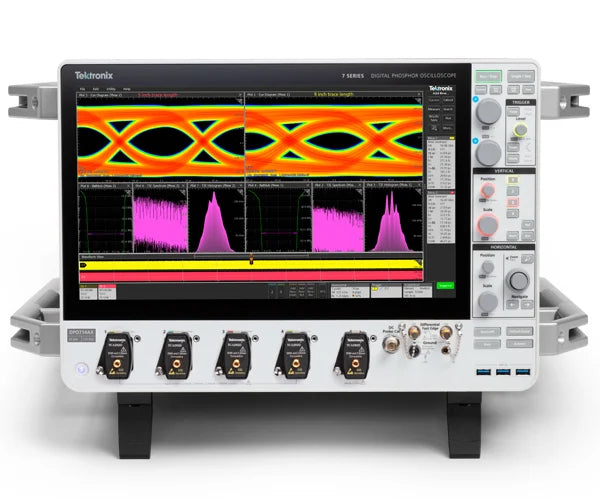

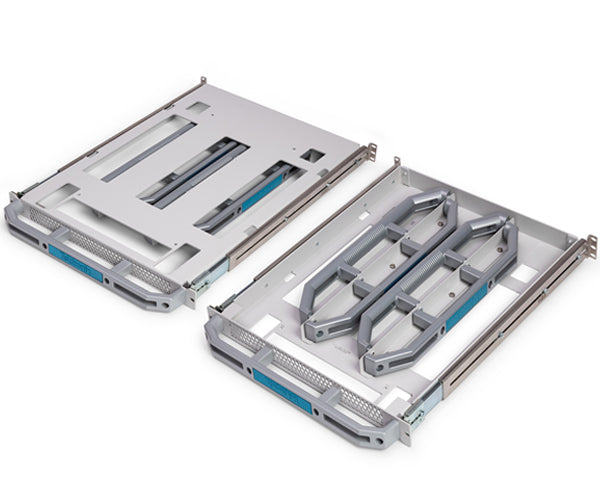

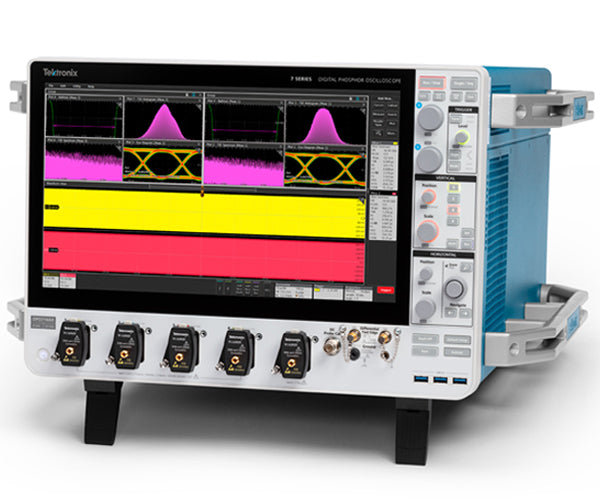

DPO7

Name: DPO7
Brand: Tektronix
Availability: InStock

Key Features

Input channels
4 TekConnect® each with TCA292D 50 Ω 2.92 mm input adapter
1 Aux In (TekConnect) with TCA292D 50 Ω 2.92 mm input adapter

Bandwidth (all analog channels)
8 GHz, 10 GHz, 13 GHz, 16 GHz, 20 GHz, 25 GHz(upgradable)

Sample rate (all analog channels)
Real-time: 125 GS/s
Interpolated: 12.5 TS/s

Record length (all analog channels)
500 Mpoints standard with 1 or 2 Gpoints optional

ADC resolution
12-bit ADC with high ENOB

Noise Reduction
QuietChannel™ technology with Active CTLE (Continuous Time Linear Equalization) with 7 boost settings and one button optimization routine which selects the optimal setting for the input signal to compensate for high-frequency signal channel loss.

Horizontal
Precision timebase with low intrinsic jitter

Pinpoint® digital triggering to full bandwidth
Allows selection of virtually all trigger types on both A and B trigger events delivering the full suite of advanced trigger types for finding sequential trigger events
Edge, Pulse width, Timeout, Runt, Window, Cycle, Rise/Fall Time, Visual Trigger

Waveform Capture Rate
FastAcq™ - up to 150,000 waveforms/sec
FastFrame™ - maximum trigger rate >30,000,000 waveforms/sec

Low-latency Aux In analog triggering

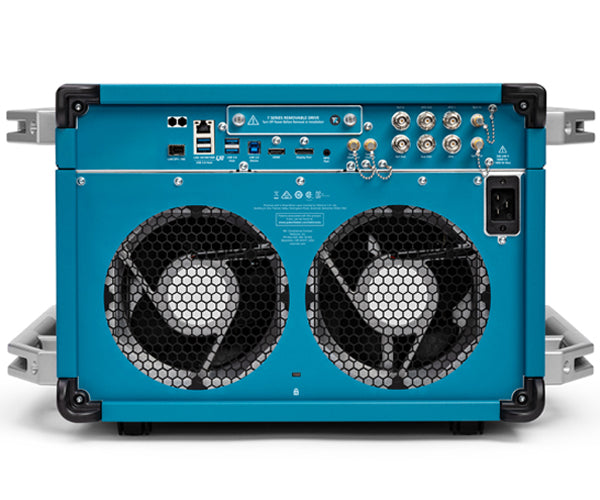

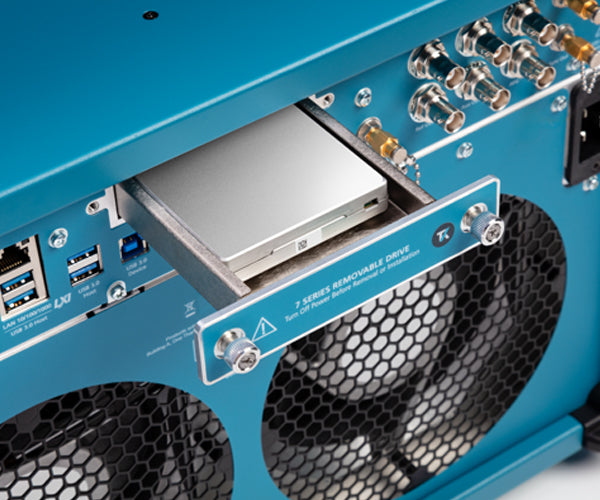

<20 ns from trigger in on Aux In and Ch1 to Aux Out BNC on rear panel.

Bandwidth 8GHz 10GHz 13GHz 16GHz 20GHz 25GHz

Channels 4

Download datasheet

Interested in this product?

Send us your details and we’ll get back to you with availability, pricing, and any additional information you need.

The DPO70000 / DPO70000SX family represents Tektronix’s ultra-high-performance real-time oscilloscope platform for multi-gigahertz through millimeter-wave signal capture. Depending on exact model, bandwidth, channel count, and ATI vs. conventional architectures vary; the SX ATI models emphasize low-noise acquisition at the highest bandwidths.

High sample rates (tens to hundreds of GS/s class), deep memory, and advanced triggering enable analysis of high-speed serial links, radar, and optical signals. Optional analysis packages address jitter, equalization, PAM, and standards compliance. Probing and fixtures from the Tek high-bandwidth ecosystem complete the measurement channel.

Select a specific DPO7xxxx model for your required bandwidth and channel count; contact us for configuration guidance when migrating between DPO70000 and DPO70000SX variants.
