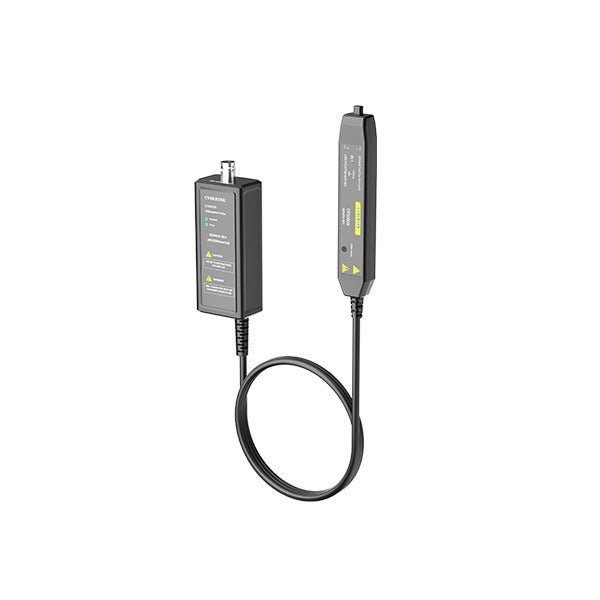

DP60x0B Series High-Frequency Low-Voltage Differential Probe 20–60 V, 1 GHz
Interested in this product?
Send us your details and we’ll get back to you with availability, pricing, and any additional information you need.
The DP60x0B series high-frequency low-voltage differential probes measure ±20 V, ±40 V and ±60 V (DC + peak) with up to 1 GHz bandwidth and 10:1, 20:1 and 50:1 attenuation. Low input capacitance minimizes circuit loading for fast gate-drive and signal measurements.
An overload alarm is built in, and the BNC output connects to any oscilloscope set to 50 Ω input.
Models & Specifications
Common Specifications
| Specification | Value |
|---|---|
| Bandwidth | DC–1 GHz |
| Rise Time | ≤350 ps |
| Accuracy | ±1% |
| Input Capacitance | 1 pF |
| Output | BNC (50 Ω oscilloscope input) |
Model Comparison
| Model | Max. Differential Voltage (RMS) | Max. Differential Voltage (DC + Peak) | Attenuation |
|---|---|---|---|

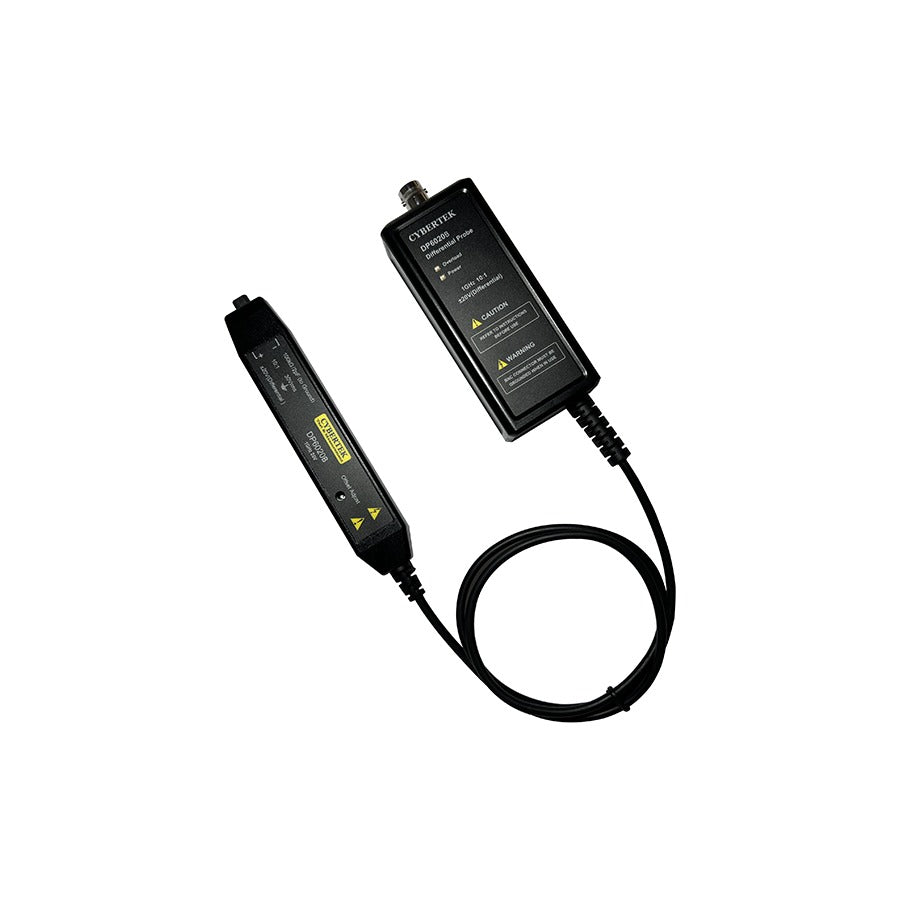

| DP6020B | 14 V | ±20 V | 10:1 |
| DP6040B | 28 V | ±40 V | 20:1 |
| DP6060B | 42 V | ±60 V | 50:1 |
Specifications from the official Cybertek datasheet (English); use the Download Datasheet button for full details.
