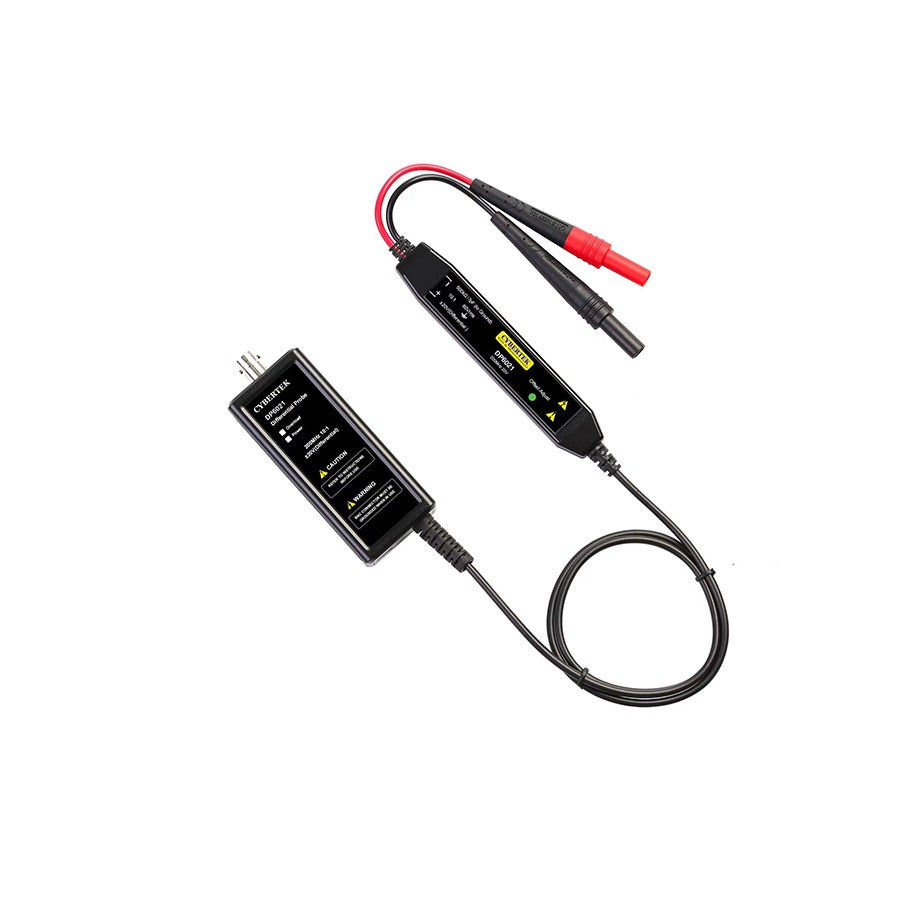

DP6021 High-Frequency Low-Voltage Differential Probe 20 V, 200 MHz
Interested in this product?
Send us your details and we’ll get back to you with availability, pricing, and any additional information you need.
The DP6021 is a high-frequency low-voltage differential probe for signals up to ±20 V (DC + peak) with 200 MHz bandwidth and 10:1 attenuation. It is designed for gate-drive, logic and low-voltage power measurements where a ground-referenced probe would short or load the circuit.
An overload indicator warns when the input exceeds the measuring range. Use with an oscilloscope set to 50 Ω input impedance.
Models & Specifications
| Specification | DP6021 |
|---|---|
| Max. Differential Voltage | ±20 V (DC + peak) |
| Bandwidth (–3 dB) | 200 MHz |
| Attenuation | 10:1 |
| Offset Adjust Range (typ.) | ±95 mV |
| Output | BNC (50 Ω oscilloscope input) |
Specifications from the official Cybertek datasheet (English); use the Download Datasheet button for full details.
