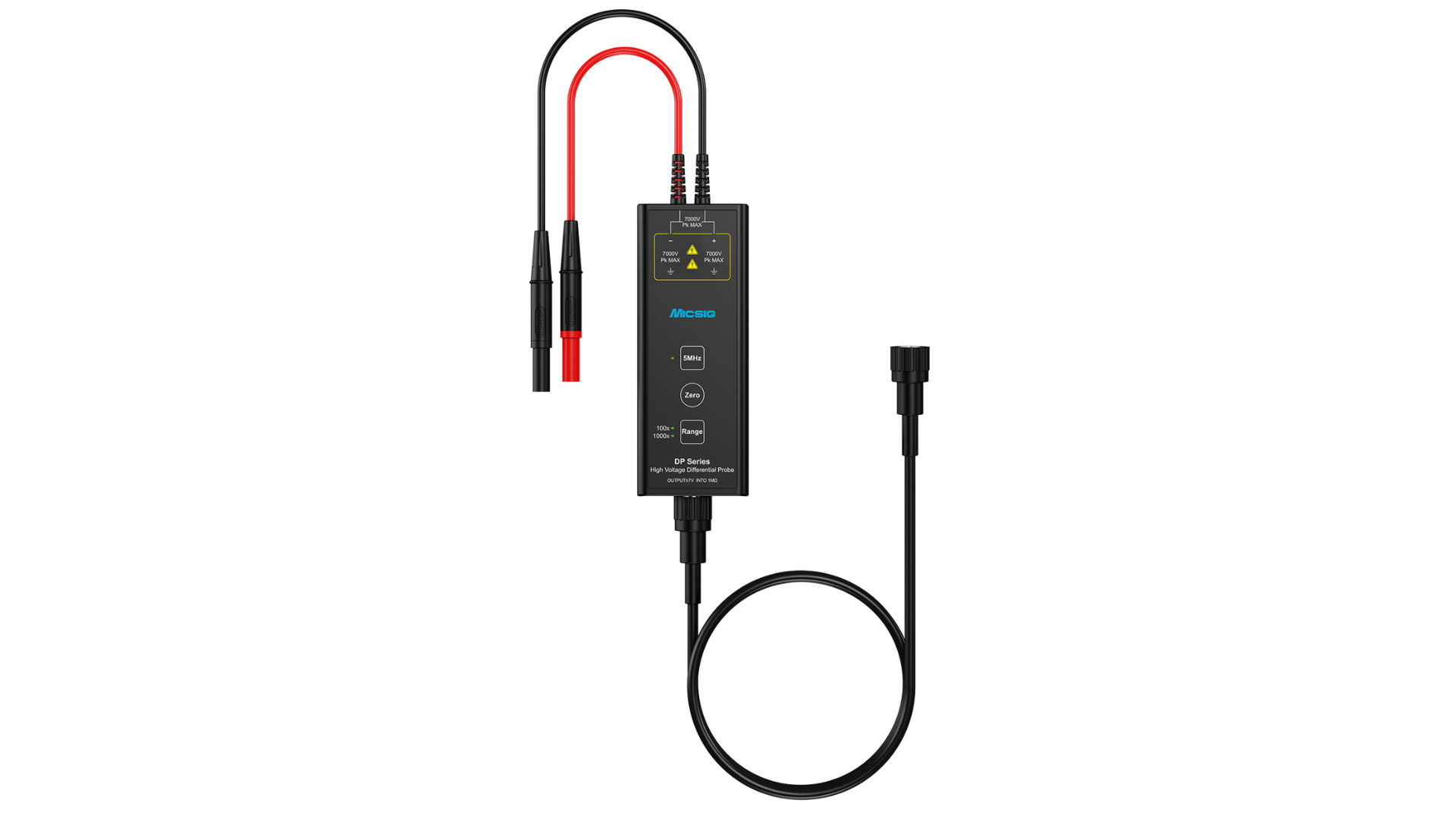

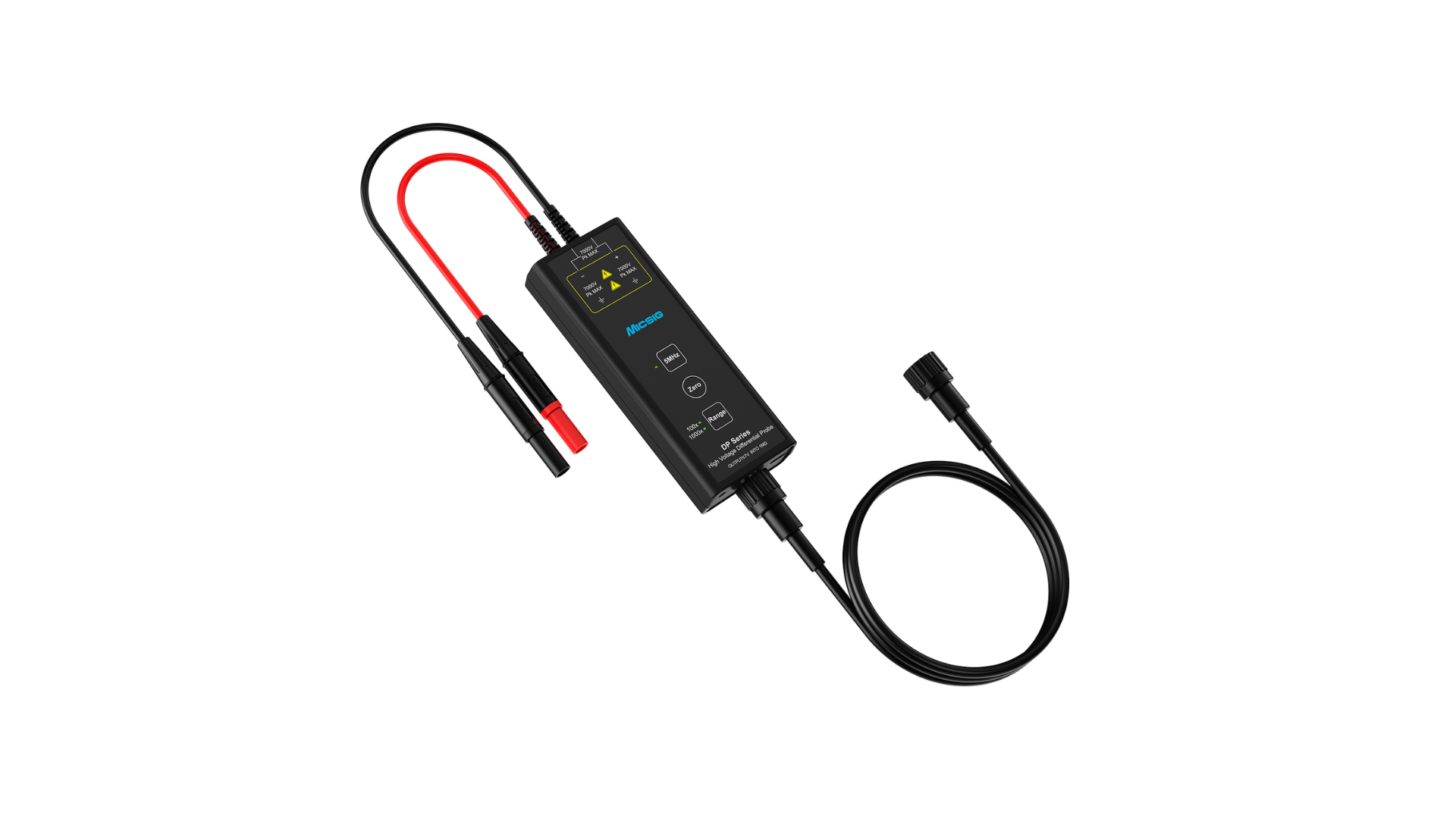

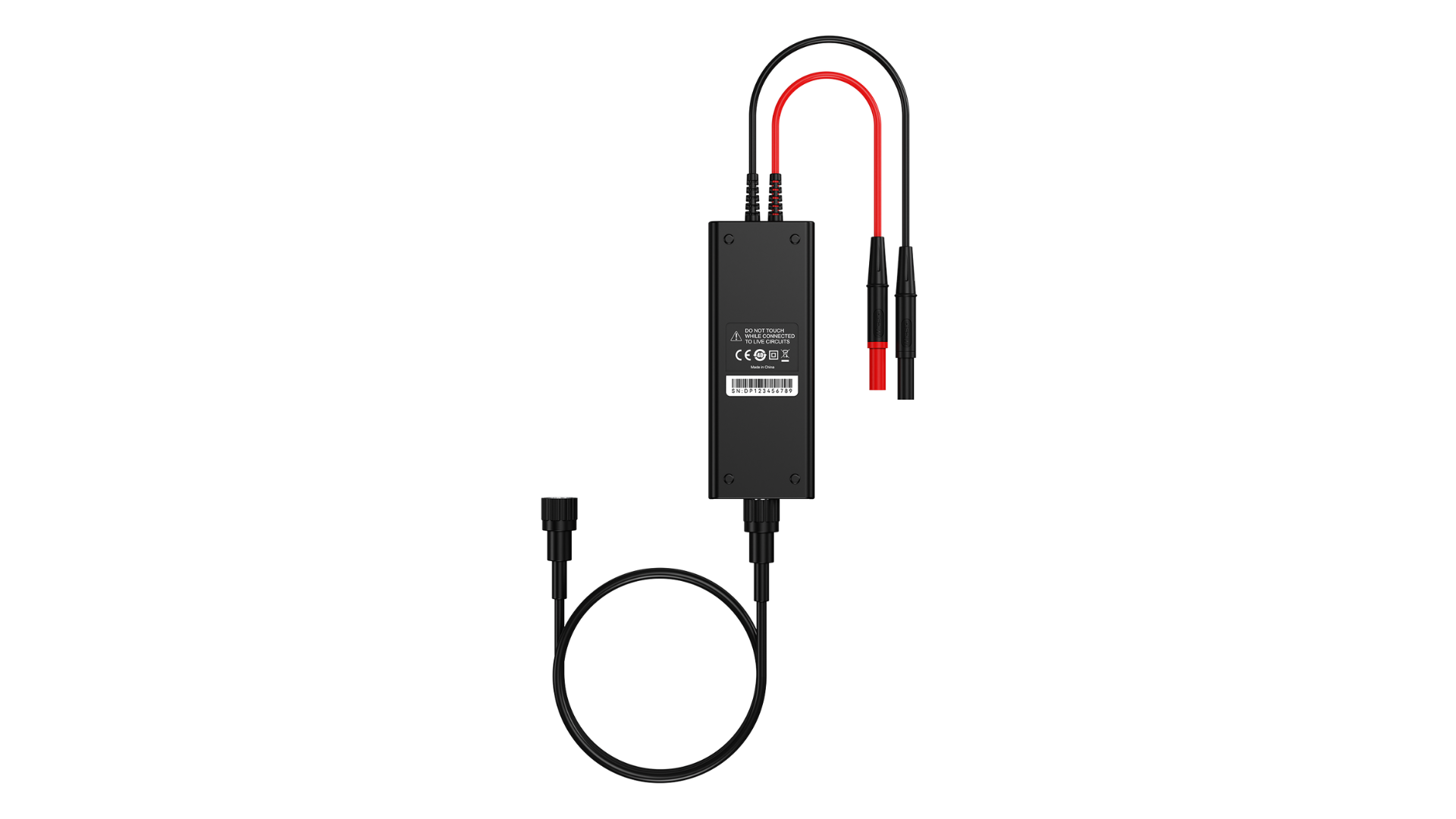

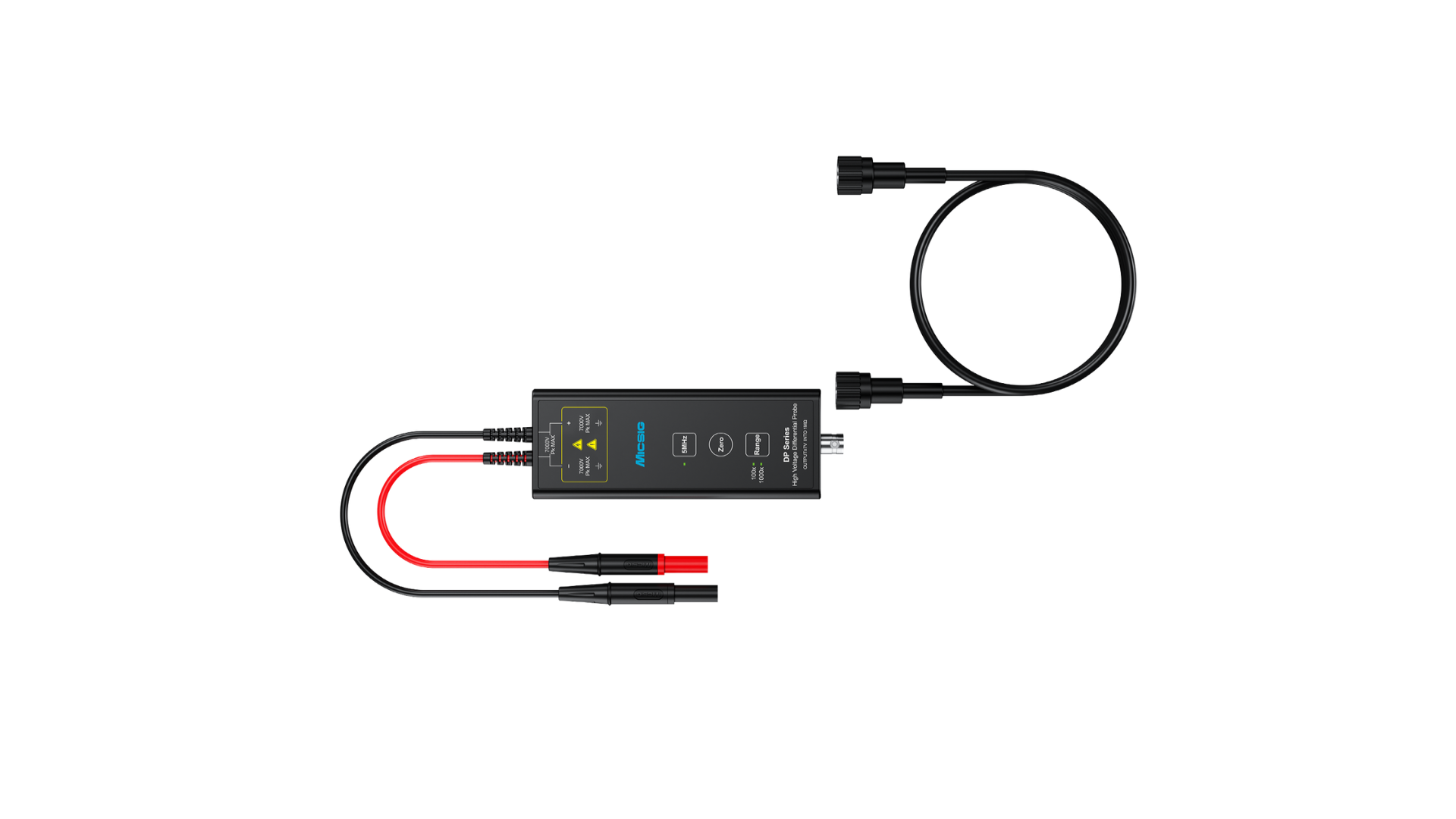

DP7002 7000V 200MHz Differential Probe

Accuracy: ±2% (Customizable 1% accuracy)

Bandwidth: 200MHz

Differential Voltage (DC+AC PK) Max.:

• 700V（100X）
• 7000V（1000X）

CMRR:

• DC: >-80dB
• 100kHz: >-60dB
• 10MHz: >-30dB
• 100MHz: >-26dB

Input Impedance:

• 120MΩ/0.78pF (differential)
• 60MΩ/1.57pF(each input to ground)
