DLM5000HD

  • 4 or 8 analog channels, 16-bit logic + optional additional 16-bit logic
  • Bandwidth: 350 or 500 MHz
  • Sample Rate: up to 2.5 GS/s
  • Vertical resolution: 12 bit
  • High resolution mode: up to 16 bit
  • Measurement memory: up to 1 GigaPoints
  • History waveforms: up to 200,000 triggers
  • Simultaneous Multi-Channel Measurements: Up to 32 bit logic + 8 channels
    • Up to 16 channels with two connected DLM5000HDs via DLMsync
    • IEEE1588 Synchronous Support
  • Highly-Responsive, Intuitive 12.1in Touchscreen
    • with Traditional Oscilloscope Control Panel
  • Superior Noise Immunity
  • Logic and Serial Bus Analysis
  • Additional Math Channels
  • Extensive Voltage Ranges
  • Compact, Light, Portable
Bandwidth
Channels

Interested in this product?

Send us your details and we’ll get back to you with availability, pricing, and any additional information you need.

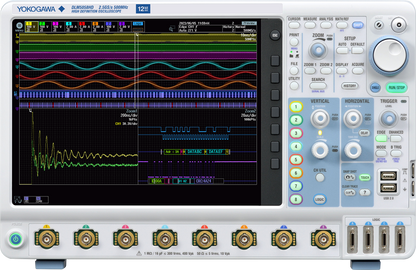

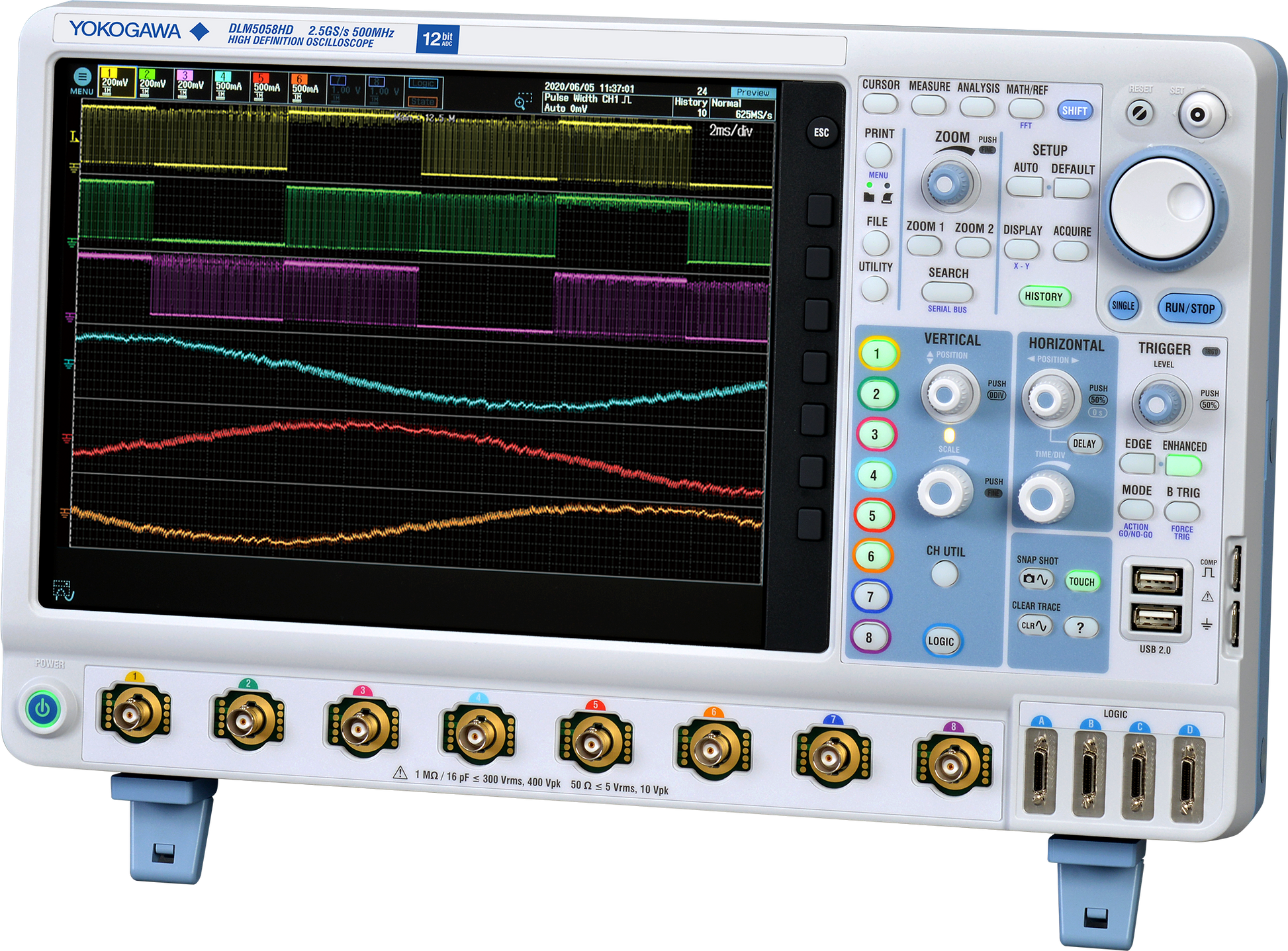

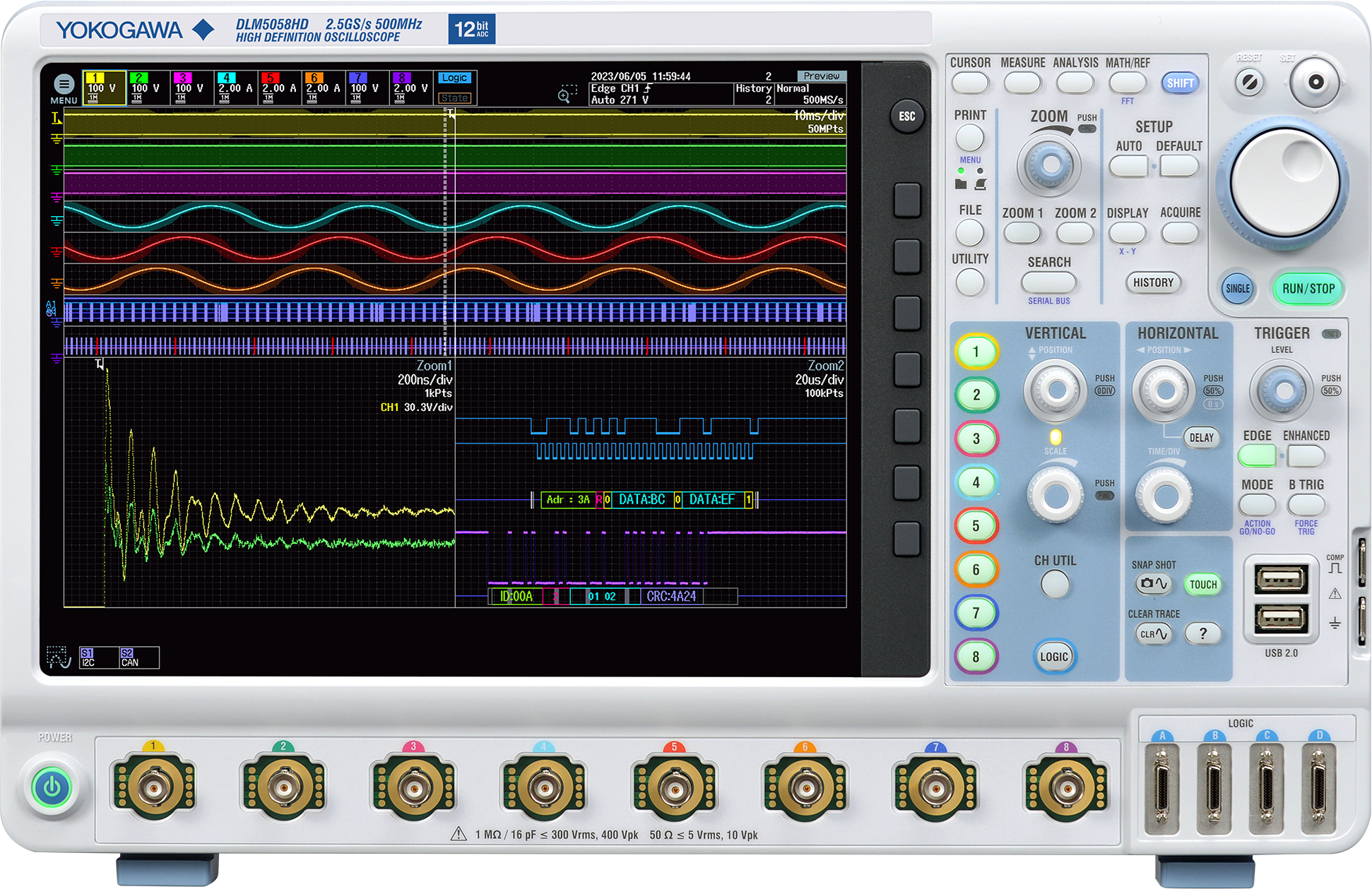

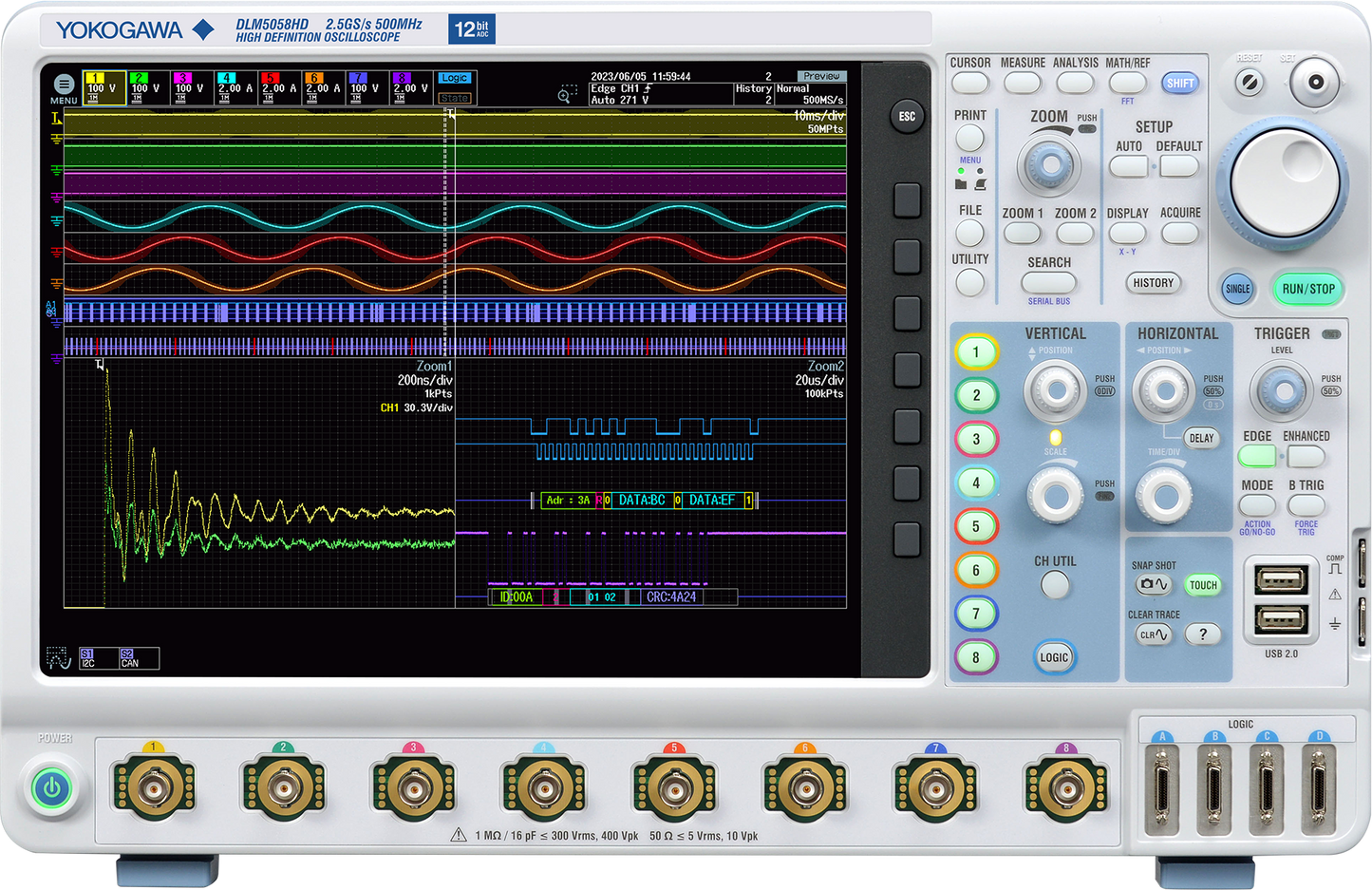

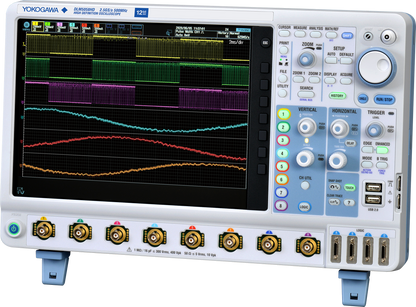

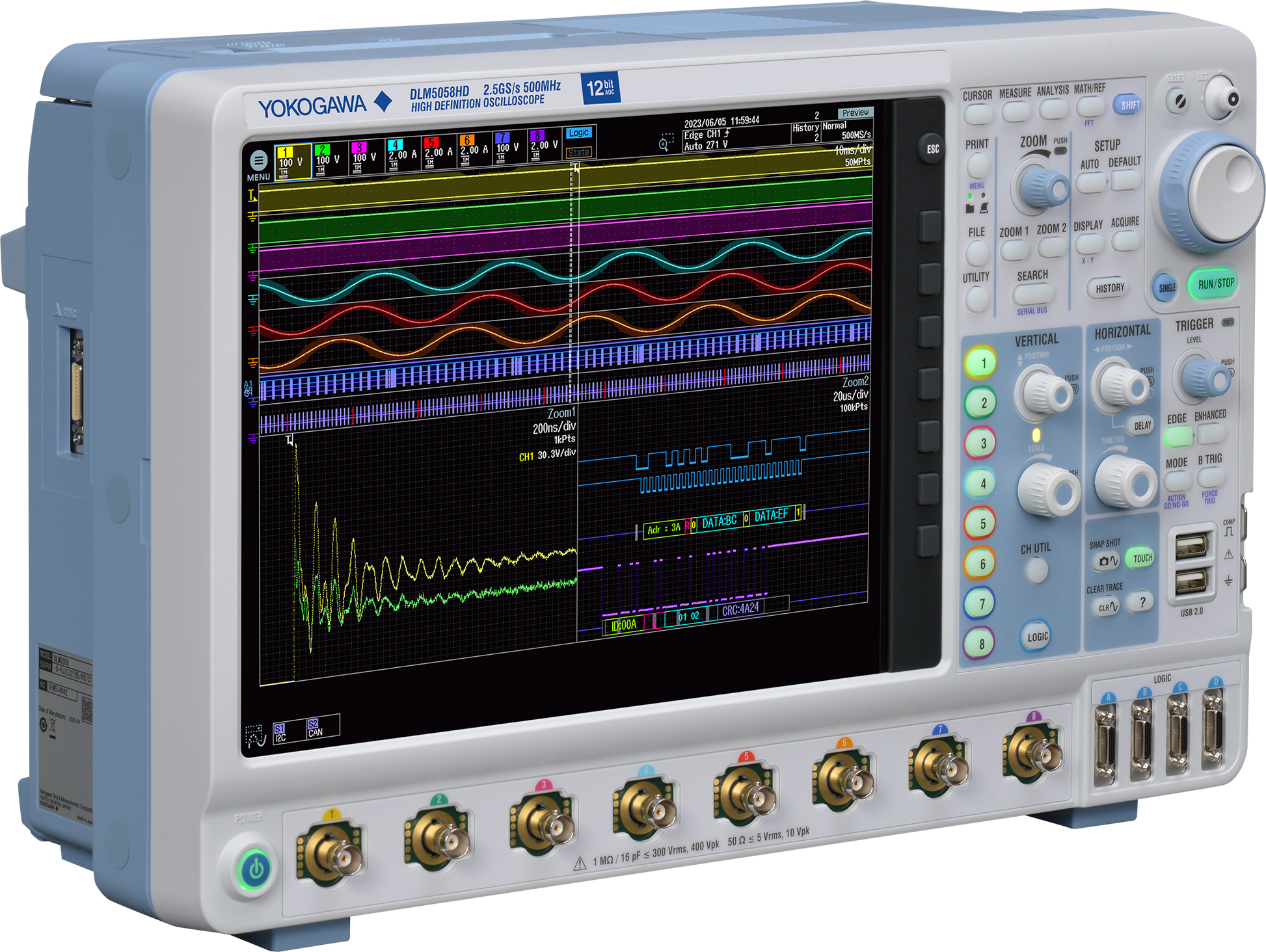

DLM5000HD High-Definition Oscilloscope

Precision in Every Detail

The DLM5000HD Series High-Definition Oscilloscope is the latest addition to the Yokogawa Test&Measurement oscilloscope line-up that takes you beyond eight channels.

Adaptability is key in the development of high-performance and intelligent power semiconductor technologies and mechatronics in modern electric vehicles, motor controls, and energy efficient electronic designs. With up to 16 bits high resolution, best-in-class startup speed, the ability to support measurements up to 16 channels, high noise immunity for harsh environments, and more, the four-to-eight channel DLM5000HD Series enables easy touch navigation through a wealth of analysis features.
