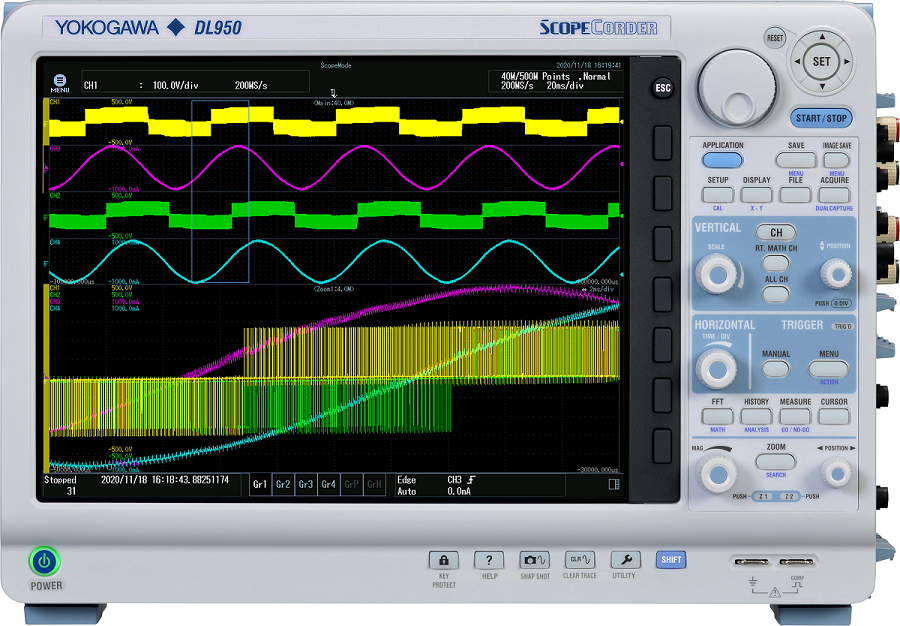

DL950 ScopeCorder

Key Features

  • 8 module slots, up to 32 channels, or 128 with 16-channel modules
  • 200 MS/s, up to 16-bit, isolated inputs to 1000 V
  • 1 Gpoint memory standard, 8 Gpoints with the /M2 option
  • 12.1-inch touch screen
  • 10 Gbps Ethernet streaming and flash recording up to 20 MS/s
Model
Download datasheet

Interested in this product?

Send us your details and we’ll get back to you with availability, pricing, and any additional information you need.

ScopeCorder that combines a mixed-signal oscilloscope with a portable data-acquisition recorder. It captures fast transients and long trends on the same instrument, with isolated plug-in modules.

Eight module slots, sample rates up to 200 MS/s, and up to 8 Gpoints of memory. Up to five DL950 and SL2000 units can be synchronized.

Models & Specifications

Specification DL950
Slots 8
Channels Up to 32 (4-ch modules) or 128 (16-ch modules); 160 synchronized
Maximum sample rate 200 MS/s
ADC resolution 12, 14 or 16-bit, by module
Memory 1 Gpoint standard; 4 Gpoint /M1; 8 Gpoint /M2
Display 12.1-inch colour TFT, capacitive touch, 1024 × 768
Isolation Up to 1000 V, module dependent
PC streaming 10 GbE, Ethernet, USB
Recording Internal flash up to 20 MS/s; 512 GB SSD option
Synchronization Up to 5 DL950 and SL2000 units

Specifications from the official Yokogawa bulletin DL950-SL2000-01EN.
