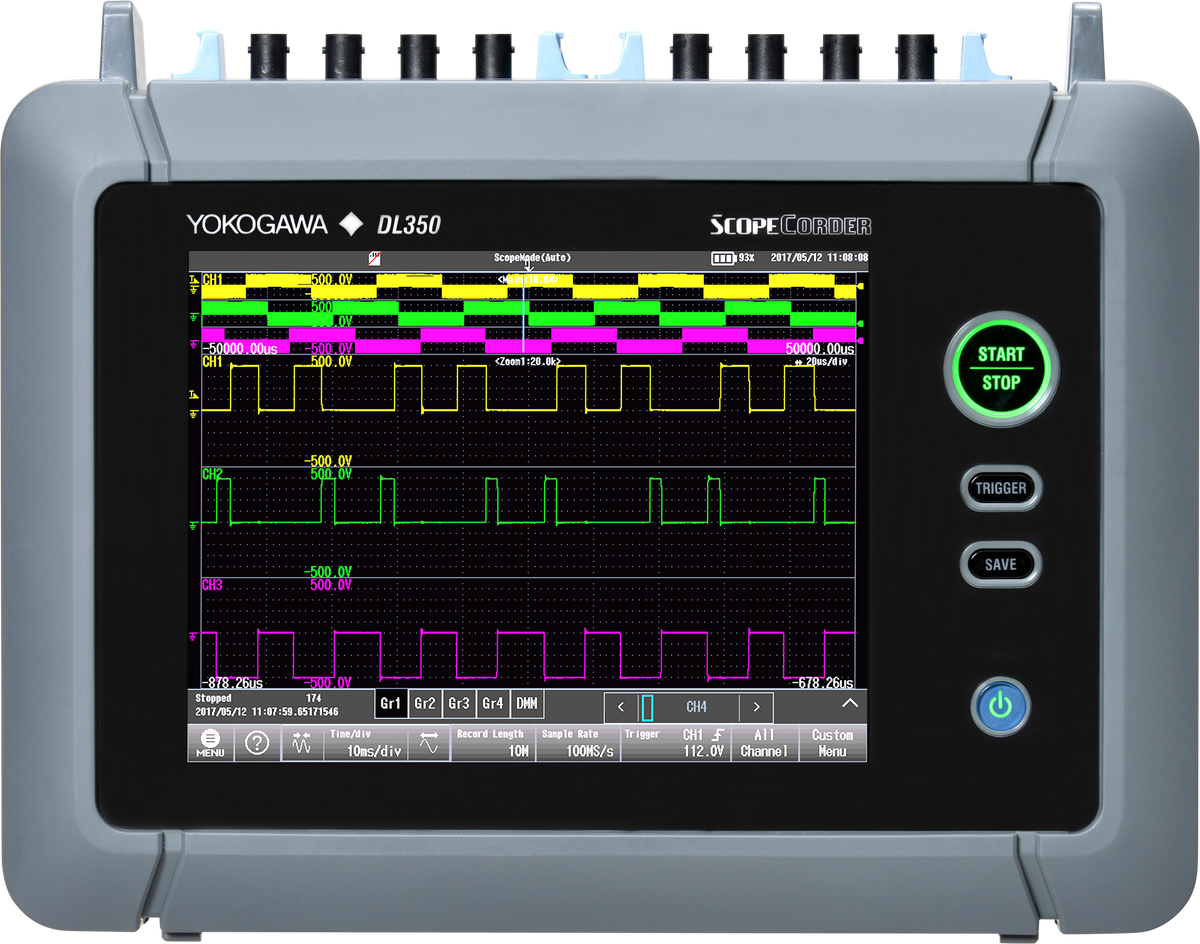

DL350 ScopeCorder
Interested in this product?
Send us your details and we’ll get back to you with availability, pricing, and any additional information you need.
Portable ScopeCorder in an A4-size chassis. Two module slots give up to 8 isolated analog channels, with sample rates up to 100 MS/s, and it runs from AC, DC or the rechargeable battery.
The same style of plug-in module as the other ScopeCorders is used. An 8.4-inch touch screen and up to 100 Mpoints of memory per module cover both short transients and longer recordings in the field.
Models & Specifications
| Specification | DL350 |
|---|---|
| Slots | 2 |
| High-speed channels | 8 at 1 MS/s, or 4 at 100 MS/s |
| Scanned channels | Up to 32 at 10 kS/s, or 16 at 20 kS/s |
| Maximum sample rate | 100 MS/s |
| ADC resolution | 12 or 16-bit, by module |
| Memory | Up to 100 Mpoints per module, 200 Mpoints total |
| Isolation | Up to 1 kV |
| Display | 8.4-inch touch screen |
| Power | AC adapter, 10 to 30 V DC, or lithium-ion battery |
| Dimensions | Approx. 305 × 217 × 92 mm |
| Weight | Approx. 3.9 kg with battery and two 720254 modules |
Specifications from the official Yokogawa bulletin DL350-01EN.
