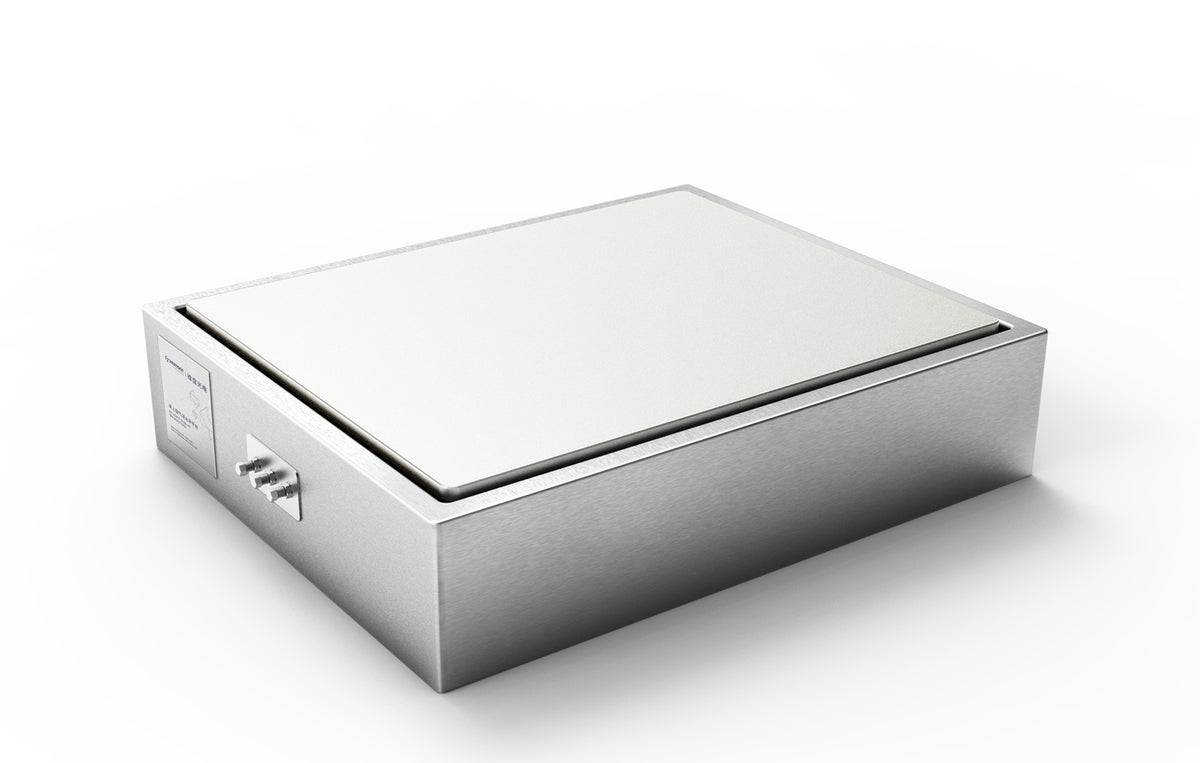

Desktop Air-Floating Optical Platform
Interested in this product?
Send us your details and we’ll get back to you with availability, pricing, and any additional information you need.
The DL-ZSPT desktop air-floating platform is a compact, bench-top vibration isolation platform for microscopes, small optical setups and precision instruments. Built-in air springs with damper holes give a natural frequency of about 3 Hz in a 500 × 400 mm footprint only 150 mm high.
The work surface is ferromagnetic stainless steel with M6 holes on a 25 mm grid.
Models & Specifications
| Specification | Value |
|---|---|
| Table Size L×W×T (mm) | 500×400×150 |
| Height (mm) | 150 |
| Natural Frequency | 3Hz |
| Max. Load (kg) | 50 |
| Isolation Method | Air spring |
| Damping Method | Damping orifice |
| Table Weight (kg) | 25 |
| Model |
|---|
| DL-ZSPT-0504-15 |
Custom sizes, hole patterns and isolation options are available on request. Datasheet: Dimension-Labs optical table selection guide (Chinese).
