Damping Optical Breadboard
Interested in this product?
Send us your details and we’ll get back to you with availability, pricing, and any additional information you need.

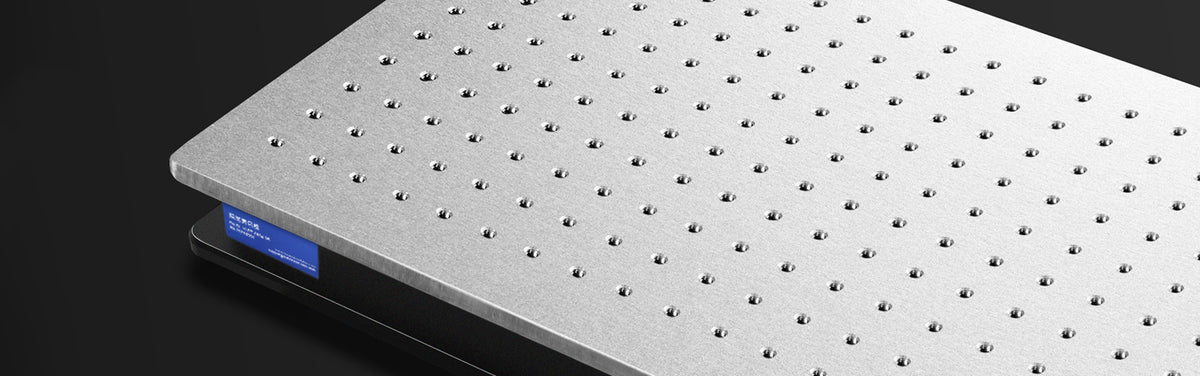

The DL-ZNPB series damping breadboards are compact optical work surfaces with the same construction as Dimension-Labs optical tables: a welded steel-grid core of 6 mm plates, stress-relieved by tempering, under a ferromagnetic stainless-steel top. They suit single-station work on production lines, portable modules and bench-top setups, and a leveling mechanism can be fitted on request.
M6 tapped holes are arranged on a 25 mm × 25 mm grid; flatness is 0.1 mm/m².
Models & Specifications
| Specification | Value |
|---|---|
| Flatness (mm/m²) | 0.1 |
| Max. Dynamic Deflection Coefficient | 1.1×10⁻³ ~ 3.5×10⁻³ |
| M6 Hole Pitch (mm) | 25 × 25 |
| Max. Relative Displacement (nm) | 0.22~0.70 |
| Model | Table Size L×W×T (mm) | Height (mm) | Max. Load (kg) | Table Weight (kg) |
|---|---|---|---|---|
| DL-ZNPB-0603-05 | 600×300×50 | 50 | 100 | 40 |
| DL-ZNPB-0604-05 | 600×400×50 | 50 | 100 | 45 |
| DL-ZNPB-0906-05 | 900×600×50 | 50 | 200 | 90 |
| DL-ZNPB-0906-10 | 900×600×100 | 100 | 200 | 110 |
Custom sizes, hole patterns and isolation options are available on request. Datasheet: Dimension-Labs optical table selection guide (Chinese).
