CTV Series High-Accuracy Fluxgate Current Sensor 60–2000 A, Voltage Output
Interested in this product?
Send us your details and we’ll get back to you with availability, pricing, and any additional information you need.
The CTV series are ultra-accurate fluxgate current sensors with a voltage output, measuring DC and AC current from 60 A to 2000 A with bandwidth up to 2 MHz and accuracy of ±(0.03% of reading ±0.2 mV).
Fluxgate technology gives excellent linearity, low DC offset, low temperature drift, low insertion loss, high immunity to external fields and low noise. The voltage output connects directly to oscilloscopes, DAQs and power analyzers. Applications include current feedback, calibration, energy measurement, medical equipment and EV electronics.
Models & Specifications
Common Specifications
| Specification | Value |
|---|---|
| Accuracy | ≤ ±(0.03% of reading ±0.2 mV) |
| Output | Voltage output |
| Power Supply | ±15 V from PS201/PS202/PS204/PS208 |
Model Comparison
| Model | Rated Current (RMS) | Max. Current (DC / Peak) | Bandwidth | Aperture |
|---|---|---|---|---|

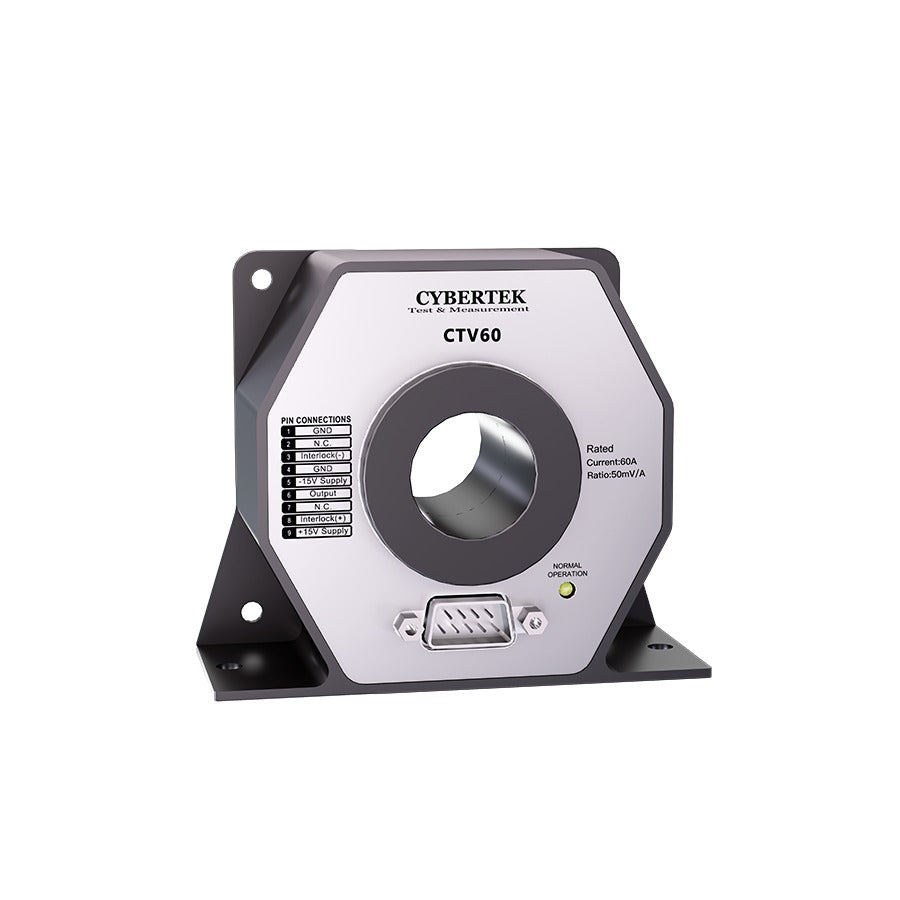

| CTV60 | 42 A | 60 A | DC–2 MHz | 25 mm |
| CTV200 | 141 A | 200 A | DC–1.5 MHz | 25 mm |
| CTV1000 | 707 A | 1000 A | DC–1 MHz | 30 mm |
| CTV2000 | 2000 A | 2800 A | DC–500 kHz | 80 mm |
Specifications from the official Cybertek datasheet (English); use the Download Datasheet button for full details.
