• CTB108 8-Channel Power Supply for CTB***A Current Sensors

CTB108 8-Channel Power Supply for CTB***A Current Sensors

Key Features

  • Powers 8 CTB***A current sensors
  • Independent degauss and zero per channel
  • 8 independent BNC outputs
  • 90–264 V AC input
  • 19-inch rack-width chassis
Model
Download datasheet

Interested in this product?

Send us your details and we’ll get back to you with availability, pricing, and any additional information you need.

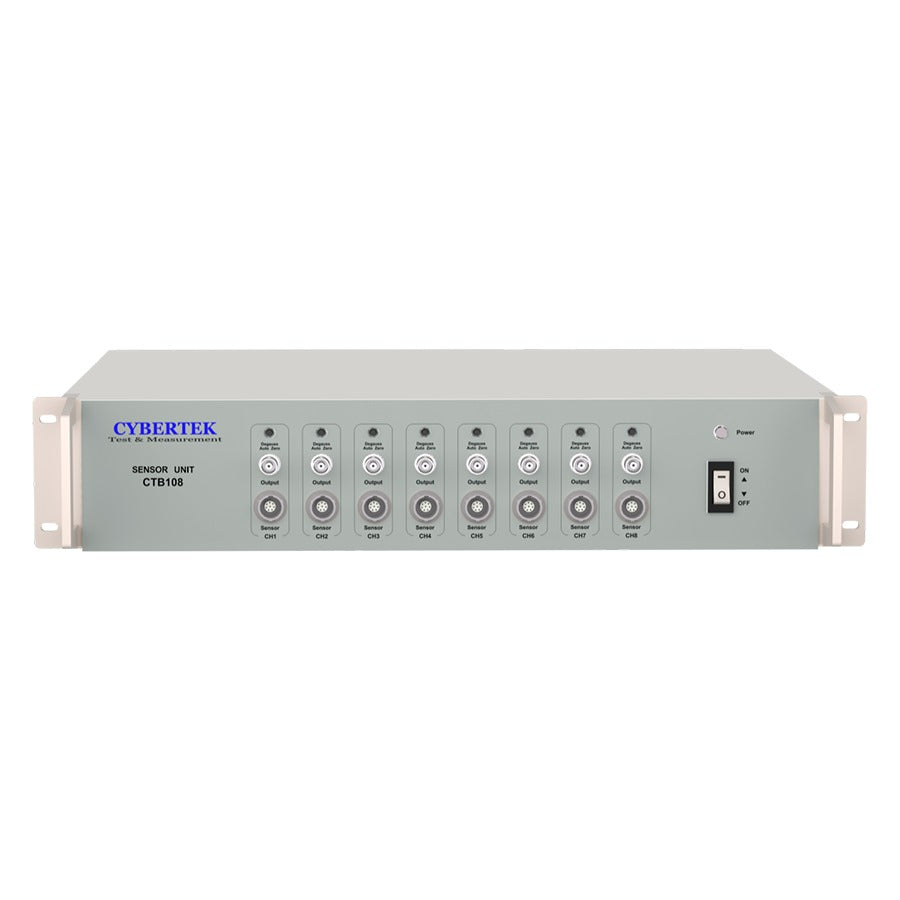

The CTB108 is an 8-channel power supply for CTB***A series high-accuracy current probes. Up to eight sensors connect through dedicated 8-pin connectors, each channel can be degaussed and zeroed independently from the front panel, and each has its own BNC signal output for oscilloscopes, power analyzers and recorders.

Models & Specifications

Specification CTB108
Channels 8 (CTB***A sensors, 8-pin connector)
Degauss / Zero 8 channels, independent control
Signal Output BNC, 8 independent outputs
Output Voltage ±12 V ±0.5 V per channel
Output Current max. 0.6 A per channel
Input Voltage 90–264 V AC, 47–63 Hz
Size (L × H × W) 482.6 × 88.9 × 360 mm (19-inch rack)
Weight 4.54 kg

Specifications from the official Cybertek datasheet (Chinese); use the Download Datasheet button for full details.
