CTB104 / CTB104A 4-Channel Sensor Unit for CTB***A Current Sensors

Key Features

  • Powers 4 CTB***A current sensors
  • Per-channel degauss and zero
  • BNC signal output per channel
  • 90–264 V AC input
  • CTB104: ±12 V; CTB104A: ±14.7 V sensor supply
Model
Download datasheet

Interested in this product?

Send us your details and we’ll get back to you with availability, pricing, and any additional information you need.

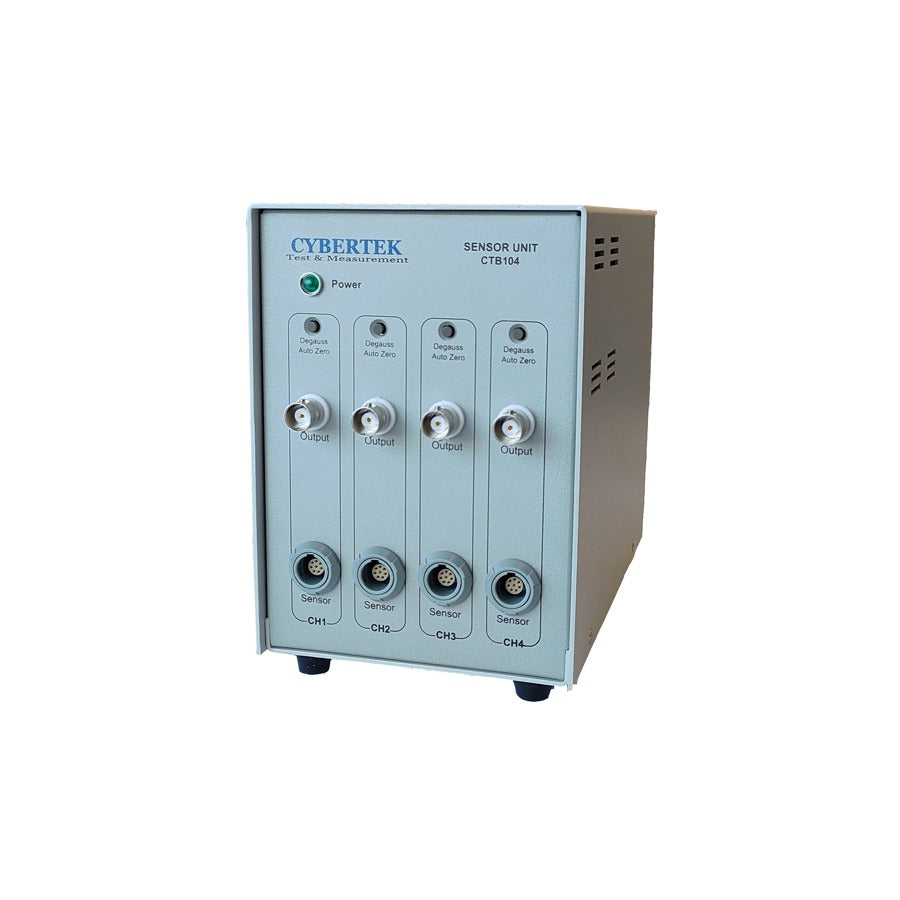

The CTB104 and CTB104A sensor units power up to four CTB***A series high-accuracy current sensors through dedicated 8-pin connectors. Front-panel buttons degauss and zero each channel, and each channel has a BNC signal output for oscilloscopes or power analyzers of any brand.

Models & Specifications

Common Specifications

Specification Value
Channels 4 (CTB***A sensors, 8-pin connector)
Output Current max. 0.6 A per channel
Signal Output BNC per channel
Input Voltage 90–264 V AC
Weight 1.5 kg

Model Comparison

Model Output Voltage (to sensors)
CTB104 ±12 V ±0.5 V
CTB104A ±14.7 V ±0.5 V

Specifications from the official Cybertek datasheet (English); use the Download Datasheet button for full details.
