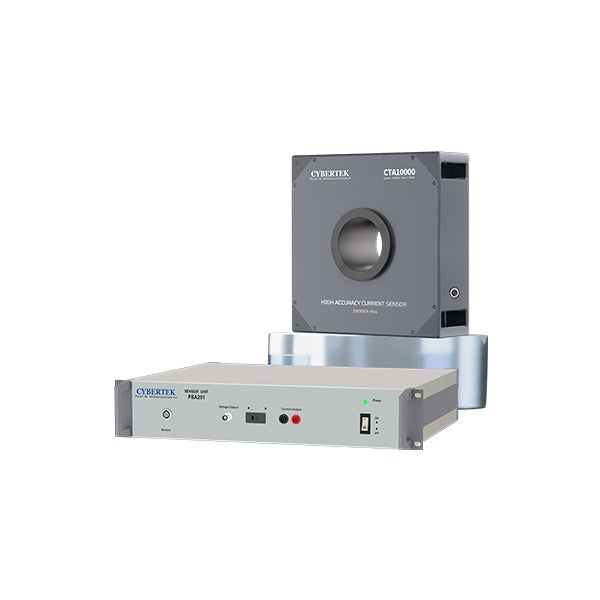

CTA Series II Ultra-High-Accuracy Fluxgate Current Sensor 5000–10000 A

Key Features

5000 A or 10000 A DC / AC
Accuracy up to 7 ppm (CTA5000) / 9 ppm (CTA10000)
Bandwidth up to 50 kHz
Switchable current or voltage output
Fluxgate technology, very low offset and drift
For calibration and high-power test systems

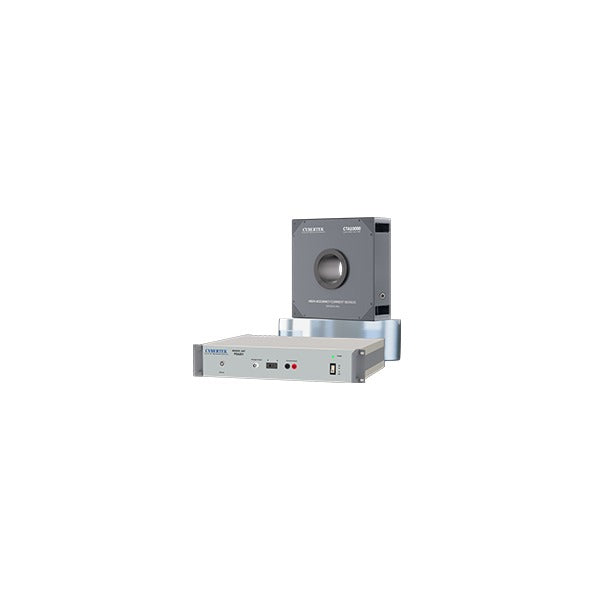

Model CTA5000 CTA10000

Download datasheet

Interested in this product?

Send us your details and we’ll get back to you with availability, pricing, and any additional information you need.

The CTA5000 and CTA10000 are ultra-high-accuracy fluxgate current transducers for very large currents. The CTA5000 measures 5000 A with accuracy up to 7 ppm and 50 kHz bandwidth; the CTA10000 measures 10000 A with accuracy up to 9 ppm and 20 kHz bandwidth.

A selector switch gives either a current output (4 mm banana sockets) or a voltage output (BNC). Fluxgate technology provides excellent linearity, very low DC offset and temperature drift, low insertion loss and strong interference immunity for industrial, medical and laboratory use.

Models & Specifications

Common Specifications

Specification	Value
Output	Switchable: current output (4 mm banana) or voltage output (BNC)

Model Comparison

Model	CTA5000	CTA10000
Rated Current (RMS)	5000 A	7070 A
Max. Current (DC / Peak)	7070 A	10000 A
Bandwidth	DC–50 kHz	DC–20 kHz
Accuracy	≤ ±7ppm f.s.	≤ ±9ppm f.s.
Current Transfer Ratio	1:2500	1:5000
