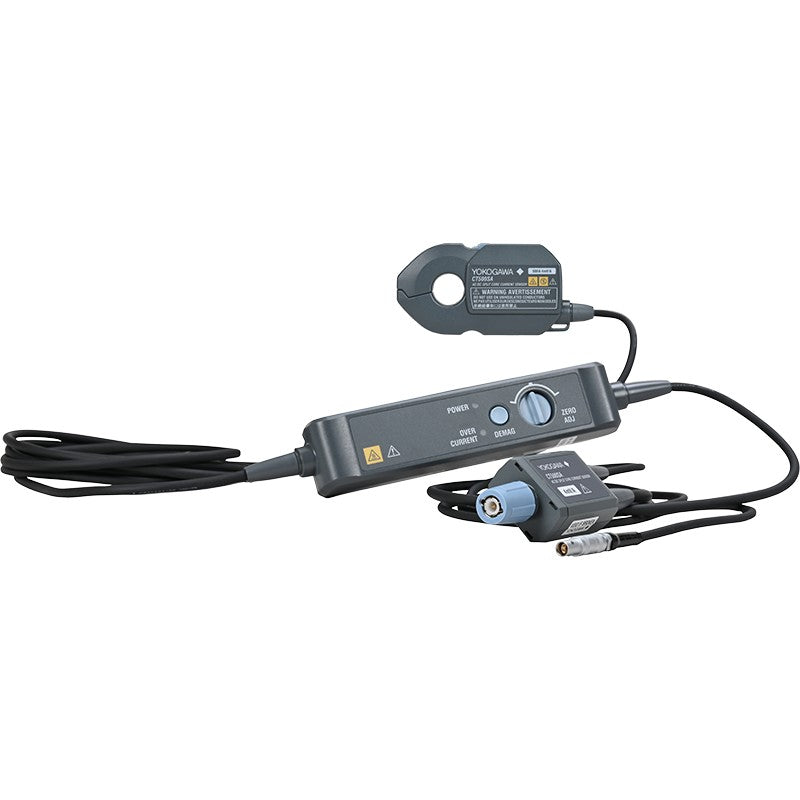

CT500SA / CT200SA AC/DC Split Core Current Sensor

Key Features

500 A and 200 A AC/DC, split core, 20 mm aperture
Basic accuracy ±(0.09% of reading + 0.01% of full scale) at 23 ±5 °C
Bandwidth DC to 500 kHz (CT500SA) or DC to 1 MHz (CT200SA)
Voltage output, 4 mV/A or 10 mV/A, BNC
±12 V supply, for power analyzers and waveform instruments

Model CT500SA CT200SA

Download datasheet

Interested in this product?

Send us your details and we’ll get back to you with availability, pricing, and any additional information you need.

Compact split-core fluxgate current sensors for 500 A and 200 A. They clamp onto an existing conductor and combine power-analyzer accuracy with enough bandwidth for waveform instruments. Voltage output on a BNC connector works with WT series and PX8000 power analyzers and with ScopeCorders and DLM oscilloscopes.

Models & Specifications

Common Specifications

Specification	Value
Output resistance	50 Ω ±10 Ω
Supply	±12 V
Connector	BNC
Main unit dimensions	110 × 62 × 25 mm
Operating temperature	Main unit −40 to 85 °C; sub unit and IV unit 5 to 40 °C
Phase accuracy	±0.1° from 0.1 Hz to 1 kHz
Accuracy warranty	12 months

Model Comparison

Specification	CT500SA	CT200SA
Rated current	500 A AC/DC	200 A AC/DC
Bandwidth (−3 dB)	DC to 500 kHz, typical	DC to 1 MHz, typical
Output	4 mV/A, BNC	10 mV/A, BNC
Delay	130 ns typical	78 ns typical
Supply current	0.8 A maximum	0.7 A maximum
Aperture	20 mm	20 mm
