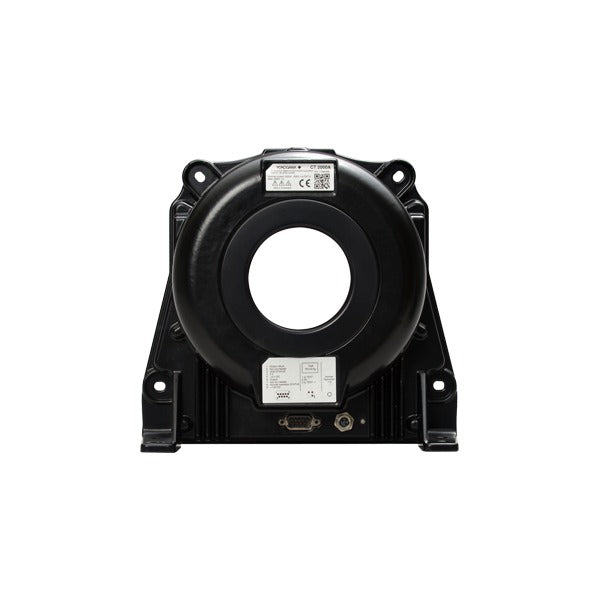

CT2000A AC/DC Current Sensor
Interested in this product?
Send us your details and we’ll get back to you with availability, pricing, and any additional information you need.
Through-hole AC/DC current sensor for the largest currents on a WT series power analyzer or PX8000. It measures 0 to 2000 A DC and 2000 A rms (3000 A peak) AC, with basic accuracy of ±(0.05% of reading + 30 µA) and bandwidth from DC to 40 kHz.
When several CT2000A sensors are powered from the WT1800E or PX8000 /PD2 option, keep the total supply current within 6 A (WT1800E, channels 1 to 6) or 4 A (PX8000, channels 1 to 4).
Models & Specifications
| Specification | CT2000A |
|---|---|
| DC current | 0 to 2000 A |
| AC current | 2000 A rms (3000 A peak) |
| Bandwidth (−3 dB) | DC to 40 kHz |
| Basic accuracy | ±(0.05% of reading + 30 µA) |
| Transformation ratio | 2000:1 |
| Output at rated current | 1 A at 2000 A |
| Continuous maximum input | 3000 A peak |
| Instantaneous maximum | 10000 A peak, 0.1 s |
| Load resistance | 0 to 1 Ω |
| Aperture | 70 mm |
| Supply | ±(15 V ±5%) |
| Output connector | D-sub 9-pin |
| Operating temperature | −40 to 85 °C |
| Maximum rated voltage | 1000 V rms, CAT III |
| Dimensions | 230 × 220 × 76 mm |
| Weight | Approx. 4.2 kg |
| Maximum rated power | 35 VA |
Specifications from the official Yokogawa user’s manual IM CT2000A-01EN. Use the Download Datasheet button for the full document.
