CT2 36A 200MHz

CT2 Current Probes

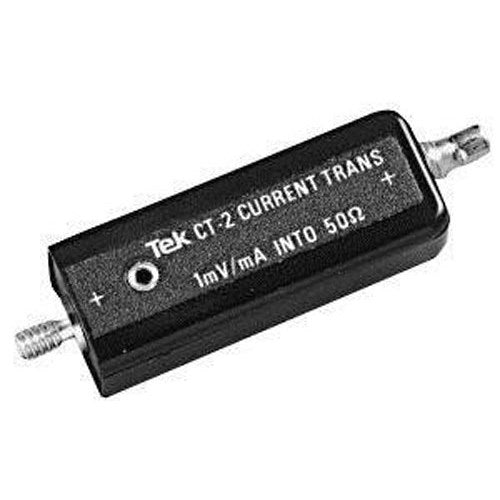

The CT1 and CT2 Current Probes are designed for permanent or
semi-permanent in-circuit installation. Each probe consists of a current
transformer and an interconnecting cable. The current transformers
have a small hole through which a current carrying conductor is passed
during circuit assembly.
The P6041 Probe Cable provides the connection between the CT1
and CT2 Current Transformers and a BNC oscilloscope input. A 50
Ω termination is required to terminate the cable when connected to a
high-impedance (1 MΩ) oscilloscope input. One probe cable can be
used to monitor several current transformers that have been wired into
a circuit.

Features and Benefits

• High Bandwidth
• Ultra-low Inductance
• Very Small Form Factor
• Characterize Current Waveforms up to <200 ps Rise Times
• Very Low Loading of Circuit Under Test
• Fits Into Dense, Closely-spaced Circuit Designs
