CSF Series Flat Coaxial Current Shunt 0.01–0.05 Ω, up to 1 GHz

Key Features

Ultrafast Current Shunt (UFCS) technology, bandwidth up to 1 GHz
Very small PCB footprint
For high-density SiC and GaN power designs
Resistance from 0.01 Ω to 0.05 Ω
No high-frequency insertion loss
MMCX signal output

Model CSF01-10 CSF01-20 CSF01-50 CSF02-10 CSF02-20

Download datasheet

Interested in this product?

Send us your details and we’ll get back to you with availability, pricing, and any additional information you need.

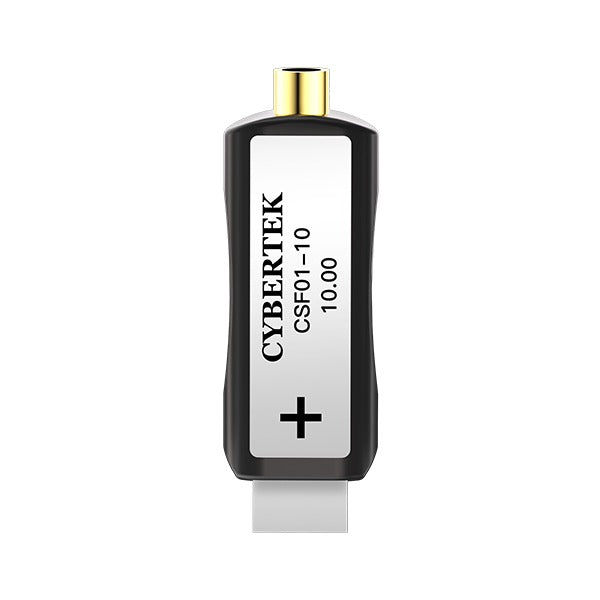

The CSF series flat coaxial current shunts are surface-soldered ultrafast shunts with a very small PCB footprint, designed for high-density SiC and GaN designs where board space is tight. Only input and output pads need to be reserved on the PCB; the shunt body is soldered directly onto them.

Bandwidths reach 1 GHz with no high-frequency insertion loss, and the signal is taken out through an MMCX connector.

Models & Specifications

Common Specifications

Specification	Value
Output Connector	MMCX (female)
Temperature Coefficient	±40 ppm/°C

Model Comparison

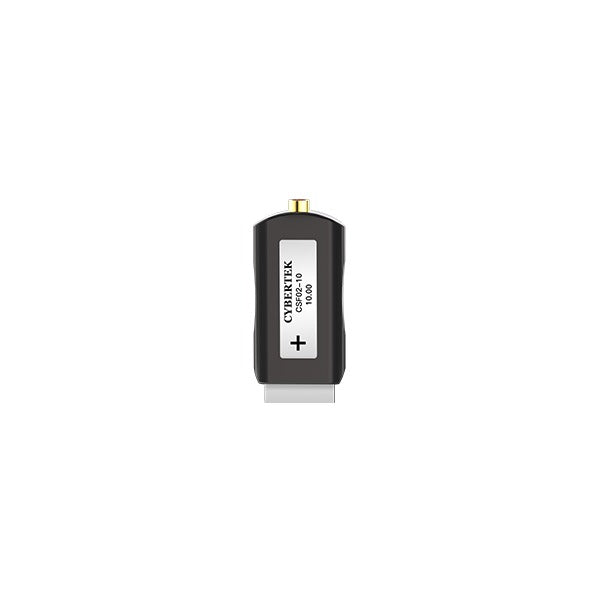

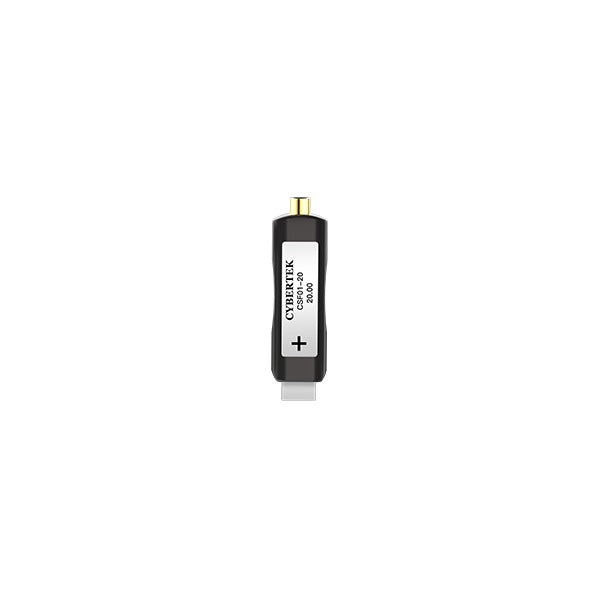

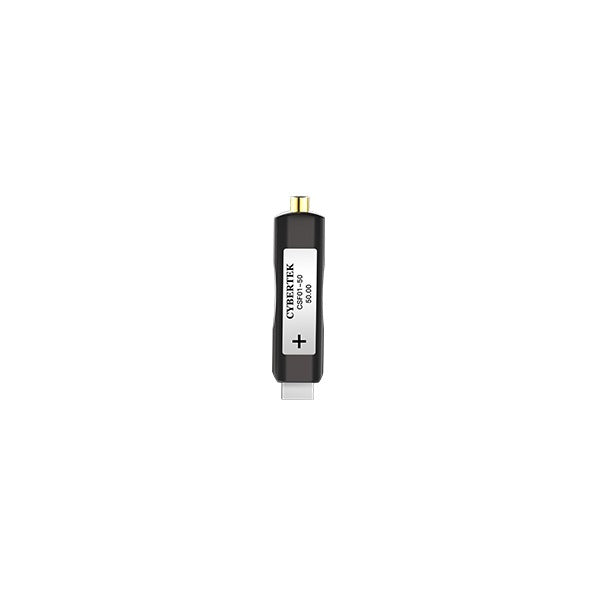

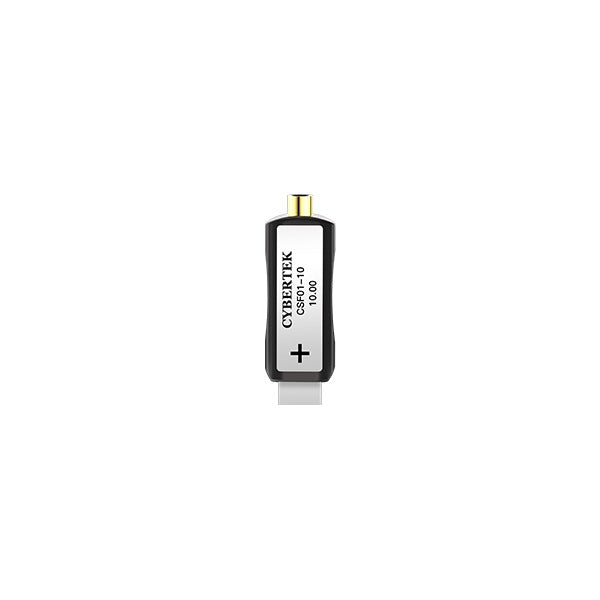

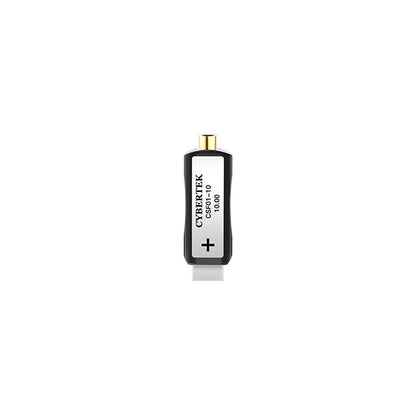

Model	CSF01-10	CSF01-20	CSF01-50	CSF02-10
Resistance	0.01 Ω	0.02 Ω	0.05 Ω	0.01 Ω
Bandwidth (–3 dB)	300 MHz	300 MHz	1 GHz	500 MHz
Rise Time	≤1170 ps	≤1170 ps	≤350 ps	≤700 ps
Max. Continuous Power	1 W	1 W	1 W	2 W
Max. Continuous Current	10 A	7 A	4.5 A	14 A
Max. Pulse Energy	2 J	2 J	2 J	4 J

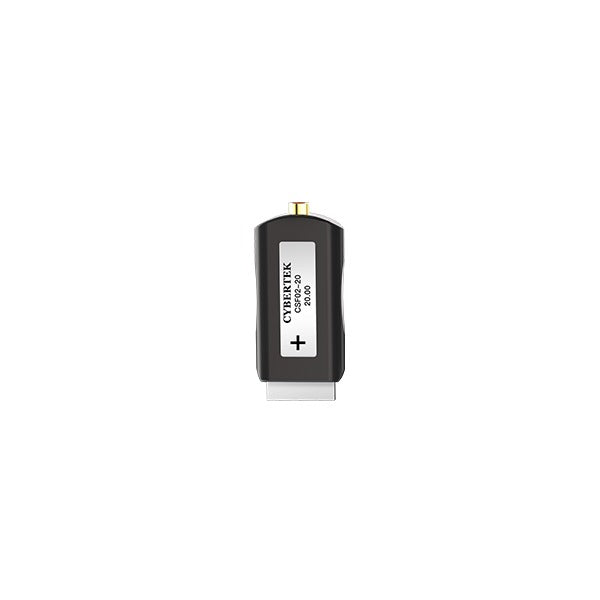

Model	CSF02-20
Resistance	0.02 Ω
Bandwidth (–3 dB)	1 GHz
Rise Time	≤350 ps
Max. Continuous Power	2 W
Max. Continuous Current	10 A
Max. Pulse Energy	4 J
