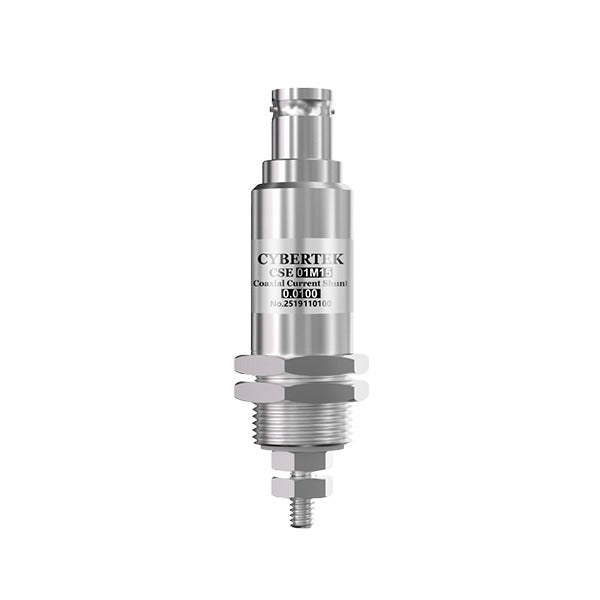

CSE Series Coaxial Current Shunt 0.005–0.05 Ω, up to 1.5 GHz

Key Features

Bandwidth up to 1.5 GHz
Withstands transient pulse energy up to 20 J for high-current measurement
No high-frequency insertion loss
Three resistance values: 0.005 Ω, 0.01 Ω and 0.05 Ω
High-reliability bolt-type mounting
For current measurement on SiC and GaN power semiconductors

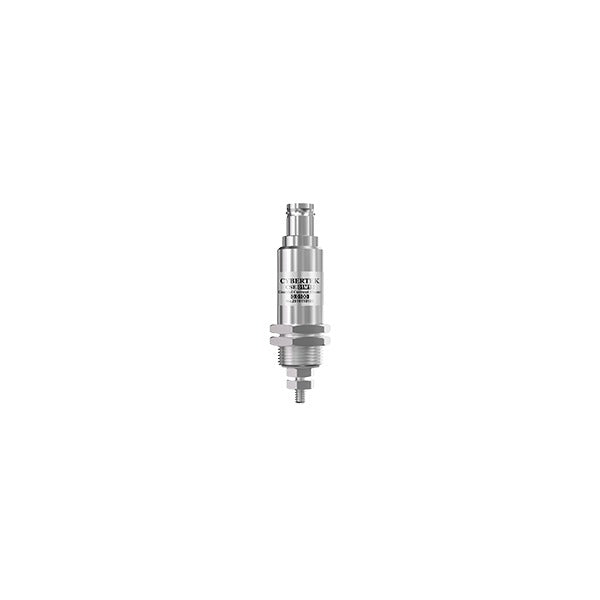

Model CSE005M15 CSE01M15 CSE050M10

Download datasheet

Interested in this product?

Send us your details and we’ll get back to you with availability, pricing, and any additional information you need.

The CSE series coaxial current shunts are high-energy bolt-type ultrafast shunts for high-current pulse measurement on SiC and GaN power stages. Their coaxial resistor design gives bandwidths up to 1.5 GHz with a flat response and withstands transient pulse energy up to 20 J.

The shunt is clamped between two circuit boards with two sets of nuts and connects to the oscilloscope through a BNC output (50 Ω input impedance).

Models & Specifications

Common Specifications

Specification	Value
Mounting	Bolt type (two-nut, board-to-board)
Output Connector	BNC (50 Ω)

Model Comparison

Model	CSE005M15	CSE01M15	CSE050M10
Resistance	0.005 Ω	0.01 Ω	0.05 Ω
Bandwidth (–3 dB)	1.5 GHz	1.5 GHz	1 GHz
Rise Time	≤233 ps	≤233 ps	≤350 ps
Max. Continuous Power	4 W	4 W	5 W
Max. Continuous Current*	25 A	20 A	10 A
Max. Pulse Energy	15 J	16 J	20 J

* Max. continuous current is calculated from the rated continuous power and resistance (I = √(P/R)) and rounded down; it is not a separately published rating.

Specifications from the official Cybertek datasheet (Chinese); use the Download Datasheet button for full details.
