CSD Series Ultrafast Coaxial Current Shunt 0.005–0.2 Ω, up to 2 GHz
Interested in this product?
Send us your details and we’ll get back to you with availability, pricing, and any additional information you need.
The CSD series ultrafast coaxial current shunts (UFCS) are pure-resistor coaxial shunts for measuring fast pulsed currents in SiC and GaN power circuits, where iron-core current probes suffer heating and loss. The coaxial resistor structure keeps stray inductance extremely low, giving bandwidths up to 2 GHz and rise times down to 175 ps with a flat, distortion-free response.

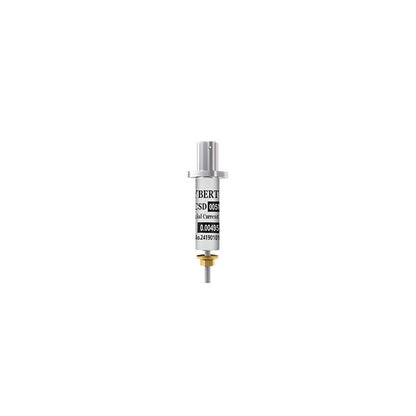

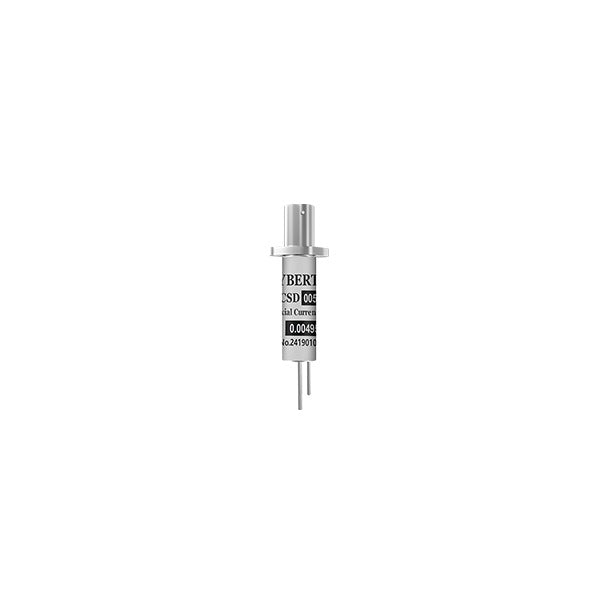

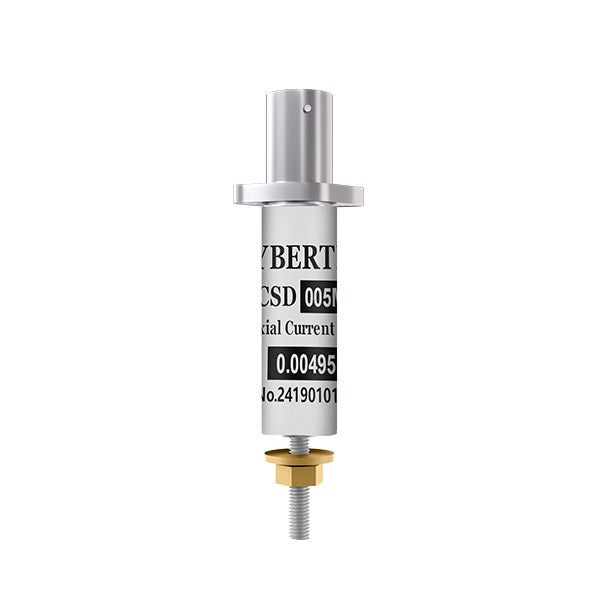

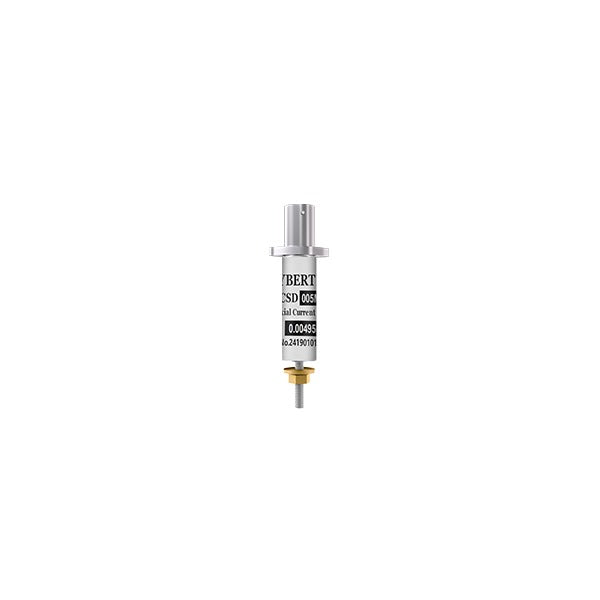

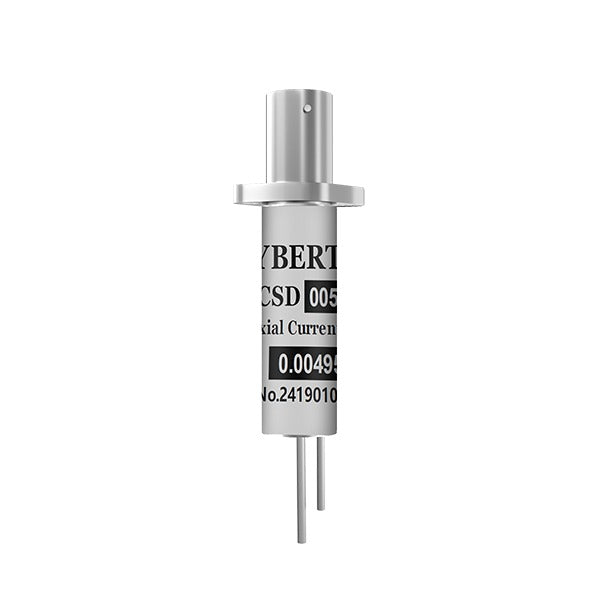

Two mounting styles share the same resistance values: the CSD***B wire type is soldered to the PCB through two pins, while the CSD***M bolt type is fixed with a single nut so it can be installed and removed repeatedly. Connect the BNC output to an oscilloscope channel set to 50 Ω input impedance.
Models & Specifications
Common Specifications
| Specification | Value |
|---|---|
| Output Connector | BNC (50 Ω) |
Model Comparison
| Model | CSD005B10 | CSD01B20 | CSD02B20 | CSD050B12 |
|---|---|---|---|---|
| Mounting | Wire type (solder pins) | Wire type (solder pins) | Wire type (solder pins) | Wire type (solder pins) |
| Resistance | 0.005 Ω | 0.01 Ω | 0.02 Ω | 0.05 Ω |
| Bandwidth (–3 dB) | 1 GHz | 2 GHz | 2 GHz | 1.2 GHz |
| Rise Time | ≤350 ps | ≤175 ps | ≤175 ps | ≤300 ps |
| Max. Continuous Power | 2 W | 2 W | 2 W | 2 W |
| Max. Continuous Current* | 20 A | 14 A | 10 A | 6 A |
| Max. Pulse Energy | 5 J | 4 J | 4 J | 6 J |
| Model | CSD100B06 | CSD200B04 | CSD005M10 | CSD01M20 |
|---|---|---|---|---|
| Mounting | Wire type (solder pins) | Wire type (solder pins) | Bolt type (single-nut) | Bolt type (single-nut) |
| Resistance | 0.1 Ω | 0.2 Ω | 0.005 Ω | 0.01 Ω |
| Bandwidth (–3 dB) | 600 MHz | 400 MHz | 1 GHz | 2 GHz |
| Rise Time | ≤600 ps | ≤875 ps | ≤350 ps | ≤175 ps |
| Max. Continuous Power | 2 W | 3 W | 2 W | 2 W |
| Max. Continuous Current* | 4 A | 3.5 A | 20 A | 14 A |
| Max. Pulse Energy | 8 J | 10 J | 5 J | 4 J |
| Model | CSD02M20 | CSD050M12 | CSD100M06 | CSD200M04 |
|---|---|---|---|---|
| Mounting | Bolt type (single-nut) | Bolt type (single-nut) | Bolt type (single-nut) | Bolt type (single-nut) |
| Resistance | 0.02 Ω | 0.05 Ω | 0.1 Ω | 0.2 Ω |
| Bandwidth (–3 dB) | 2 GHz | 1.2 GHz | 600 MHz | 400 MHz |
| Rise Time | ≤175 ps | ≤300 ps | ≤600 ps | ≤875 ps |
| Max. Continuous Power | 2 W | 2 W | 2 W | 3 W |
| Max. Continuous Current* | 10 A | 6 A | 4 A | 3.5 A |
| Max. Pulse Energy | 4 J | 6 J | 8 J | 10 J |
* Max. continuous current is calculated from the rated continuous power and resistance (I = √(P/R)) and rounded down; it is not a separately published rating.
Specifications from the official Cybertek datasheet (English); use the Download Datasheet button for full details.
