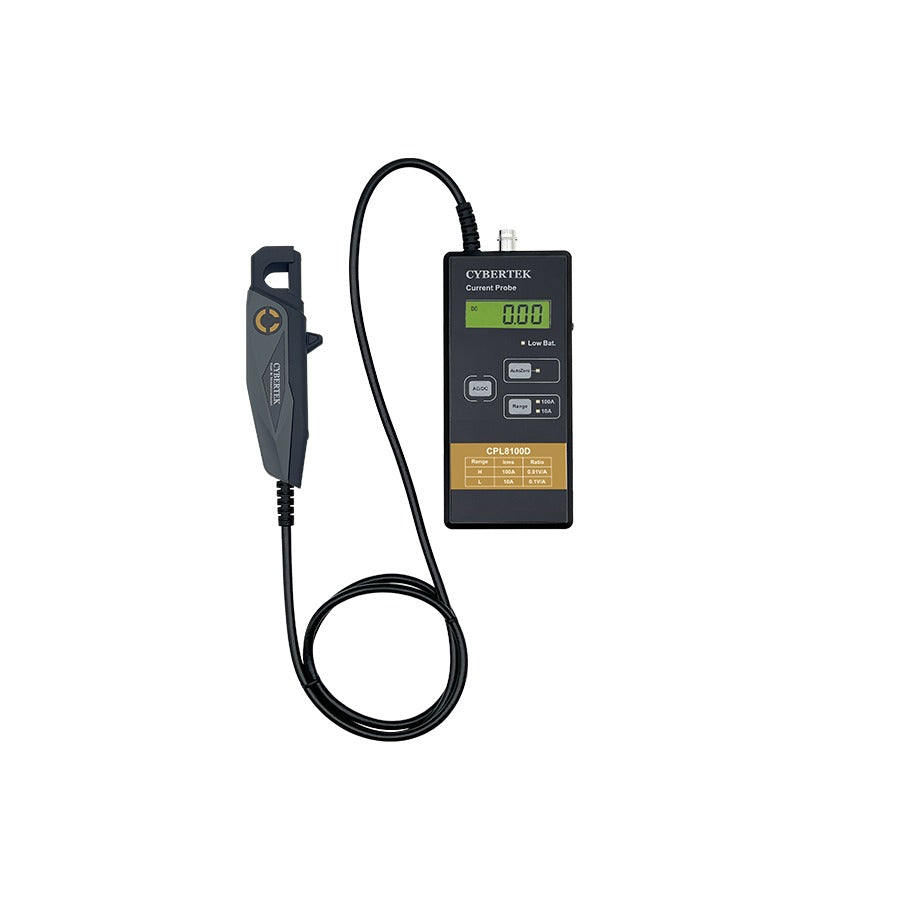

CPL8100C/D Low-Frequency AC/DC Current Probe with Display 100 A, up to 2 MHz

Key Features

  • 100 A peak / 70.7 A RMS
  • Bandwidth 600 kHz (C) or 2 MHz (D)
  • Built-in 4½-digit LCD display
  • 10 A and 100 A ranges, auto-zero
  • 12 mm clamp jaw
  • Battery and USB dual power, BNC output
Model
Download datasheet

Interested in this product?

Send us your details and we’ll get back to you with availability, pricing, and any additional information you need.

The CPL8100C and CPL8100D measure DC and AC current up to 100 A peak (70.7 A RMS) with bandwidths of 600 kHz and 2 MHz, and add a built-in 4½-digit clamp-meter display to the BNC oscilloscope output.

Two ranges (10 A and 100 A), auto-zero, low-battery indication and an overload alarm are provided, with battery and USB dual power.

Models & Specifications

Common Specifications

Specification Value
Rated Current (RMS) 70.7 A
Peak Current 100 A
Accuracy 10 A range: ±3% ±50 mA; 100 A range: ±4% ±50 mA (to 40 A peak)
Ranges 10 A / 100 A
Display 4½-digit LCD clamp-meter display
Max. Conductor Diameter 12 mm
Output Connector BNC
Safety Rating CAT I/II 600 V, CAT III 300 V
Power Supply 4 × AA batteries or USB 5 V

Model Comparison

Model Bandwidth
CPL8100C DC–600 kHz
CPL8100D DC–2 MHz

Specifications from the official Cybertek datasheet (Chinese); use the Download Datasheet button for full details.
