• CPL8100A/B Low-Frequency AC/DC Current Probe 100 A, up to 2 MHz

CPL8100A/B Low-Frequency AC/DC Current Probe 100 A, up to 2 MHz

Key Features

  • 100 A peak / 70.7 A RMS
  • Bandwidth 600 kHz (A) or 2 MHz (B)
  • 10 A and 100 A ranges
  • Auto-zero and overload alarm
  • 12 mm clamp jaw
  • Battery or external power, BNC output
Model
Download datasheet

Interested in this product?

Send us your details and we’ll get back to you with availability, pricing, and any additional information you need.

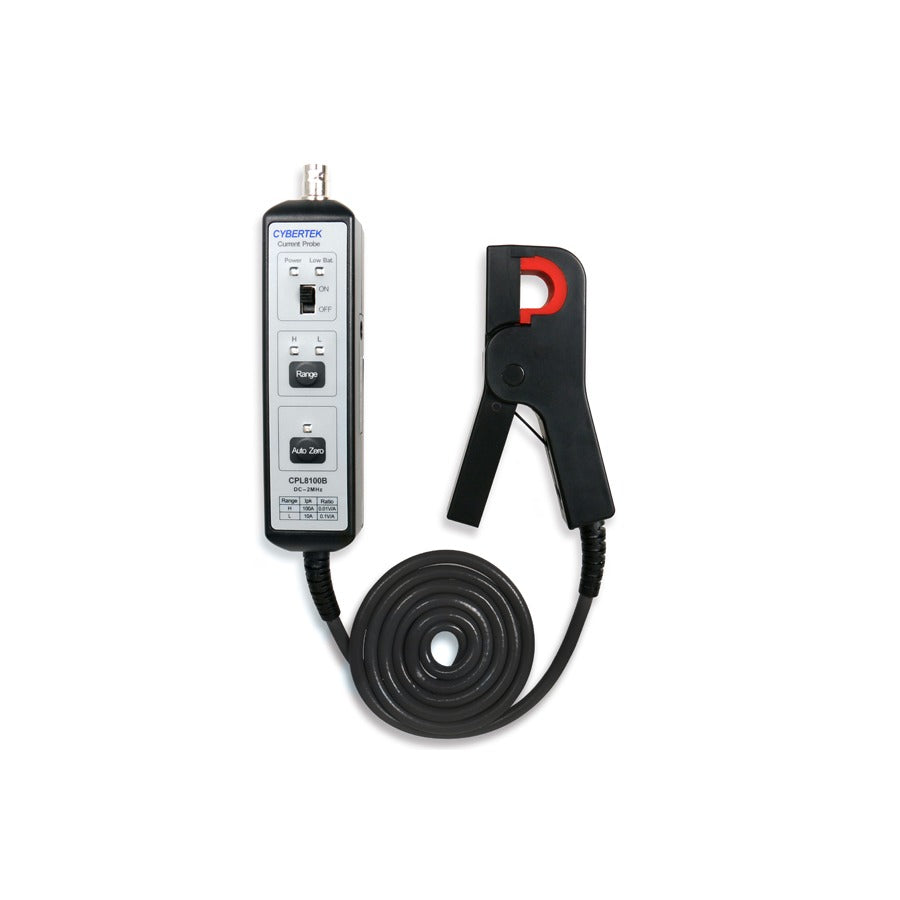

The CPL8100A and CPL8100B are compact clamp-on current probes that measure DC and AC current up to 100 A peak (70.7 A RMS). The CPL8100A has 600 kHz bandwidth and the CPL8100B 2 MHz.

Two ranges (10 A and 100 A), auto-zero, power and low-battery indicators and an overload alarm are provided. The probe runs from a battery or external supply, and the BNC output connects to oscilloscopes or, with a BNC-to-banana adapter, to multimeters.

Models & Specifications

Common Specifications

Specification Value
Rated Current (RMS) 70.7 A
Peak Current 100 A
Accuracy 10 A range: ±3% ±50 mA; 100 A range: ±4% ±50 mA (to 40 A peak)
Ranges 10 A / 100 A
Max. Conductor Diameter 12 mm
Output Connector BNC
Safety Rating CAT I/II 600 V, CAT III 300 V
Power Supply 9 V battery or external supply

Model Comparison

Model Bandwidth
CPL8100A DC–600 kHz
CPL8100B DC–2 MHz

Specifications from the official Cybertek datasheet (English); use the Download Datasheet button for full details.
