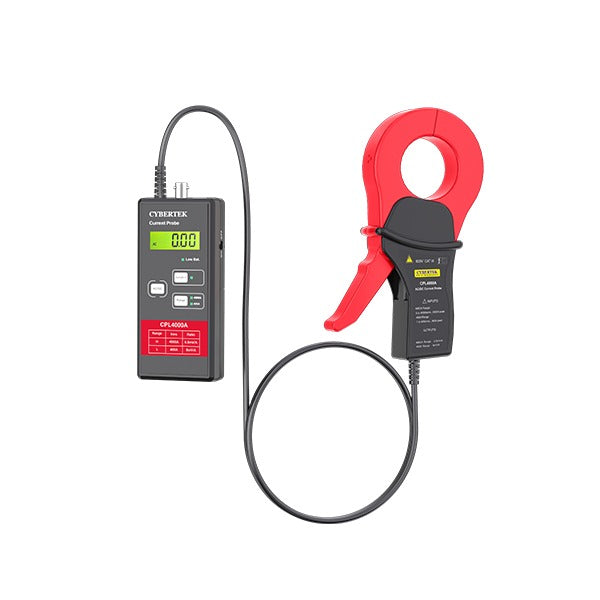

• CPL-A Series Low-Frequency AC/DC Current Probe with Display 2000–4000 A

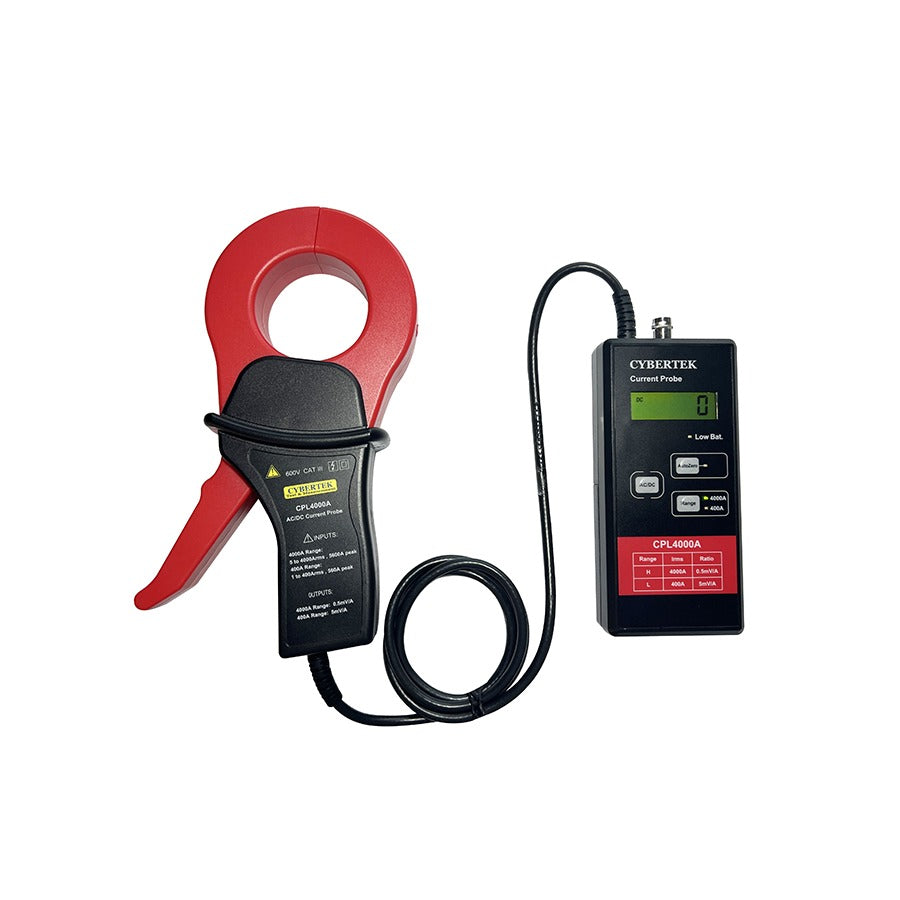

  • CPL2000A

CPL-A Series Low-Frequency AC/DC Current Probe with Display 2000–4000 A

Key Features

  • Up to 4000 A RMS / 5600 A peak
  • Bandwidth up to DC–300 kHz (CPL2000HA)
  • Built-in 4½-digit LCD clamp-meter display
  • Battery and USB dual power
  • Two switchable ranges, auto-zero
  • 54 mm clamp jaw, BNC output
Model
Download datasheet

Interested in this product?

Send us your details and we’ll get back to you with availability, pricing, and any additional information you need.

The CPL2000A, CPL2000HA and CPL4000A are low-frequency AC/DC current probes with a built-in 4½-digit clamp-meter display. They measure up to 4000 A RMS with a BNC output for oscilloscopes, while the LCD shows the true RMS value (DC–400 Hz) directly.

Battery and USB dual power, two switchable ranges, auto-zero and over-range alarm make them convenient for high-current power, inverter and motor-drive testing.

Models & Specifications

Common Specifications

Specification Value
Accuracy ±2%
Display 4½-digit LCD, True RMS (DC–400 Hz)
Max. Conductor Diameter 54 mm
Output Connector BNC
Safety Rating CAT II 600 V
Power Supply 4 × AA batteries or USB 5 V

Model Comparison

Model Rated Current (RMS) Peak Current Bandwidth Ranges
CPL2000A 2000 A 3000 A DC–10 kHz 200 A / 2000 A
CPL2000HA 2000 A 3000 A DC–300 kHz 200 A / 2000 A
CPL4000A 4000 A 5600 A DC–5 kHz 400 A / 4000 A

Specifications from the official Cybertek datasheet (Chinese); use the Download Datasheet button for full details.
