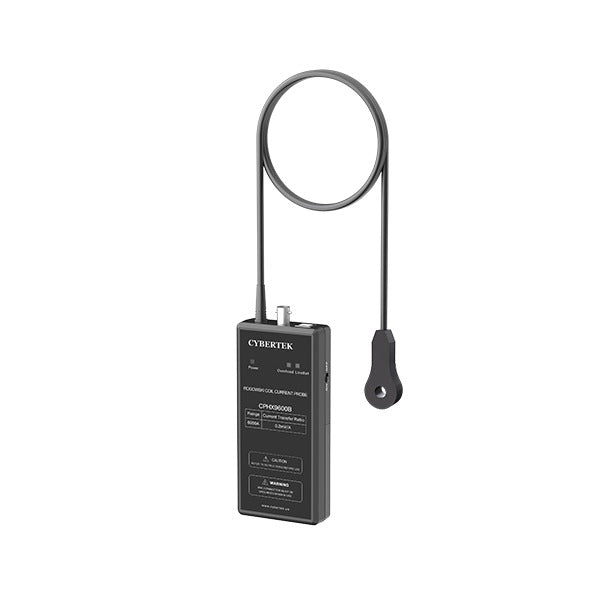

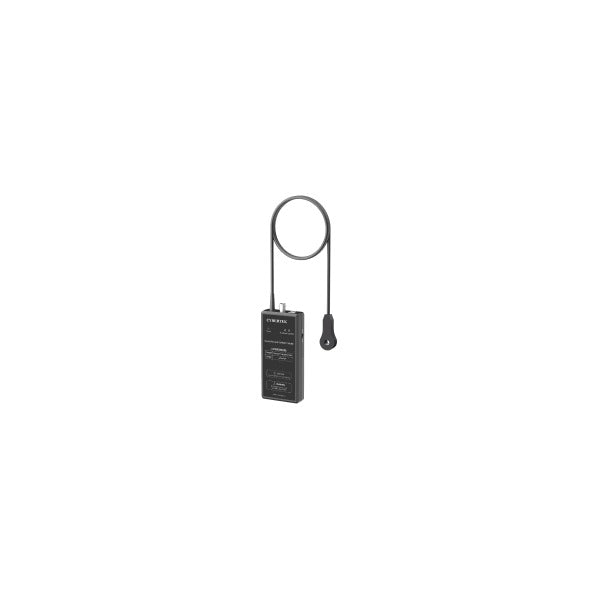

CPHX9000A/B Series Smart Rogowski Coil Current Probe 120–6000 A, up to 220 MHz
Interested in this product?
Send us your details and we’ll get back to you with availability, pricing, and any additional information you need.
The CPHX9000A/B series are battery-powered smart Rogowski coil current probes for AC current from 120 A to 6000 A peak, with bandwidth up to 100 MHz (A, 14 mm ring) or 220 MHz (B, 6 mm ring) and typical 2% accuracy.
With USB communication, the probes work with the smart probe adaptor, which sets the oscilloscope model, current type, attenuation ratio and delay automatically. The standard BNC output fits any oscilloscope or data recorder.
Models & Specifications
Common Specifications
| Specification | Value |
|---|---|
| Measurement | AC only |
| Coil Withstand Voltage | up to 1 kV peak |
| Output Connector | BNC |
| Power Supply | Battery powered |
| Smart Probe | Works with the smart probe adaptor (OT7001) |

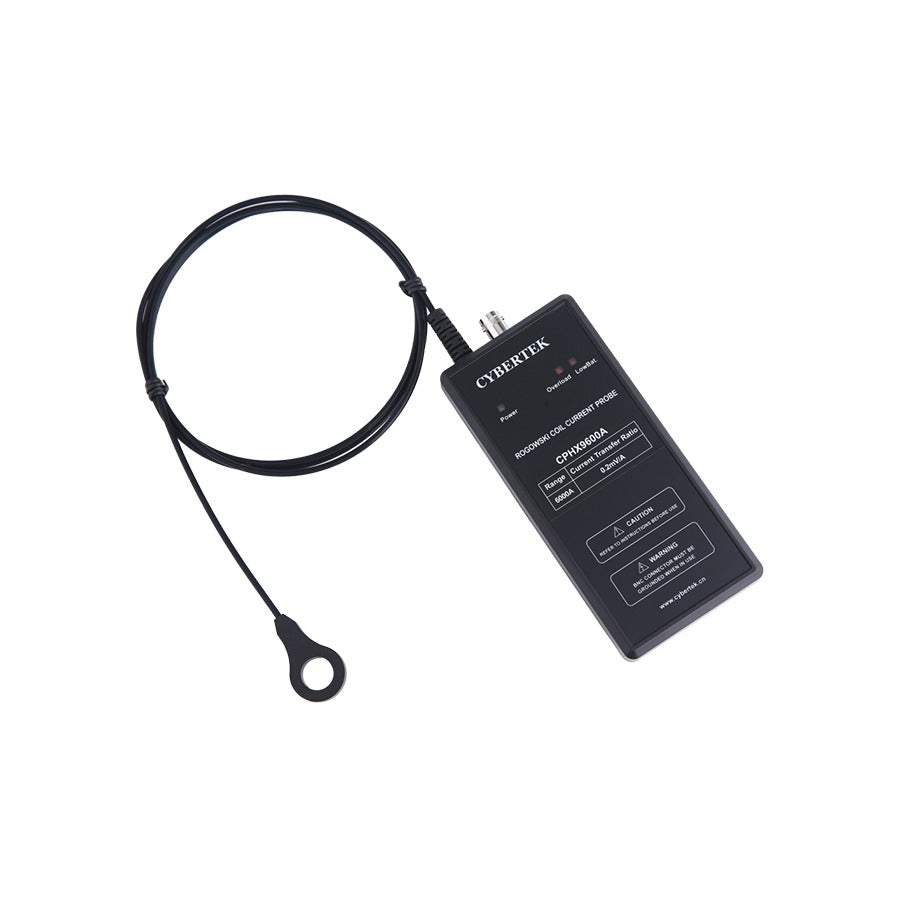

CPHX9000A (14 mm ring, up to 100 MHz)

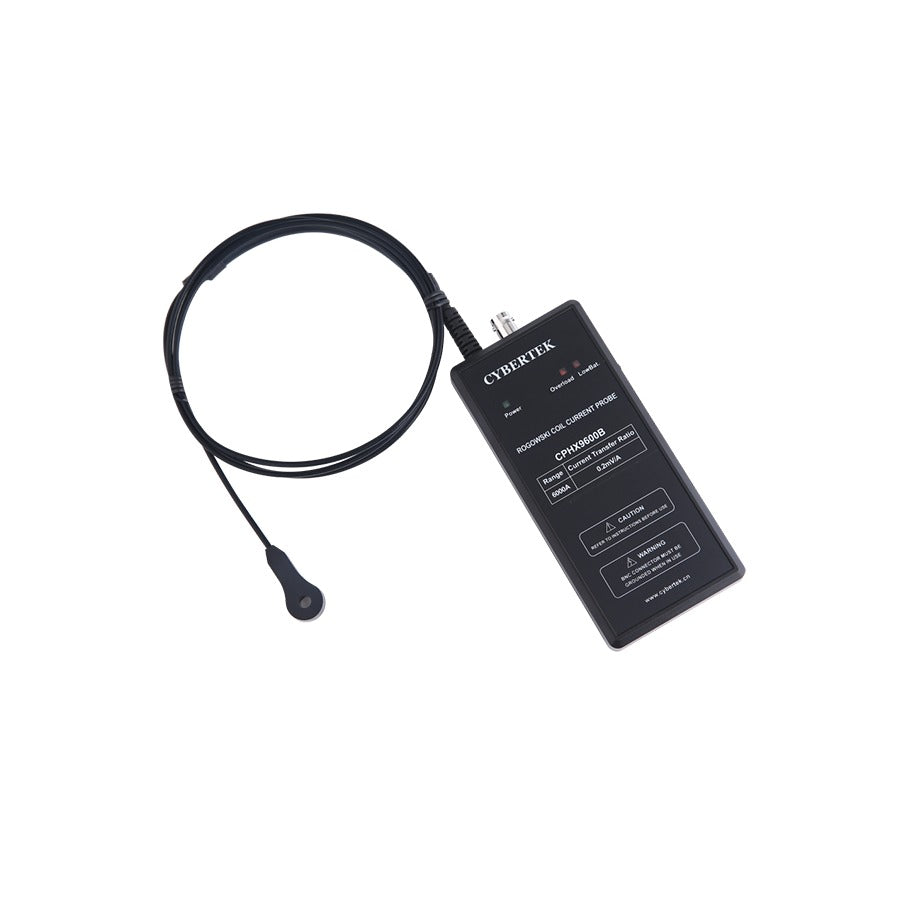

| Specification | Value |
|---|---|
| Ring Inner Diameter | 14 mm |
| Accuracy | ±2% |
| Model | Peak Current | Bandwidth |
|---|---|---|
| CPHX9012A | 120 A | 65 Hz–100 MHz |
| CPHX9030A | 300 A | 32 Hz–100 MHz |
| CPHX9060A | 600 A | 15 Hz–100 MHz |
| CPHX9120A | 1200 A | 7.2 Hz–100 MHz |
| CPHX9300A | 3000 A | 3.5 Hz–100 MHz |
| CPHX9600A | 6000 A | 1.5 Hz–100 MHz |
CPHX9000B (6 mm ring, up to 220 MHz)
| Specification | Value |
|---|---|
| Ring Inner Diameter | 6 mm |
| Accuracy | ±2% |
| Model | Peak Current | Bandwidth |
|---|---|---|
| CPHX9012B | 120 A | 65 Hz–220 MHz |
| CPHX9030B | 300 A | 32 Hz–220 MHz |
| CPHX9060B | 600 A | 15 Hz–220 MHz |
| CPHX9120B | 1200 A | 7.2 Hz–220 MHz |
| CPHX9300B | 3000 A | 3.5 Hz–220 MHz |
| CPHX9600B | 6000 A | 1.5 Hz–220 MHz |
Specifications from the official Cybertek datasheet (English); use the Download Datasheet button for full details.
