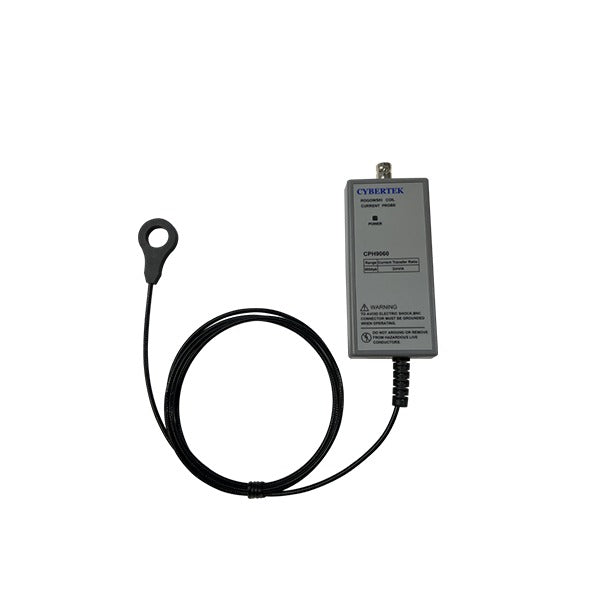

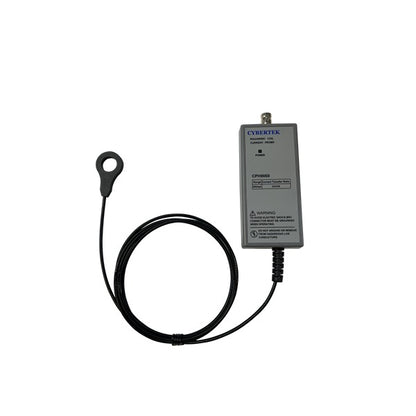

CPH9000 Series Rogowski Coil High-Frequency Current Probe 120–600 A, 100 MHz
Interested in this product?
Send us your details and we’ll get back to you with availability, pricing, and any additional information you need.
The CPH9000 series Rogowski coil current probes measure AC current with up to 100 MHz bandwidth and typical 2% accuracy, ideal for IGBT and MOSFET switching current, harmonic content and high-frequency sinusoidal currents.
A small 14 mm coil, USB power and a standard BNC output make it easy to use with oscilloscopes and data recorders; coil and cable length can be customized.
Models & Specifications
Common Specifications
| Specification | Value |
|---|---|
| Ring Inner Diameter | 14 mm |
| Accuracy | ±2% |
| Measurement | AC only |
| Output Connector | BNC |
| Power Supply | USB |
Model Comparison
| Model | Peak Current | Bandwidth |
|---|---|---|

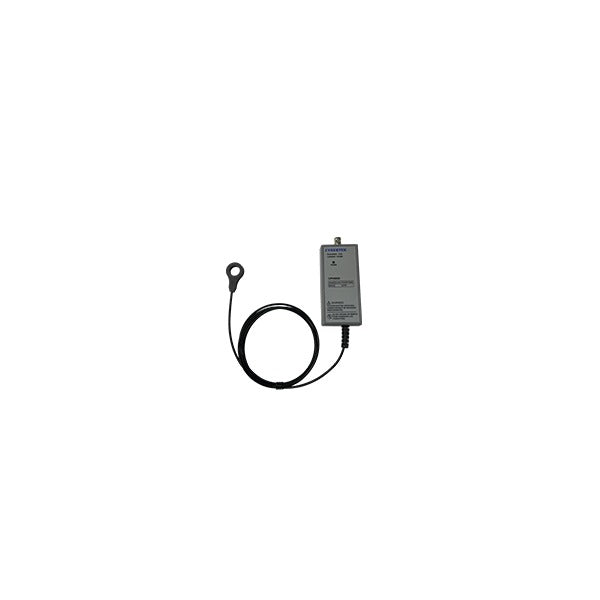

| CPH9012 | 120 A | 65 Hz–100 MHz |
| CPH9030 | 300 A | 32 Hz–100 MHz |
| CPH9060 | 600 A | 15 Hz–100 MHz |
Specifications from the official Cybertek datasheet (Chinese); use the Download Datasheet button for full details.
