CPF1000 Series Ultra-Wideband AC Passive Current Probe, up to 1 GHz
Interested in this product?
Send us your details and we’ll get back to you with availability, pricing, and any additional information you need.

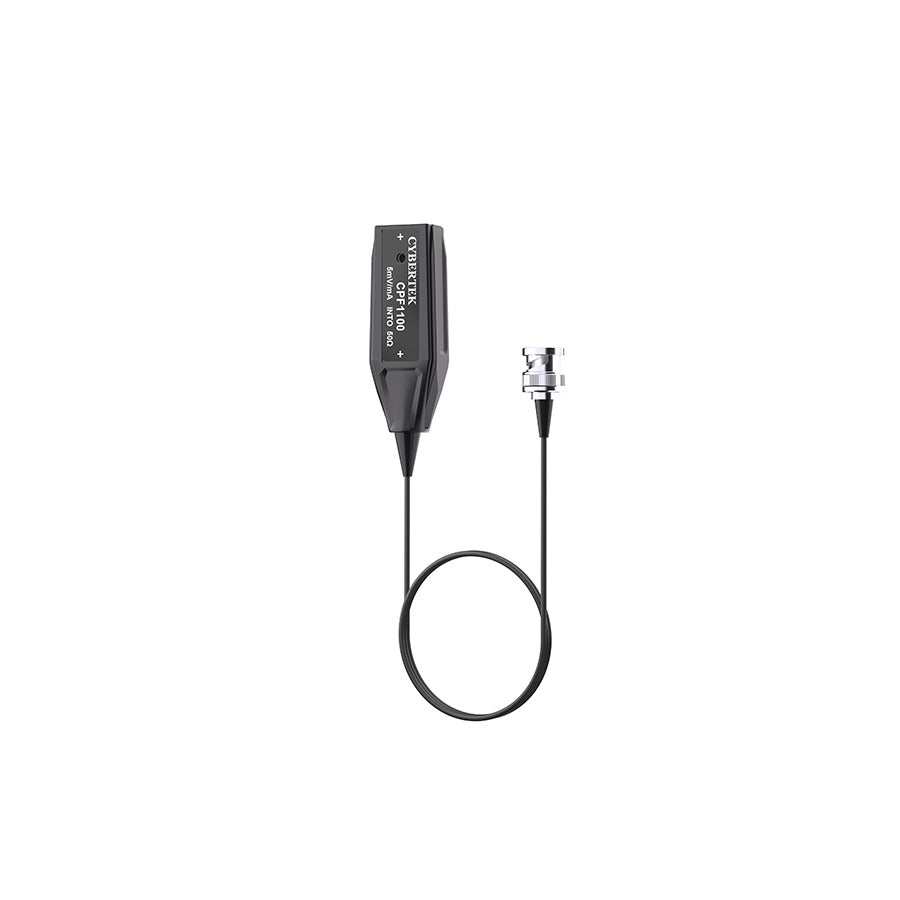

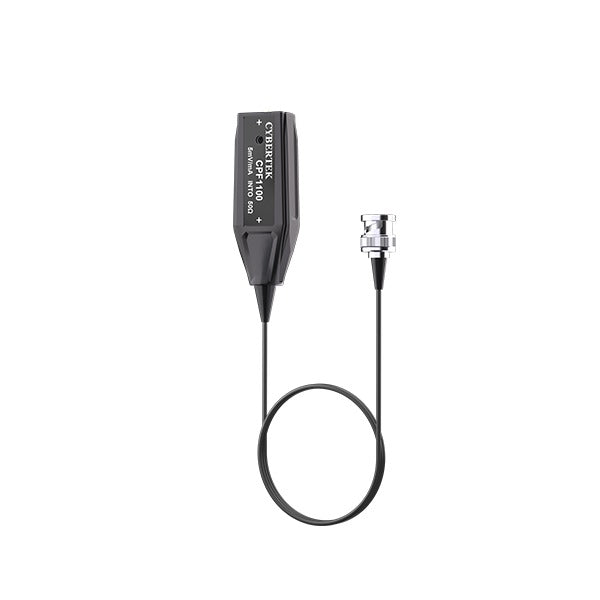

The CPF1000 series are ultra-wideband passive AC current probes for very fast current edges, such as gate-drive, ESD and high-speed pulse currents. The CPF1100 reaches 25 kHz–1 GHz and has captured rising edges as fast as 339 ps; the CPF1020 covers 1.2 kHz–200 MHz with a higher current rating.
The tiny probe body (1.5 mm aperture) fits around component leads on dense boards and connects to a 50 Ω oscilloscope input through an SMB cable.
Models & Specifications
Common Specifications
| Specification | Value |
|---|---|
| Accuracy | ±3% |
| Termination | 50 Ω |
| Aperture | 1.5 mm |
| Output Connector | SMB |
| Size | 52 × 18.5 × 11 mm |
| Weight | approx. 20 g |
Model Comparison
| Model | CPF1100 | CPF1020 |
|---|---|---|
| Max. Continuous Current | 0.5 A | 2.5 A |
| Max. Pulse Current | 12 A | 36 A |
| Bandwidth | 25 kHz–1 GHz | 1.2 kHz–200 MHz |
| Sensitivity | 5 mV/mA | 1 mV/mA |
| Ampere-Second Product | 1 A·µs | 50 A·µs |
| Delay (incl. cable) | 5.8 ns | 5.7 ns |
Specifications from the official Cybertek datasheet (Chinese); use the Download Datasheet button for full details.
