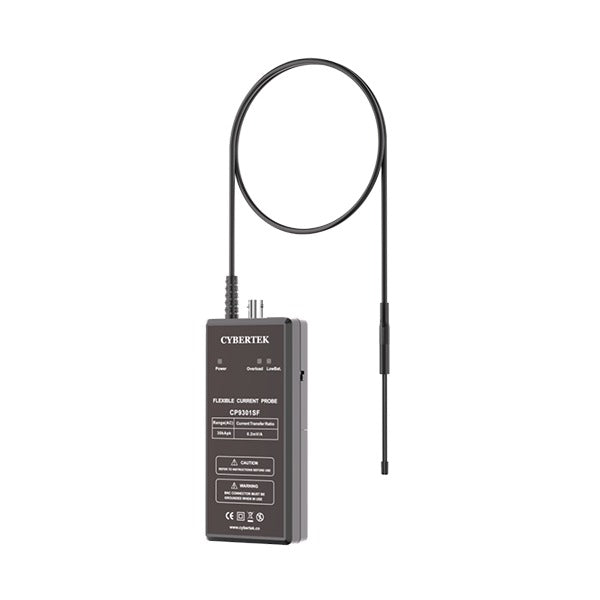

CP9000SF Series Fork-Type Flexible Current Probe 60 A–30 kA, 100 MHz

Key Features

Fork-shaped head for fast hook-on
Bandwidth up to 100 MHz
Peak current from 60 A to 30 kA
Typical accuracy 2%
Near-zero insertion loss
BNC output; ring size customizable

Model CP9006SF CP9012SF CP9030SF CP9060SF CP9120SF CP9300SF CP9600SF CP9121SF CP9301SF

Download datasheet

Interested in this product?

Send us your details and we’ll get back to you with availability, pricing, and any additional information you need.

The CP9000SF series fork-type flexible current probes combine a Rogowski coil with a fork-shaped probe head, so the coil can be slipped around device pins and busbars quickly. Bandwidth reaches 100 MHz with typical 2% accuracy, and ranges run from 60 A to 30 kA peak.

The standard ring is 50 mm and can be customized.

Models & Specifications

Common Specifications

Specification	Value
Coil Ring Diameter (typ., customizable)	50 mm
Accuracy	±2%
Measurement	AC only
Output Connector	BNC

Model Comparison

Model	Peak Current	Bandwidth

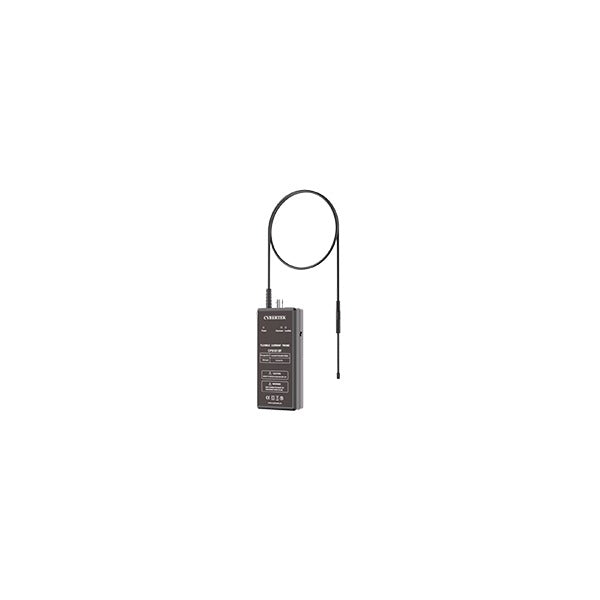

CP9006SF	60 A	150 Hz–100 MHz
CP9012SF	120 A	100 Hz–100 MHz
CP9030SF	300 A	50 Hz–100 MHz
CP9060SF	600 A	20 Hz–100 MHz
CP9120SF	1200 A	10 Hz–100 MHz
CP9300SF	3000 A	5 Hz–100 MHz
CP9600SF	6000 A	2.6 Hz–100 MHz
CP9121SF	12000 A	1.2 Hz–100 MHz
CP9301SF	30000 A	1.2 Hz–100 MHz
