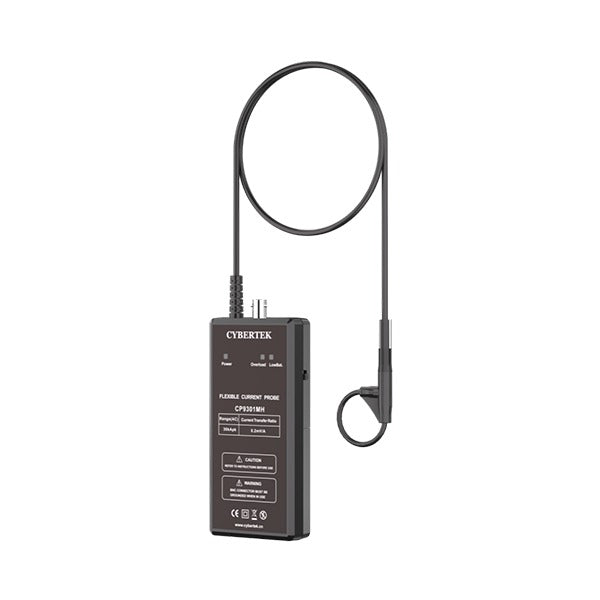

CP9000MH Series Flexible Current Probe 30 A–30 kA, 50 MHz
Interested in this product?
Send us your details and we’ll get back to you with availability, pricing, and any additional information you need.
The CP9000MH series flexible current probes (Rogowski coils) offer 50 MHz bandwidth with a 100 mm standard ring and typical 2% accuracy, for AC currents from 30 A to 30 kA peak.
The flexible coil wraps around conductors in tight spaces with almost zero insertion loss; ring size can be customized.
Models & Specifications
Common Specifications
| Specification | Value |
|---|---|
| Coil Ring Size (typ., customizable) | 100 mm |
| Accuracy | ±2% |
| Measurement | AC only |
| Output Connector | BNC |
Model Comparison
| Model | Peak Current | Bandwidth |
|---|---|---|

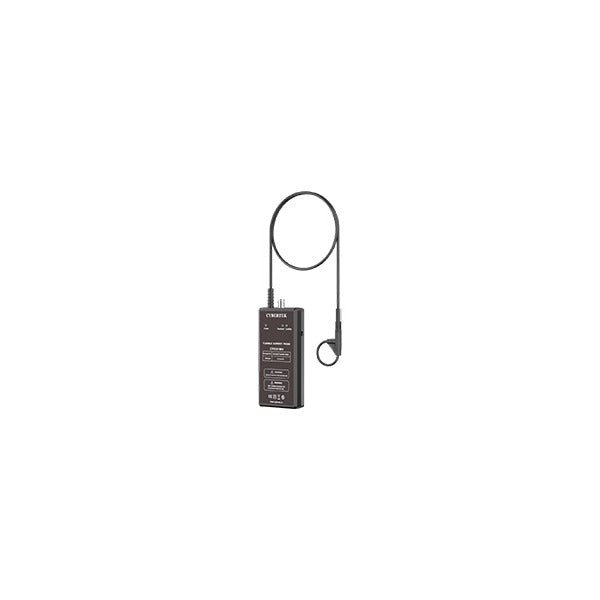

| CP9003MH | 30 A | 150 Hz–50 MHz |
| CP9006MH | 60 A | 100 Hz–50 MHz |
| CP9012MH | 120 A | 75 Hz–50 MHz |
| CP9030MH | 300 A | 50 Hz–50 MHz |
| CP9060MH | 600 A | 12 Hz–50 MHz |
| CP9120MH | 1200 A | 6 Hz–50 MHz |
| CP9300MH | 3000 A | 3 Hz–50 MHz |
| CP9600MH | 6000 A | 1.5 Hz–50 MHz |
| CP9301MH | 30000 A | 1 Hz–50 MHz |
| CP9121MH | 12000 A | 1 Hz–50 MHz |
Specifications from the official Cybertek datasheet (Chinese); use the Download Datasheet button for full details.
