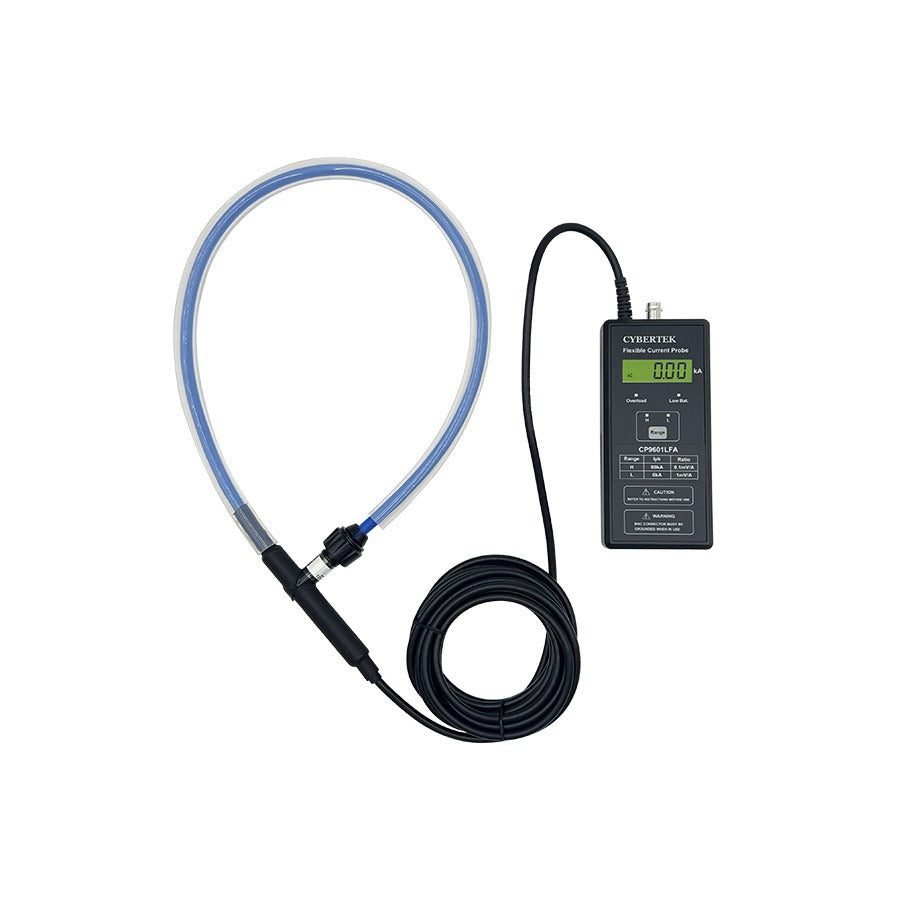

CP9000LFA Series Low-Frequency Flexible Current Probe with Display 60 A–120 kA

Key Features

Built-in digital display
Dual ranges per model, 60 A to 120 kA
Low-frequency limit down to 0.07 Hz
Bandwidth up to 1 MHz (300 mm loop)
Accuracy 1%
BNC output

Model CP9060LFA CP9120LFA CP9300LFA CP9600LFA CP9121LFA CP9301LFA CP9601LFA CP9122LFA

Download datasheet

Interested in this product?

Send us your details and we’ll get back to you with availability, pricing, and any additional information you need.

The CP9000LFA series are dual-range low-frequency flexible current probes with a built-in digital display, covering 60 A to 120 kA with 1% accuracy. Bandwidth reaches 600 kHz with a 700 mm loop or 1 MHz with a 300 mm loop, with a low-frequency limit down to 0.07 Hz.

The display shows the measured current directly, while the BNC output feeds an oscilloscope or recorder.

Models & Specifications

Common Specifications

Specification	Value
Accuracy	±1%
Display	Built-in digital display
Output Connector	BNC

Model Comparison

Model	Ranges	Bandwidth (700 mm ring)	Bandwidth (300 mm ring)
CP9060LFA	60 A / 600 A	0.45 Hz–600 kHz	0.45 Hz–1 MHz
CP9120LFA	120 A / 1200 A	0.23 Hz–600 kHz	0.23 Hz–1 MHz
CP9300LFA	300 A / 3000 A	0.15 Hz–600 kHz	0.15 Hz–1 MHz
CP9600LFA	600 A / 6000 A	0.1 Hz–600 kHz	0.1 Hz–1 MHz
CP9121LFA	1200 A / 12000 A	0.08 Hz–600 kHz	0.08 Hz–1 MHz
CP9301LFA	3000 A / 30000 A	0.07 Hz–600 kHz	0.07 Hz–1 MHz
CP9601LFA	6000 A / 60000 A	0.07 Hz–600 kHz	0.07 Hz–1 MHz
CP9122LFA	12000 A / 120000 A	0.07 Hz–600 kHz	0.07 Hz–1 MHz
