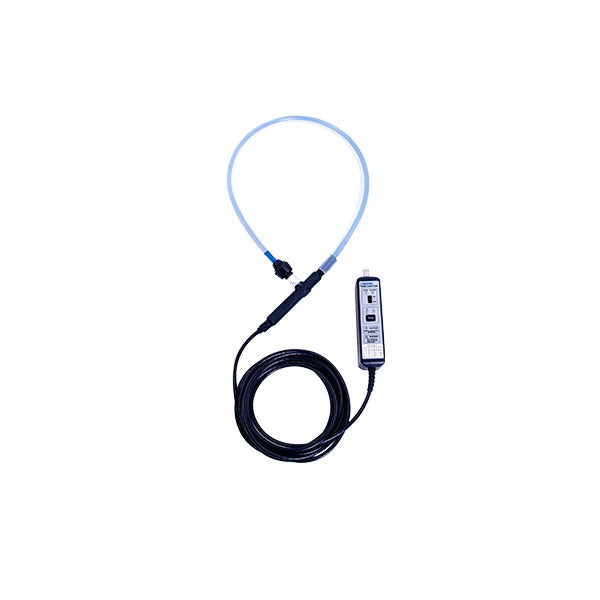

CP9000LF Series Low-Frequency Flexible Current Probe 60 A–120 kA

Key Features

Dual ranges per model, 60 A to 120 kA
Low-frequency limit down to 0.07 Hz
Bandwidth up to 600 kHz (700 mm) / 1 MHz (300 mm)
Accuracy 1% within the loop
10 kV peak coil withstand voltage
Near-zero insertion loss, BNC output

Model CP9060LF CP9120LF CP9300LF CP9600LF CP9121LF CP9301LF CP9601LF CP9122LF

Download datasheet

Interested in this product?

Send us your details and we’ll get back to you with availability, pricing, and any additional information you need.

The CP9000LF series are low-frequency flexible current probes with a dual-range design, covering 60 A to 120 kA. Guaranteed accuracy within the loop is 1%, and bandwidth reaches 600 kHz with a 700 mm loop or 1 MHz with a 300 mm loop, with a low-frequency limit down to 0.07 Hz.

The 8 mm coil withstands 10 kV peak, making the CP9000LF well suited to large, low-frequency currents in power, traction and grid applications.

Models & Specifications

Common Specifications

Specification	Value
Accuracy	±1%
Coil Outer Diameter	8 mm (typ.)
Withstand Voltage	10 kV peak
Output Connector	BNC

Model Comparison

Model	Ranges	Bandwidth (700 mm ring)	Bandwidth (300 mm ring)

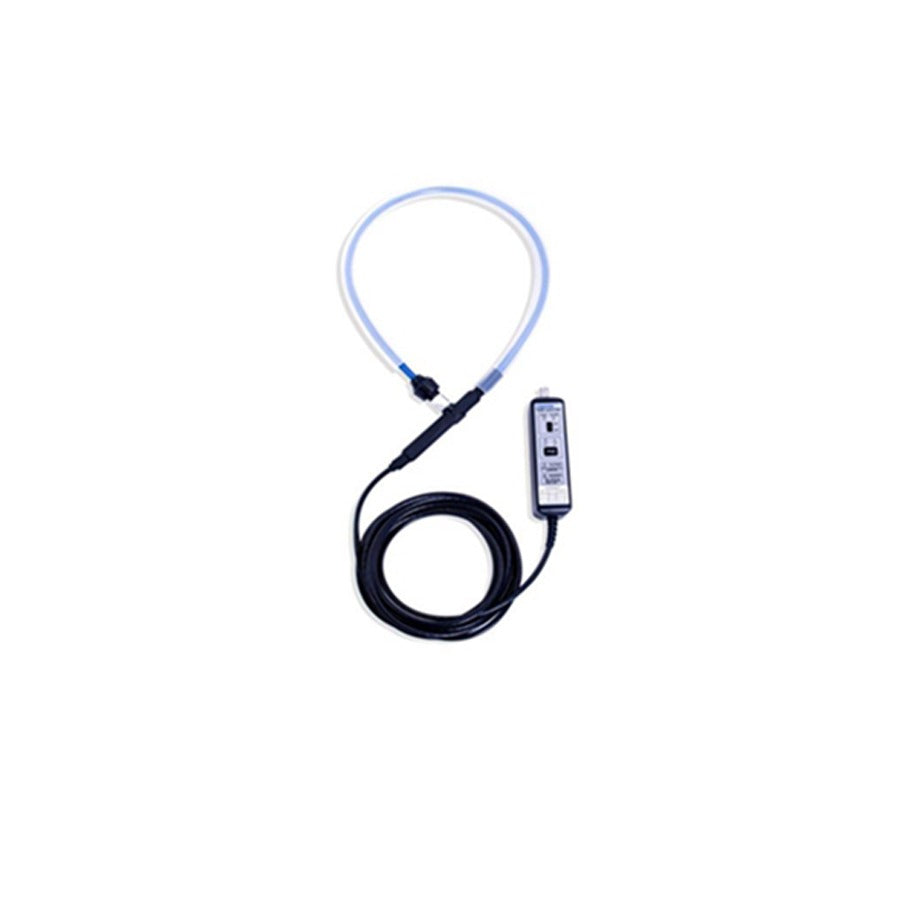

CP9060LF	60 A / 600 A	0.45 Hz–600 kHz	0.45 Hz–1 MHz
CP9120LF	120 A / 1200 A	0.23 Hz–600 kHz	0.23 Hz–1 MHz
CP9300LF	300 A / 3000 A	0.15 Hz–600 kHz	0.15 Hz–1 MHz
CP9600LF	600 A / 6000 A	0.1 Hz–600 kHz	0.1 Hz–1 MHz
CP9121LF	1200 A / 12000 A	0.08 Hz–600 kHz	0.08 Hz–1 MHz
CP9301LF	3000 A / 30000 A	0.07 Hz–600 kHz	0.07 Hz–1 MHz
CP9601LF	6000 A / 60000 A	0.07 Hz–600 kHz	0.07 Hz–1 MHz
CP9122LF	12000 A / 120000 A	0.07 Hz–600 kHz	0.07 Hz–1 MHz
