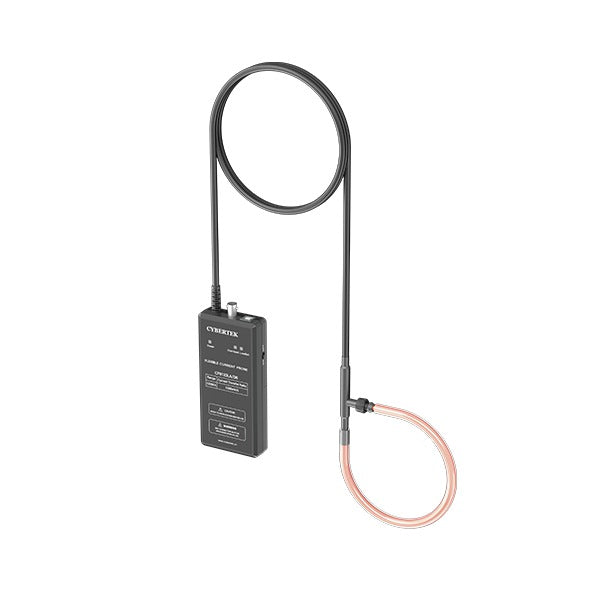

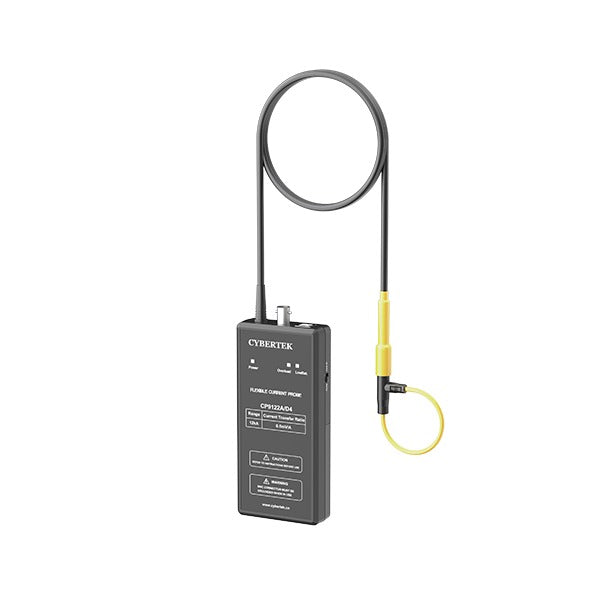

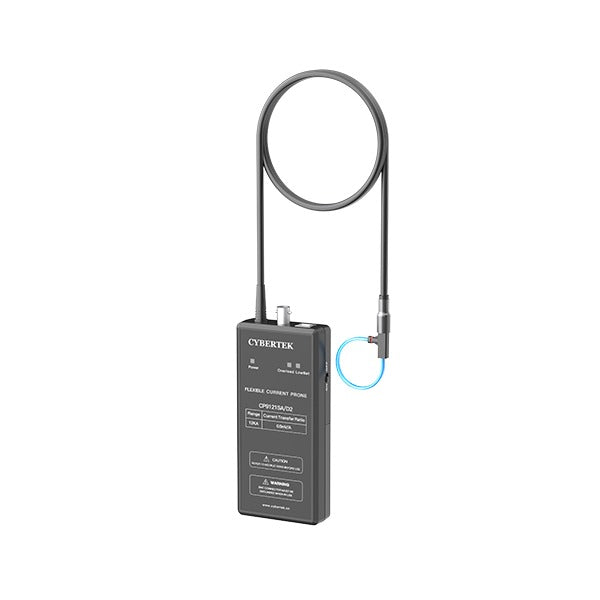

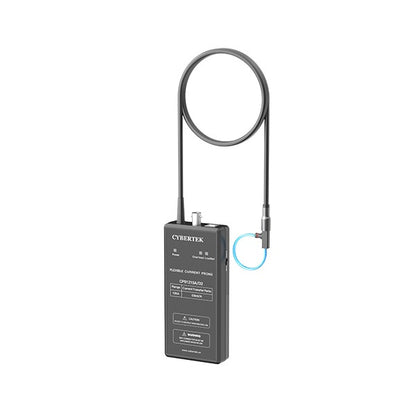

Name: CP9000 SA/A/LA Series Flexible Current Probe 30 A–3000 kA, up to 30 MHz
Brand: Cybertek
SKU: CP9003SA
Availability: InStock

The CP9000 SA, A and LA series flexible current probes (Rogowski coils) measure AC current with high bandwidth and typical 2% accuracy. Ranges run from 30 A peak to 3000 kA peak and frequencies from a few Hz to tens of MHz, covering both small-signal switching currents and very large pulsed currents.

The light, flexible coil can be opened and wrapped around conductors that rigid probes cannot reach, with almost zero insertion loss. The SA series has a very thin coil for tight spaces (up to 30 MHz), the A series a 200 mm ring (up to 15 MHz), and the LA series a 600 mm ring for very high currents with 1% accuracy. Ring size, range and cable length can be customized.

Models & Specifications

Common Specifications

Specification	Value
Measurement	AC only
Output Connector	BNC
Power Supply	4 × AA batteries or USB DC 5 V
Customization	Range, coil ring size and cable length

CP9000SA (small ring, 80/100 mm typ., up to 30 MHz)

Specification	Value
Coil Ring Size (typ., customizable)	80 mm/100 mm
Accuracy	±2%

Model	Peak Current	Bandwidth

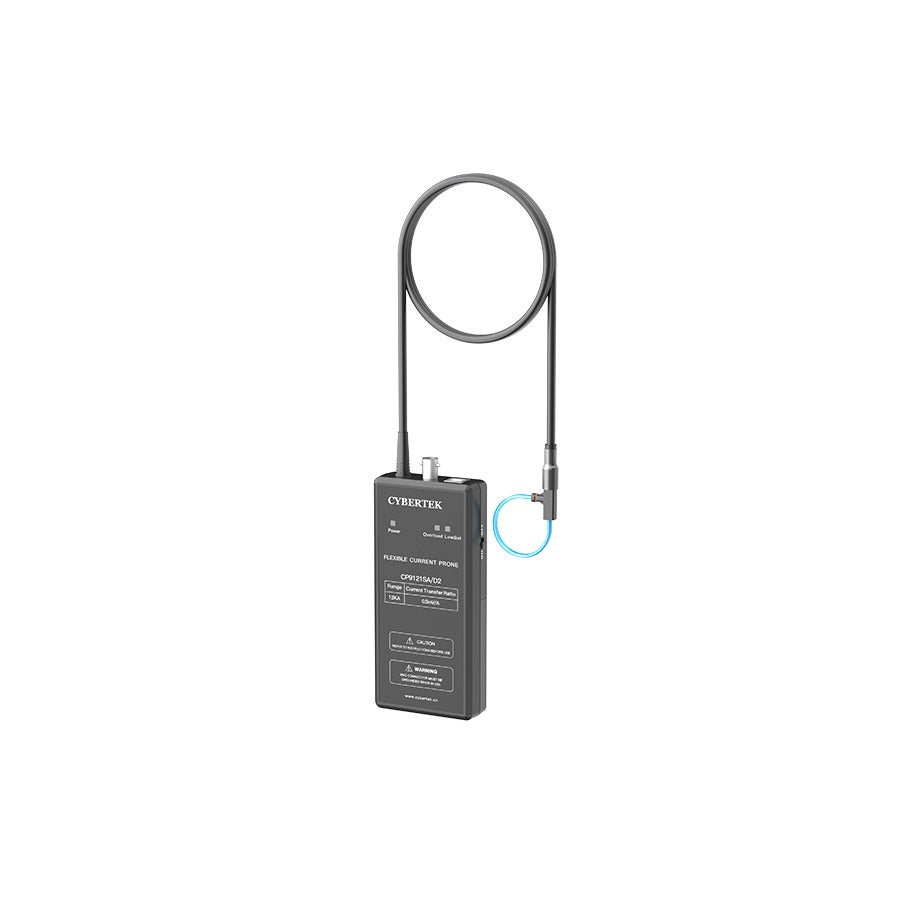

CP9003SA	30 A	116 Hz–30 MHz
CP9006SA	60 A	67 Hz–30 MHz
CP9012SA	120 A	34 Hz–30 MHz
CP9030SA	300 A	9.2 Hz–30 MHz
CP9060SA	600 A	6.2 Hz–30 MHz
CP9120SA	1200 A	3.2 Hz–30 MHz
CP9300SA	3000 A	2 Hz–30 MHz
CP9600SA	6000 A	2 Hz–30 MHz
CP9121SA	12000 A	2 Hz–30 MHz
CP9301SA	30000 A	2 Hz–30 MHz

CP9000A (200 mm ring typ., up to 15 MHz)

Specification	Value
Coil Ring Size (typ., customizable)	200 mm
Accuracy	±2%

Model	Peak Current	Bandwidth

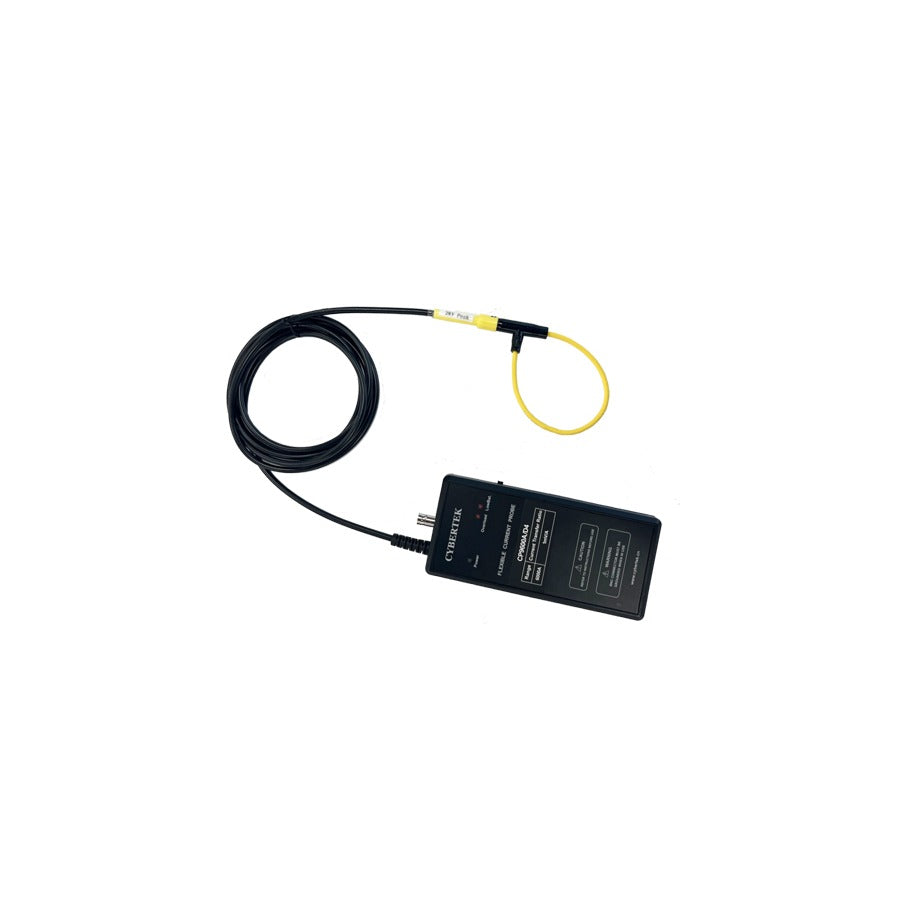

CP9012A	120 A	10 Hz–15 MHz
CP9030A	300 A	4.8 Hz–15 MHz
CP9060A	600 A	2.3 Hz–15 MHz
CP9120A	1200 A	1.5 Hz–15 MHz
CP9300A	3000 A	1.5 Hz–15 MHz
CP9600A	6000 A	1.5 Hz–15 MHz
CP9121A	12000 A	1 Hz–15 MHz
CP9301A	30000 A	1 Hz–15 MHz
CP9601A	60000 A	1 Hz–15 MHz
CP9122A	120000 A	1 Hz–15 MHz

CP9000LA (large ring, 600 mm typ., 1% accuracy)

Specification	Value
Coil Ring Size (typ., customizable)	600 mm
Accuracy	±1%

Model	Peak Current	Bandwidth

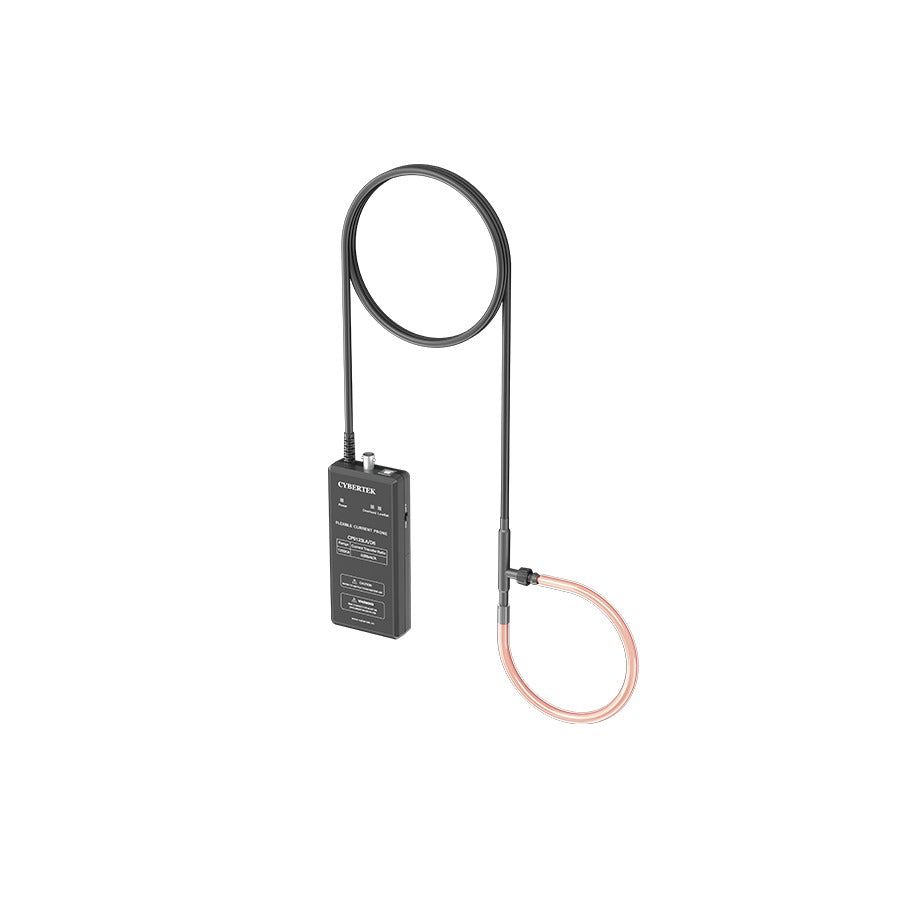

CP9012LA	120 A	80 Hz–10 MHz
CP9030LA	300 A	50 Hz–10 MHz
CP9060LA	600 A	2.1 Hz–10 MHz
CP9120LA	1200 A	2.1 Hz–10 MHz
CP9300LA	3000 A	1.2 Hz–10 MHz
CP9600LA	6000 A	1.2 Hz–10 MHz
CP9121LA	12000 A	1.2 Hz–10 MHz
CP9301LA	30000 A	0.5 Hz–10 MHz
CP9601LA	60000 A	0.5 Hz–10 MHz
CP9122LA	120000 A	0.5 Hz–10 MHz
CP9302LA	300000 A	0.5 Hz–10 MHz
CP9602LA	600000 A	0.5 Hz–10 MHz
CP9123LA	1200000 A	0.5 Hz–10 MHz
CP9303LA	3000000 A	0.5 Hz–10 MHz
