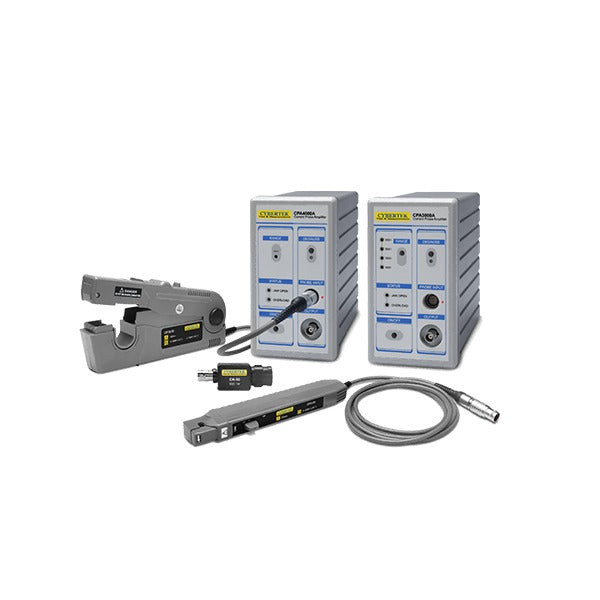

CP3000 / CP4000 AC/DC Current Probe and Amplifier 30–500 A, up to 70 MHz

Key Features

Probe heads from 30 A to 500 A RMS
Bandwidth up to DC–70 MHz, rise time down to 5 ns
Accuracy 1%
CPA3000A (DC–100 MHz) and CPA4000A (DC–50 MHz) probe amplifiers
Automatic degauss and zero
BNC output to any oscilloscope

Model CP3120 CP3050 CP3030 CP4040 CPA3000A CPA4000A

Download datasheet

Interested in this product?

Send us your details and we’ll get back to you with availability, pricing, and any additional information you need.

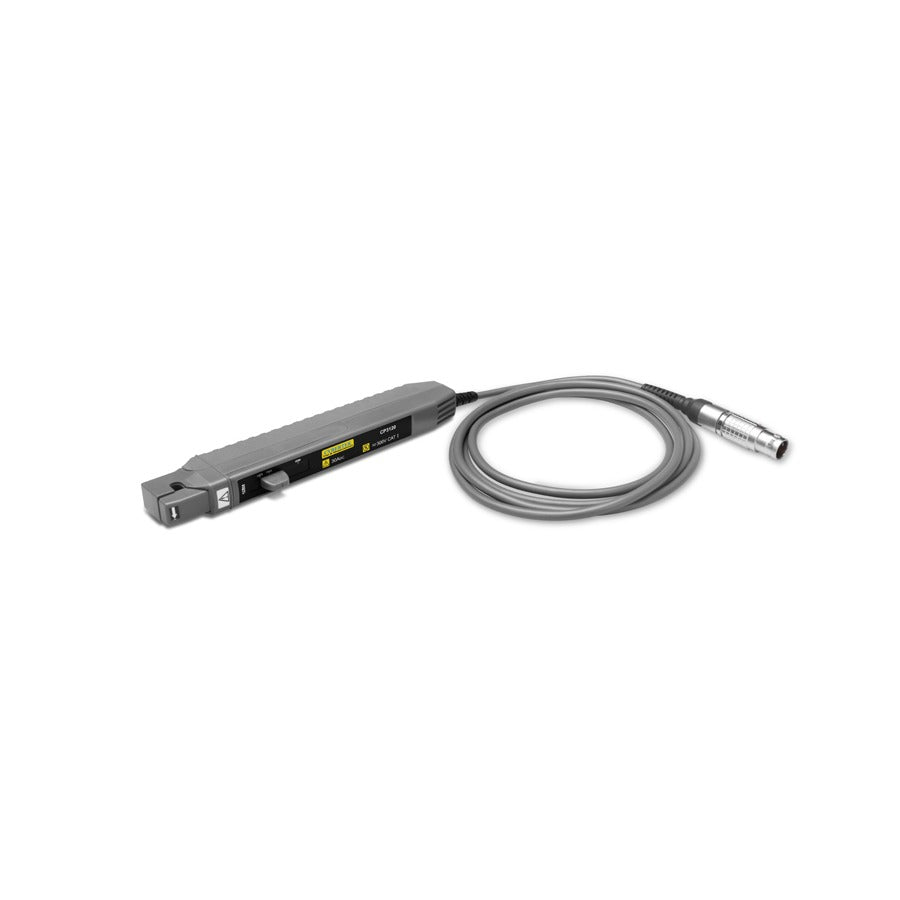

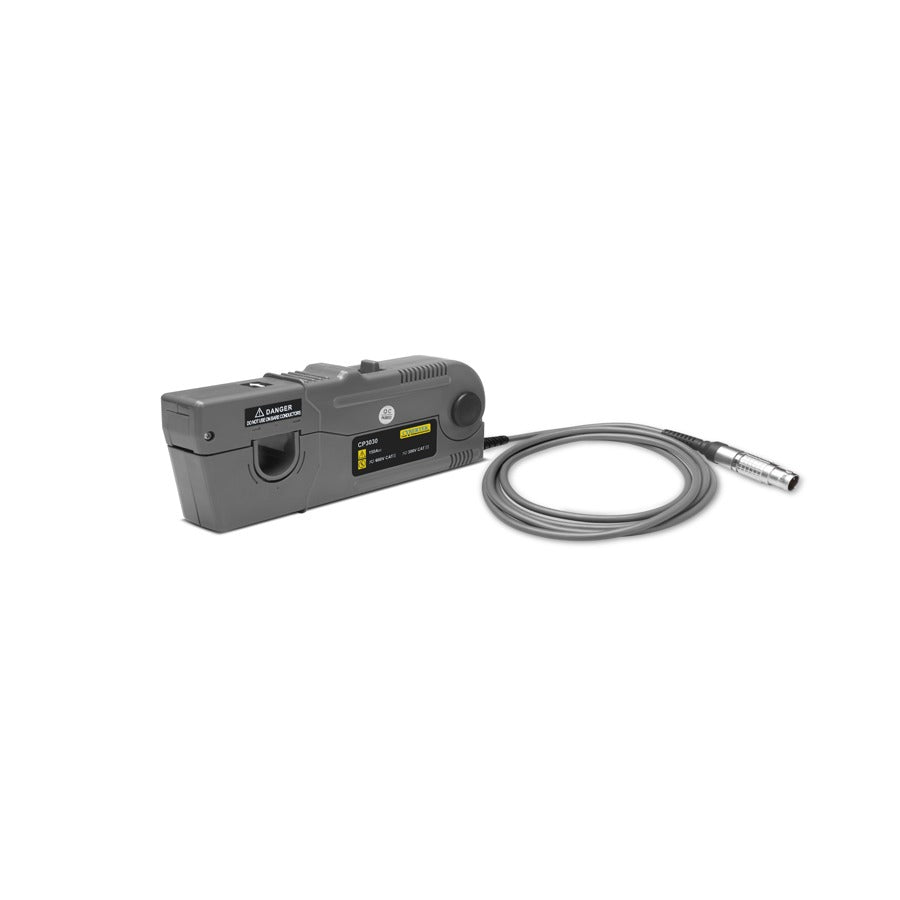

The CP3000 and CP4000 are high-frequency AC/DC current probes used with the CPA3000A and CPA4000A current probe amplifiers. The CP3120, CP3050 and CP3030 work with the CPA3000A, and the CP4040 works with the CPA4000A, covering 30 A to 500 A RMS with bandwidths up to 70 MHz.

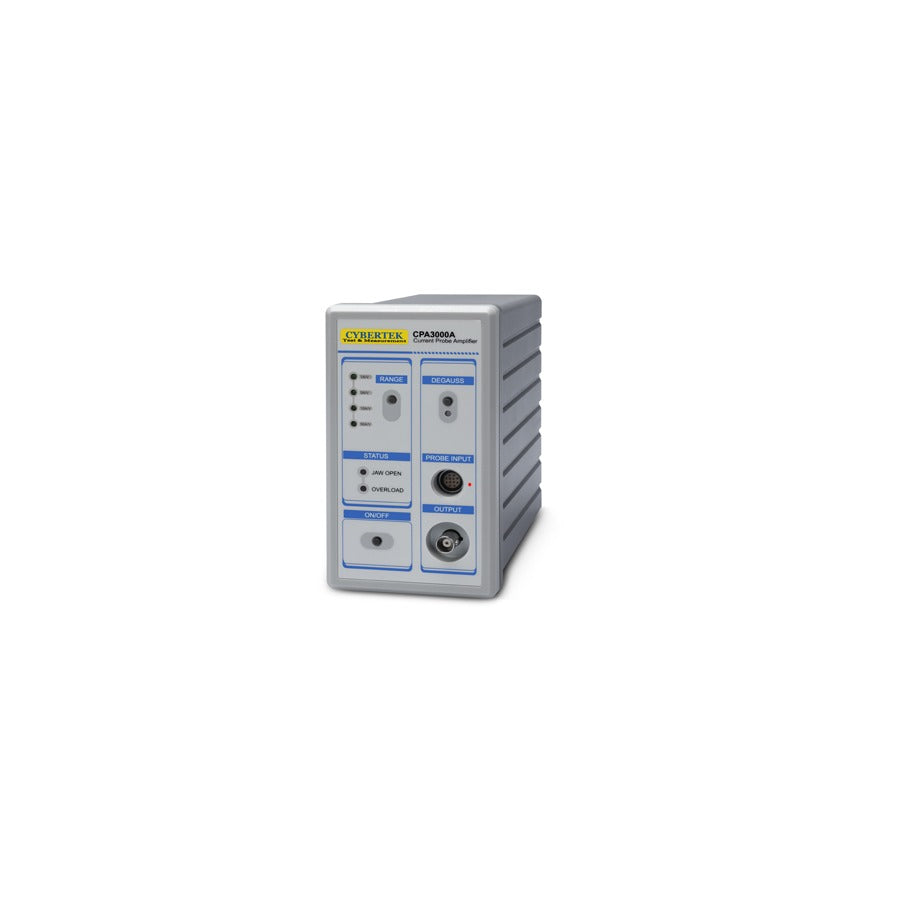

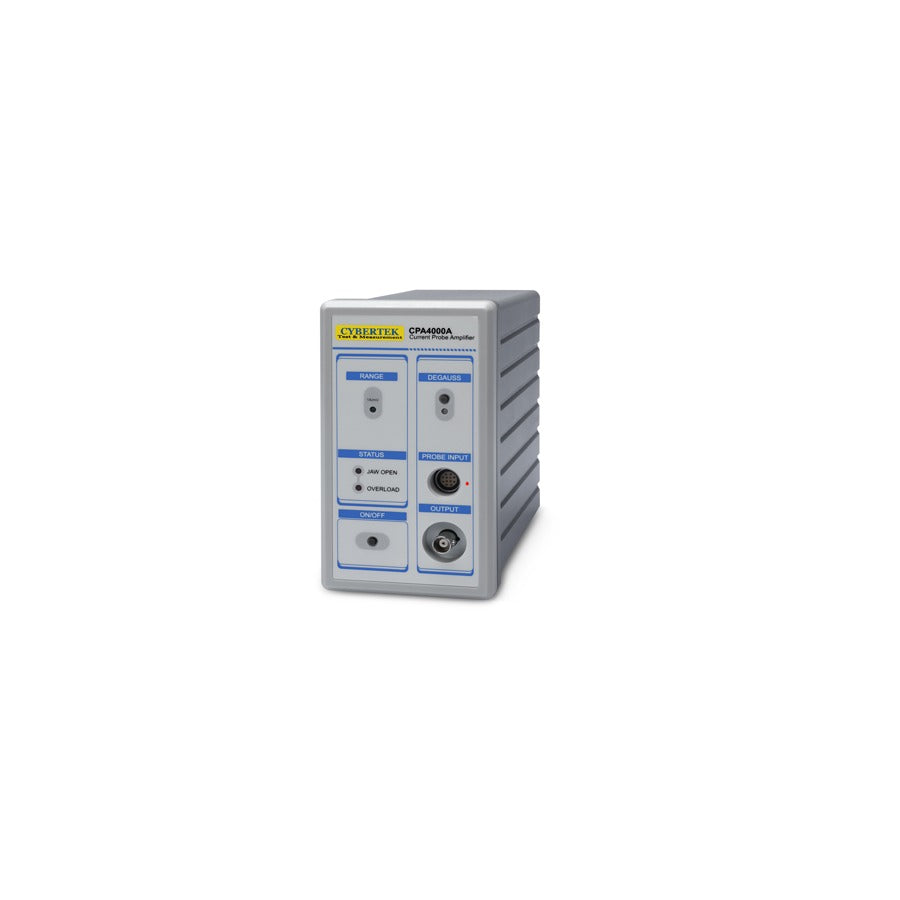

The amplifiers provide automatic degauss and zero with a degauss-needed indicator and connect to any oscilloscope through a standard 50 Ω BNC cable. Probes and amplifiers can be ordered separately.

Models & Specifications

Model Comparison

Model	CP3120	CP3050	CP3030	CP4040
Rated Current (RMS)	30 A	50 A	150 A	500 A
Peak Current	50 A	50 A	500 A	750 A
Bandwidth	DC–70 MHz	DC–50 MHz	DC–15 MHz	DC–5 MHz
Accuracy	±1%	±1%	±1%	±1%
Rise Time	≤5 ns	≤7 ns	≤23 ns	≤70 ns
Amplifier	CPA3000 A	CPA3000 A	CPA3000 A	CPA4000 A
