Micsig

CP2100B 100A DC-2.5MHz

$3,899.00
$3,899.00
$3,899.00 $12,000.00

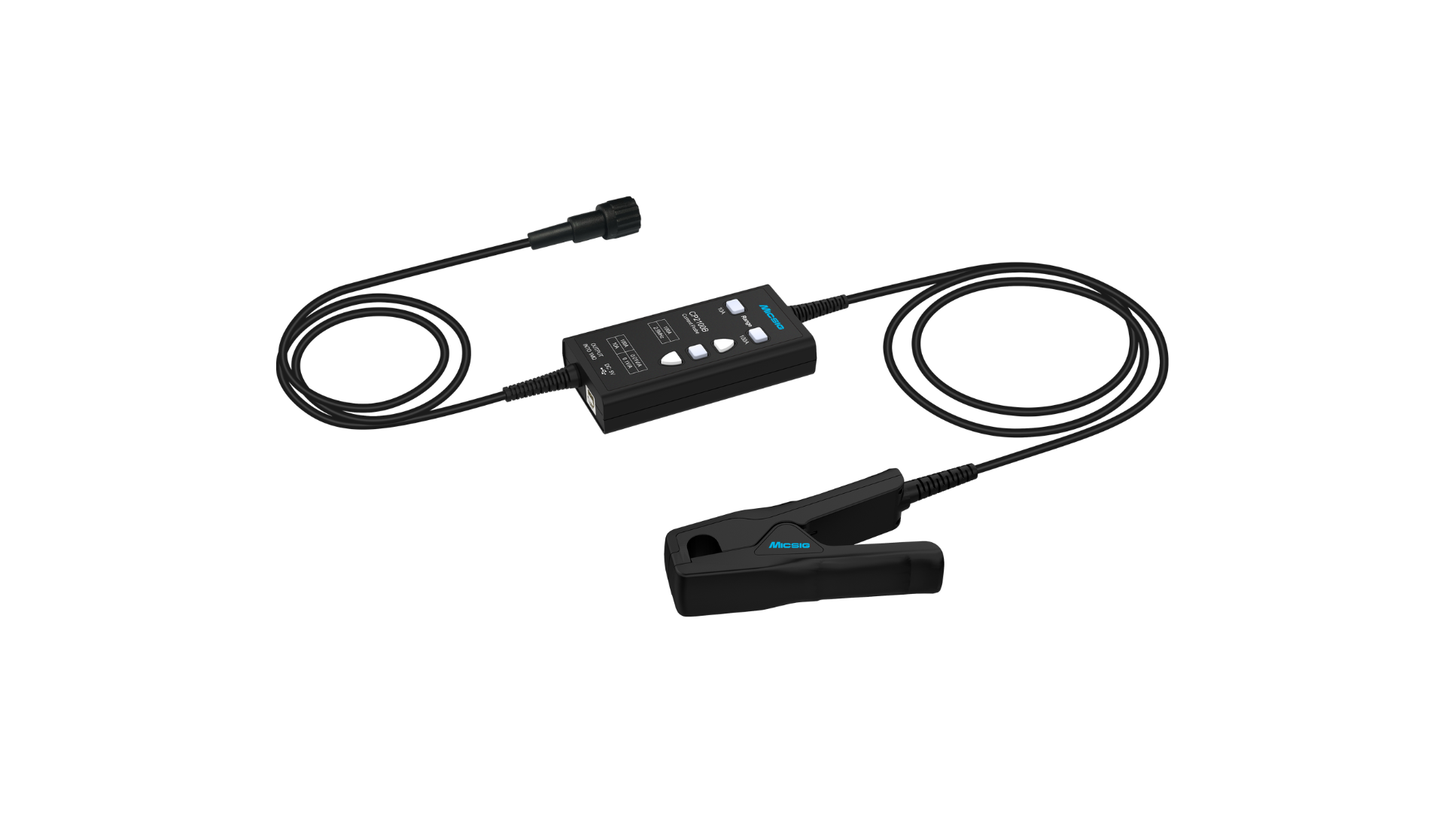

Low Frequency AC/DC Current Probe

Model CP2100B
Bandwidth DC~2.5MHz
Rise Time ≤140ns
Ranges 10A/100A
Output sensitivity 0.1V/A (10A)
0.01V/A (100A)
DC accuracy (typical) 3%±50mA (10A)
4%±50mA (100A,500mA~40Apk)
15% (100A,40Apk~100Apk)
Signal delay 100ns
Current measurement range 50mA~10Apk (10A, 10X)
1A~100Apk (100A, 100X)
Max. measuring current 100Apk,70.7Arms (DC+ACpk)
200Apk-pk,70.7Arms (AC)
Max. working voltage CAT Ⅲ 300V CAT Ⅱ 600V
Max. float voltage CAT Ⅲ 300V CAT Ⅱ 600V
Max. conductor diameter 13mm
Overload alarm Buzzer beeps
Button flashes
Power supply DC-5V
Interface Universal BNC
CP2100B 100A DC-2.5MHz

$3,899.00
