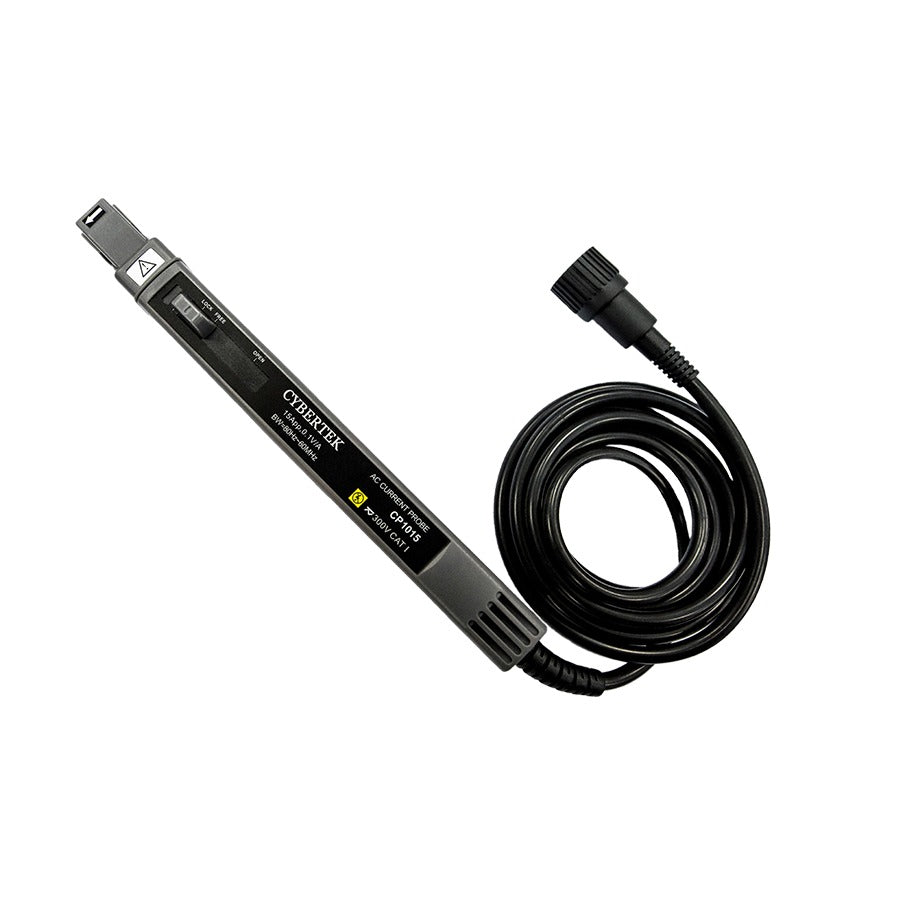

CP1015 High-Frequency AC Current Probe 5 A, 60 MHz
Interested in this product?
Send us your details and we’ll get back to you with availability, pricing, and any additional information you need.
The CP1015 is a passive high-frequency AC current probe with 80 Hz–60 MHz bandwidth and a 100 mV/A output for oscilloscopes with 1 MΩ inputs. Its small 5 mm jaw clamps around component leads and thin wires to view fast AC and pulse currents.
It handles 5.3 A RMS continuously and pulses up to 250 A peak.
Models & Specifications
| Specification | CP1015 |
|---|---|
| Bandwidth (–3 dB) | 80 Hz–60 MHz |
| Max. Continuous Current | 5.3 A RMS (15 A p-p) |
| Max. Pulse Current | 250 A peak (≤500 A·µs) |
| Max. DC Saturation Current | 0.5 A |
| Accuracy (mid-band) | ≤3% |
| Current Transfer Ratio | 100 mV/A |
| Rise Time | ≤5.83 ns |
| Clamp Diameter | approx. 5 mm |
| Output | BNC (1 MΩ), 1.5 m cable |
| Weight | approx. 150 g |
Specifications from the official Cybertek datasheet (English); use the Download Datasheet button for full details.
