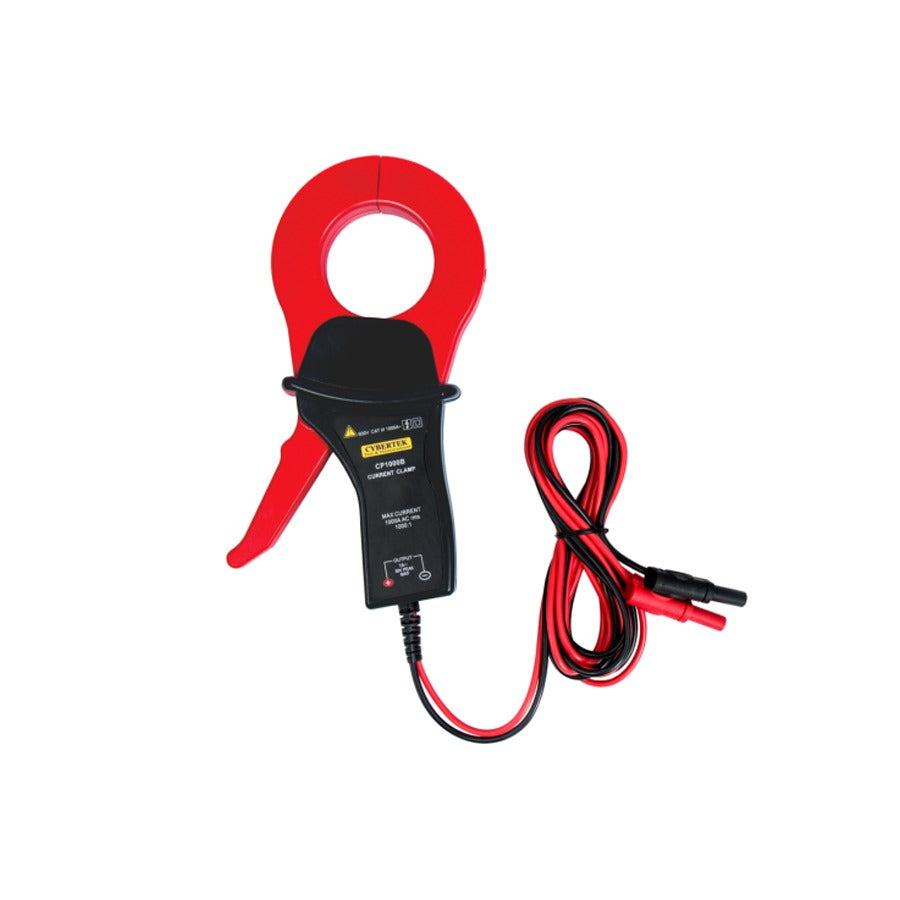

CP1000B Low-Frequency AC Current Clamp 1000 A, 1000:1 Current Output

Key Features

  • Up to 1000 A RMS
  • 1000:1 current-output transformer clamp
  • Bandwidth 20 Hz–10 kHz
  • Accuracy up to 0.3%
  • 54 mm clamp jaw
  • 600 V CAT III
Model
Download datasheet

Interested in this product?

Send us your details and we’ll get back to you with availability, pricing, and any additional information you need.

The CP1000B is a low-frequency AC current clamp with a 1000:1 current output, designed for power analyzers and meters with current inputs. It measures from milliamps up to 1000 A RMS with accuracy up to 0.3% over 20 Hz–10 kHz.

The 54 mm jaw takes large conductors, and the output is available with banana plugs or BNC.

Models & Specifications

Specification CP1000B
Continuous Current 1000 A RMS
Current Transfer Ratio 1000:1 (current output)
Bandwidth 20 Hz–10 kHz
Accuracy 1–100 mA ≤3% +5 µA; 0.1–1 A ≤2% +3 µA; 1–10 A ≤1%; 10–100 A ≤0.5%; 100–1000 A ≤0.3%
Load Impedance ≤1 Ω
Clamp Diameter 54 mm
Output Banana plug or BNC (optional), 2 m cable
Safety Rating 600 V CAT III
Weight 710 g

Specifications from the official Cybertek datasheet (English); use the Download Datasheet button for full details.
