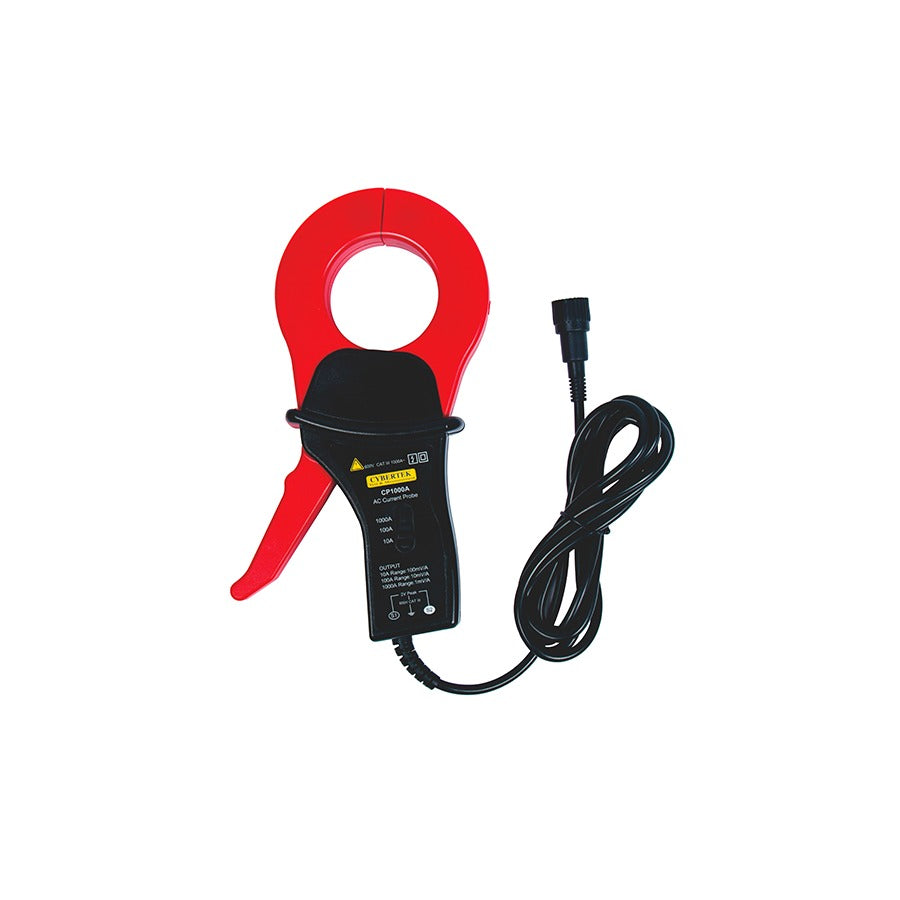

CP1000A Low-Frequency AC Current Clamp 1000 A, 100 kHz

Key Features

  • Three ranges: 10 A, 100 A, 1000 A
  • Bandwidth 10 Hz–100 kHz
  • Accuracy up to 0.3%
  • Voltage output via BNC (100 / 10 / 1 mV/A)
  • 54 mm clamp jaw
  • 600 V CAT III
Model
Download datasheet

Interested in this product?

Send us your details and we’ll get back to you with availability, pricing, and any additional information you need.

The CP1000A is a three-range low-frequency AC current clamp (10 A, 100 A and 1000 A) with a voltage output for oscilloscopes, recorders and power analyzers. Accuracy reaches 0.3% on the 1000 A range across 10 Hz–100 kHz.

The 54 mm jaw takes large conductors, and the clamp is rated 600 V CAT III.

Models & Specifications

Specification CP1000A
Ranges 10 A / 100 A / 1000 A
Continuous Current 10 / 100 / 1000 A RMS
Peak Current 30 / 300 / 2000 A
Current Transfer Ratio 100 / 10 / 1 mV/A
Bandwidth 10 Hz–100 kHz
Rise Time ≤3.5 µs
Accuracy 0.1–1 A ≤2%; 1–10 A ≤1%; 10–100 A ≤0.5%; 100–1000 A ≤0.3%
Clamp Diameter 54 mm
Output BNC, 2 m cable
Safety Rating 600 V CAT III
Weight 695 g

Specifications from the official Cybertek datasheet (English); use the Download Datasheet button for full details.
