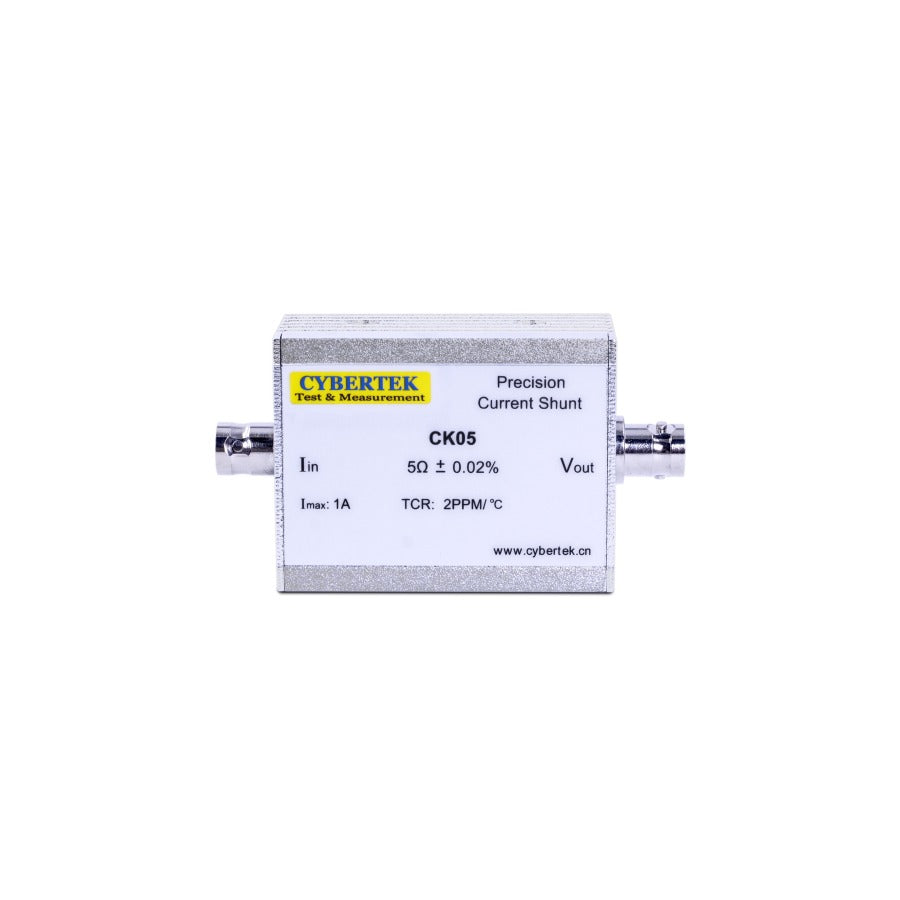

CK05 Precision Current Shunt 5 Ω ±0.02%

Key Features

  • 5 Ω precision foil resistor
  • ±0.02% accuracy, 2 ppm/°C temperature drift
  • Maximum input current 1 A
  • BNC input and output
  • Long-term stability ±0.005% (2000 h at rated load)
  • Converts CTA/CTV current output to voltage
Model
Download datasheet

Interested in this product?

Send us your details and we’ll get back to you with availability, pricing, and any additional information you need.

The CK05 is a precision foil-resistor current shunt designed for Cybertek high-accuracy current transducers (CTA / CTV series). It converts the transducer current output into a voltage (Vout = 5 × Iin) with ±0.02% accuracy and a 2 ppm/°C temperature coefficient, and keeps excellent resistance stability under long-term load.

Standard BNC input and output connectors; supplied with a CK-310 coaxial output cable and test report.

Models & Specifications

Specification CK05
Resistance 5 Ω
Accuracy ±0.02%
Temperature Coefficient 2 ppm/°C
Max. Input Current 1 A
Long-term Stability ±0.005% (25 °C, 2000 h at rated load)
Input / Output BNC (female) / BNC (female), Vout = 5 × Iin
Size (L × W × H) 85 × 46 × 30 mm
Weight 78 g

Specifications from the official Cybertek datasheet (English); use the Download Datasheet button for full details.
