CG Vacuum High-Low Temperature Probe Station
Interested in this product?
Send us your details and we’ll get back to you with availability, pricing, and any additional information you need.

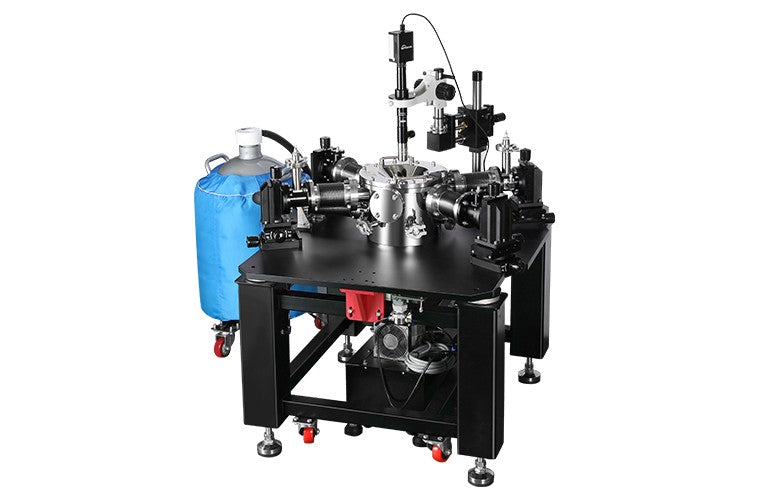

The CG series is a manual vacuum probe station for electrical, optical, wavelength and magnetic measurements at high and low temperature. CG-O-2 and CG-O-4 are open-cycle, cooled by liquid nitrogen or liquid helium. CG-C-2 is closed-cycle, cooled by a helium compressor.

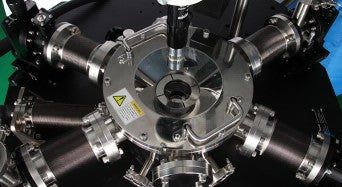

A double chamber holds 5 × 10⁻⁴ Pa with a 250 L/s turbopump, so the sample does not frost at low temperature and does not oxidise when it is hot. Probe drift is better than ±60 nm over 30 minutes, and DC leakage is 100 fA with triaxial cabling.
Key Features
- Open-cycle CG-O-2 (2 inch) and CG-O-4 (4 inch), or closed-cycle CG-C-2 (2 inch)
- Probe placement 2 µm, up to six probes, adjusted from outside the chamber
- Two-stage thermal anchoring of the DC probe arms
- Microscope 16X to 100X, or a metallurgical microscope at 20X to 1000X
- Air-spring bench, about 1.5 Hz vertical and 1.2 Hz horizontal
Specifications
| Specification | CG-O-2 | CG-O-4 | CG-C-2 |
|---|---|---|---|
| Sample size | 2 inch | 4 inch | 2 inch |
| Cooling | Liquid nitrogen or liquid helium | Liquid nitrogen or liquid helium | Closed-cycle helium compressor |
| Temperature | 77 K to 473 K, or 4.2 K to 473 K | 77 K to 473 K, or 4.2 K to 473 K | 7.3 K to 473 K |
| Control | Open cycle, manual or automatic flow | Open cycle, manual or automatic flow | Closed cycle, automatic |
| Weight | About 170 kg | About 170 kg | About 350 kg |
| Power | 220 V AC, 50–60 Hz | 220 V AC, 50–60 Hz | 380 V |
| Stage material | Stainless steel | Stainless steel | Gold-plated oxygen-free copper |
| Vacuum | 5 × 10⁻⁴ Pa with a 250 L/s turbopump | Same | Same |
| Microscope travel | 2 × 2 inch | 4 × 4 inch | 2 × 2 inch |
| View port | 2 inch | 4 inch | 2 inch |
| Temperature resolution | 0.001 K | 0.001 K | 0.001 K |
| Sensor | PT100 | PT100 | Silicon diode |
| Probe accuracy | 2 µm | 2 µm | 2 µm |
| Leakage | 100 fA | 100 fA | 100 fA |
| Connectors | Triaxial, SMA, K, fibre | Triaxial, SMA, K, fibre | Triaxial, SMA, K, fibre |
Outline on the specification table is 850 × 800 × 1350 mm. Sample hold is vacuum grease or a spring clip, on a fixed stage.
Official product pages do not publish a downloadable datasheet. Contact us for the configuration and a quotation.
