The broadband light sources provided by Dimension-Labs cover a wide wavelength range from 200 nm to 2500 nm, offer multiple output power options ranging from 1 W to 100 W, and feature flexible spatial light or fiber optic output modes. These characteristics enable them to meet the rigorous requirements of various experimental and application scenarios.
Spectral Ranges of Dimension-Labs' Various Light Sources:
Dimension-Labs Light Source List:
Models & Specifications

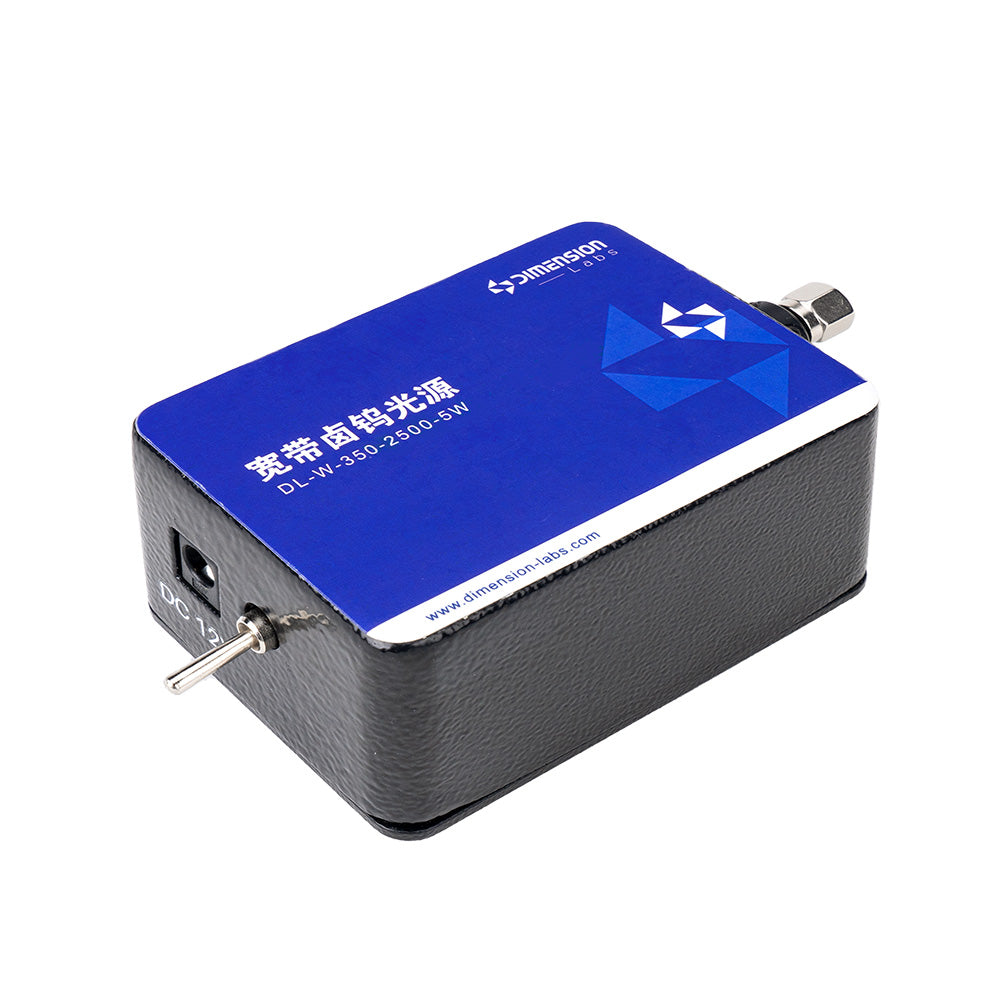

Broadband Halogen-Tungsten Light Source
| Model |
DL-HL-350-2500-5W |
DL-HL-360-2500-10W |
DL-HL-360-2500-20W |
| Wavelength Range (nm) |
350-2500 |
360-2500 |
360-2500 |
| Bulb Output Power (w) |
5 |
10 |
20 |
| Stability (%) |
<0.5%/hr |
<0.15%/hr |
<0.15%/hr |
| Interface Type |
SMA905 |
| Color Temperature (K) |
|
2900 |
3000 |
| Operating Life (hrs) |
10000 |
6000 |
2000 |
| Warm-up Time (min) |
15 |
30 |
30 |
| Voltage |
12V/2A |
85~250V AC |
85~250V AC |
| Size L×W×H (mm) |
76*55*46 |
160*85*60 |
160*85*60 |
| Operating Temperature Range (℃) |
0-40 |
5-35 |
5-35 |
| Operating Humidity (%) |
5-80 |
5-95 |
5-95 |
| Model |
DL-HL-360-2500-50W |
DL-HL-360-2500-100W |
DL-HL-360-2500-10W-A |
| Wavelength Range (nm) |
360-2500 |
| Bulb Output Power (w) |
50 |
100 |
10 (Adjustable Intensity) |
| Stability (%) |
<0.2%/hr |
<0.2%/hr |
<0.15%/hr |
| Interface Type |
SMA905 |
| Color Temperature (K) |
3050 |
3300 |
2900 |
| Operating Life (hrs) |
2000 |
2000 |
6000 |
| Warm-up Time (min) |
30 |
| Voltage |
85~250V AC |
| Size L×W×H (mm) |
190*92*101 |
190*92*101 |
150*75*50 |
| Operating Temperature Range (℃) |
5-35 |
| Operating Humidity (%) |
5-95 |

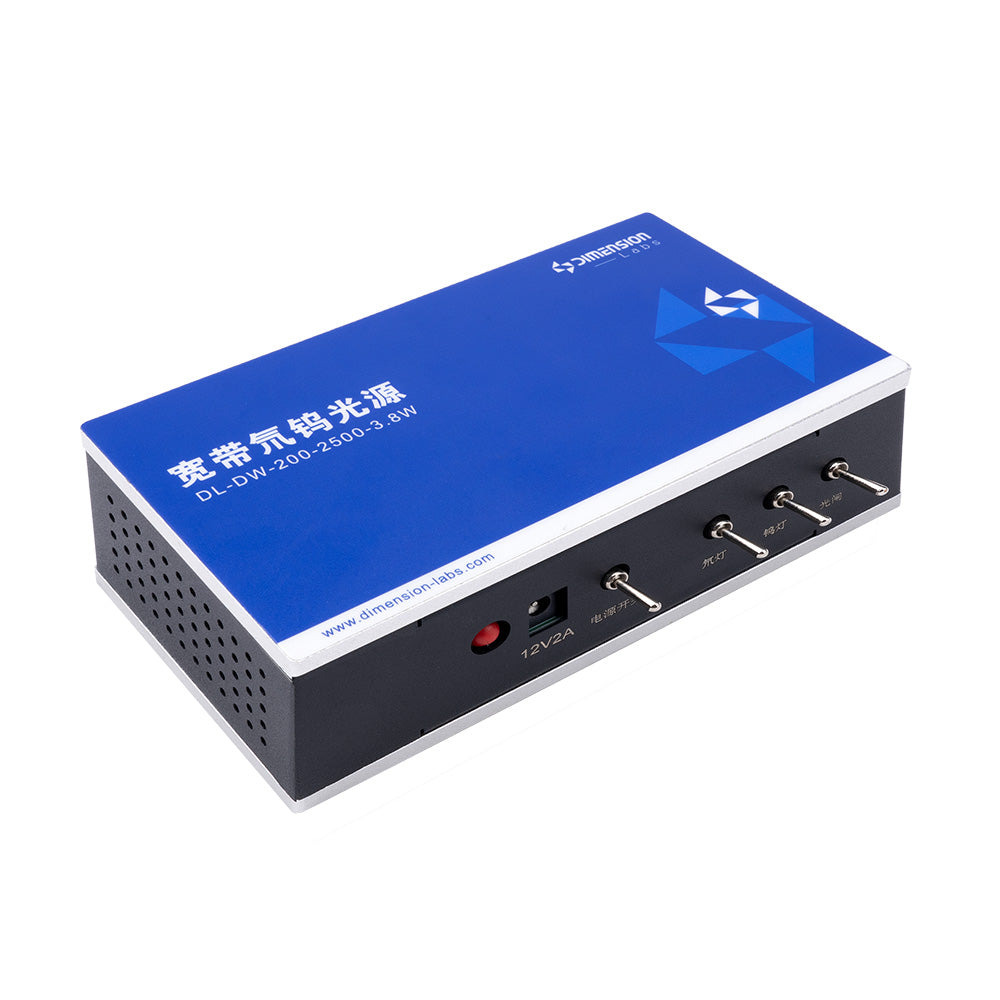

Broadband Deuterium-Tungsten Light Source
| Model |
DL-DW-200-2500-3.8W |
DL-DW-200-2500-25W |
DL-DW-200-2500-250W |
| Wavelength Range (nm) |
200-2500 |
| Bulb Output Power (w) |
Deuterium Lamp:3.8;Tungsten Lamp:1.2 |
Deuterium Lamp:25;Tungsten Lamp:10 |
Deuterium Lamp:30;Tungsten Lamp:250 |
| Stability (%) |
<0.25%/hr |
<0.5%/hr |
|
| Interface Type |
SMA905 |
SMA905 |
Spatial Output |
| Color Temperature (K) |
|
|
3200 |
| Operating Life (hrs) |
Bulb Output Power:2000;Deuterium Lamp:6000 |
1500 |
300 |
| Warm-up Time (min) |
10 |
30 |
30 |
| Voltage |
12V/2A |
85~250V AC |
220V AC |
| Size L×W×H (mm) |
168*93*53 |
200*145*110 |
|
| Operating Temperature Range (℃) |
0-40 |
5-35 |
5-35 |
| Operating Humidity (%) |
5-80 |
5-95 |
5-95 |

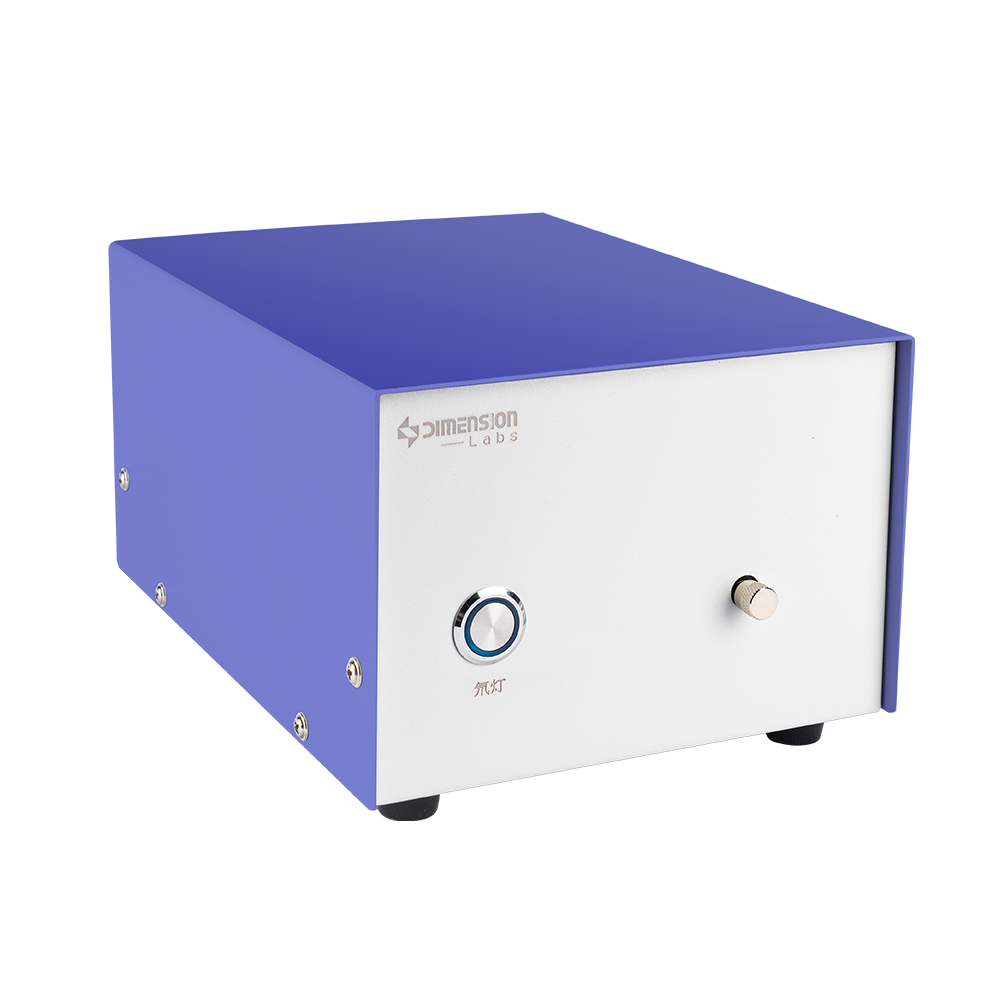

Deuterium Light Source
| Model |
DL-D-185-600-25W |
DL-D-200-400-30W |
| Wavelength Range (nm) |
185-600 |
200-400 |
| Bulb Output Power (w) |
25 |
30 |
| Stability (%) |
<0.5%/hr |
|
| Interface Type |
SMA905 |
Spatial Output |
| Operating Life (hrs) |
1500 |
2000 |
| Warm-up Time (min) |
40 |
30 |
| Voltage |
85V/0.3A |
220V AC |
| Size L×W×H (mm) |
200*145*110 |
|
| Operating Temperature Range (℃) |
5-35 |
| Operating Humidity (%) |
5-95 |

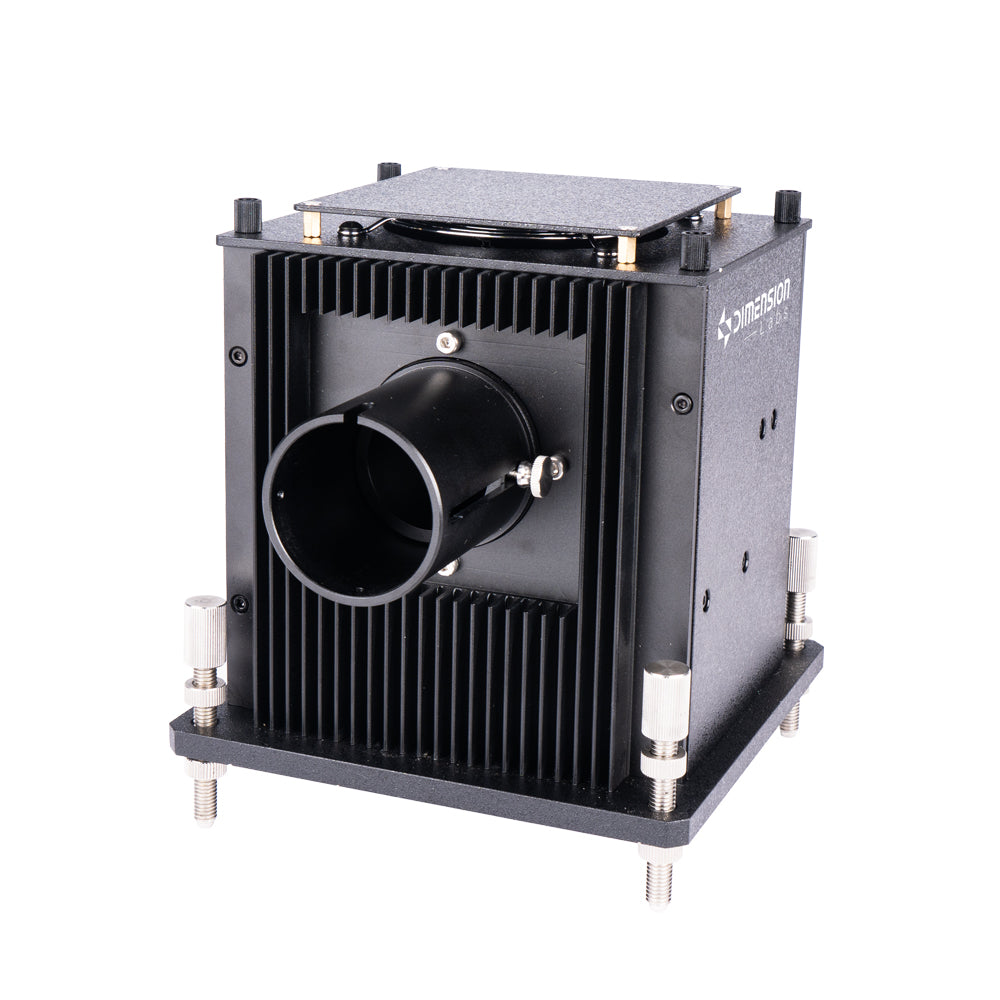

Xenon Light Source
| Model |
DL-XE-300-2500-150W |
DL-XE-250-2500-150W |
DL-XE-200-2500-150W |
| Wavelength Range (nm) |
300-2500 |
250-2500 |
200-2500 |
| Bulb Output Power (w) |
150 |
| Stability (%) |
<0.1%/hr |
| Interface Type |
Spatial Output |
| Color Temperature (K) |
6000 |
5700 |
5700 |
| Operating Life (hrs) |
3000 |
1200 |
1200 |
| Warm-up Time (min) |
30 |
| Voltage |
220V AC |
| Operating Temperature Range (℃) |
0-40 |
| Operating Humidity (%) |
5-80 |
| Model |
DL-XE-300-2500-350W |
DL-XE-300-2500-500W |
| Wavelength Range (nm) |
200-2500 |
| Bulb Output Power (w) |
350 |
500 |
| Stability (%) |
<0.3%/hr |
<0.1%/hr |
| Interface Type |
Spatial Output |
| Color Temperature (K) |
6000 |
| Operating Life (hrs) |
800 |
1000 |
| Warm-up Time (min) |
30 |
| Voltage |
220V AC |
| Operating Temperature Range (℃) |
0-40 |
| Operating Humidity (%) |
5-80 |
