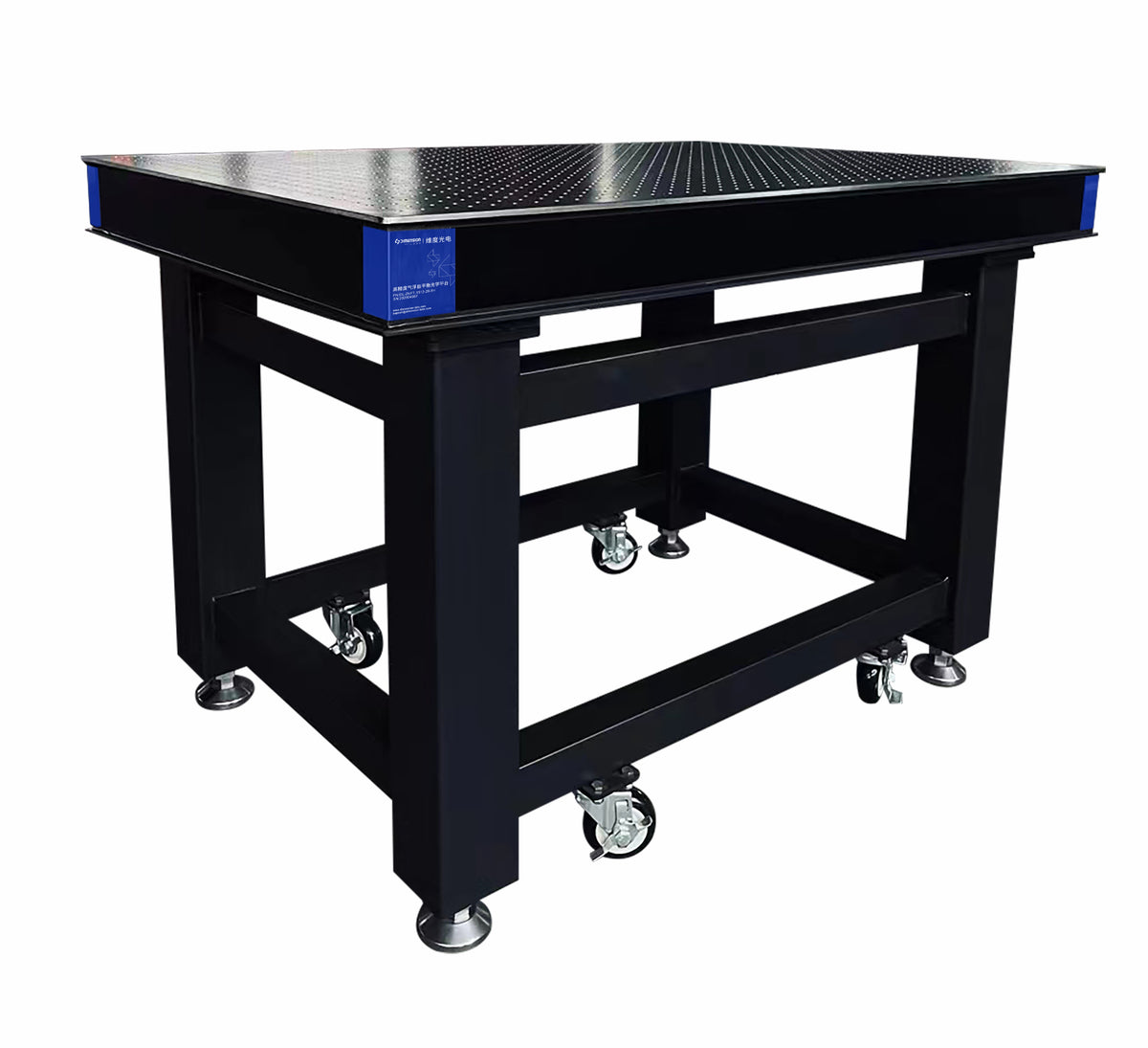

B-Series Damped Optical Table
Interested in this product?
Send us your details and we’ll get back to you with availability, pricing, and any additional information you need.
The B-series damped optical table combines an SUS430 ferromagnetic stainless-steel top with a one-piece welded steel-tube frame and professional precision damping shock absorbers above each leg (with damping pads below). Isolation is significantly better than tables using standard damping pads alone.
The top is precision ground to a flatness of 0.02–0.05 mm/m² and rotary-polished to a non-reflective matte finish, with M6 holes on a 25 mm grid. Total height is 800 mm with −20 to +20 mm adjustment below each leg, and casters make the table easy to move and position. Sides are trimmed in blue PU leather (grey or black aluminium-plastic panel or black PU leather available on request).
Models & Specifications
| Specification | Value |
|---|---|
| Height (mm) | 800 |
| Isolation Method | Precision damping isolators |
| Flatness (mm/m²) | 0.05 |
| Natural Frequency | 5Hz |
| Model | Table Size L×W×T (mm) |
|---|---|
| DL-ZNPT-1809-20-BH | 1800×900×200 |
| DL-ZNPT-2010-20-BH | 2000×1000×200 |
Custom sizes, hole patterns and isolation options are available on request. Datasheet: Dimension-Labs optical table selection guide (Chinese).
