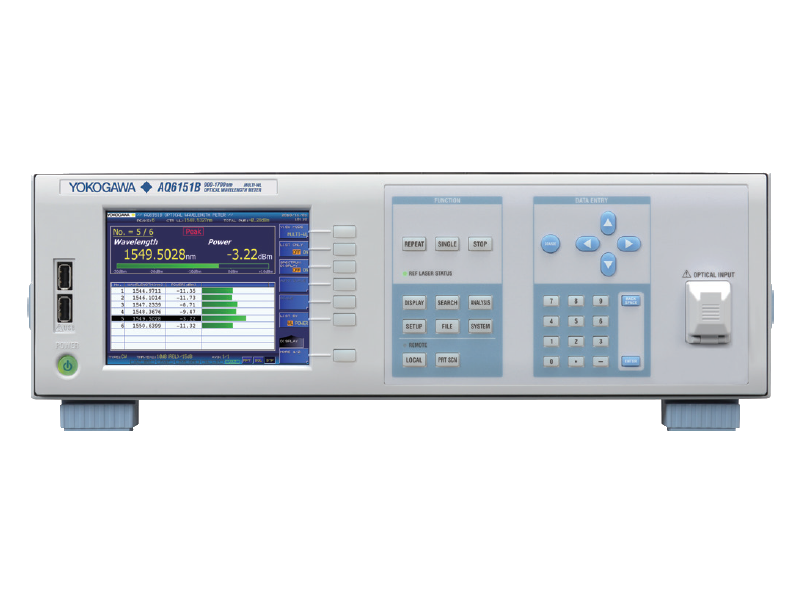

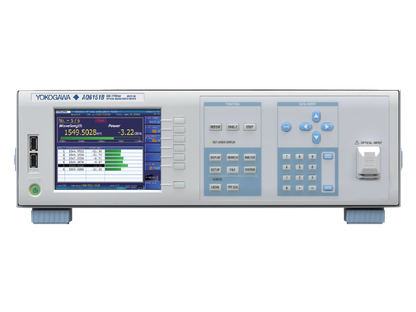

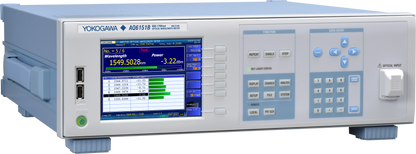

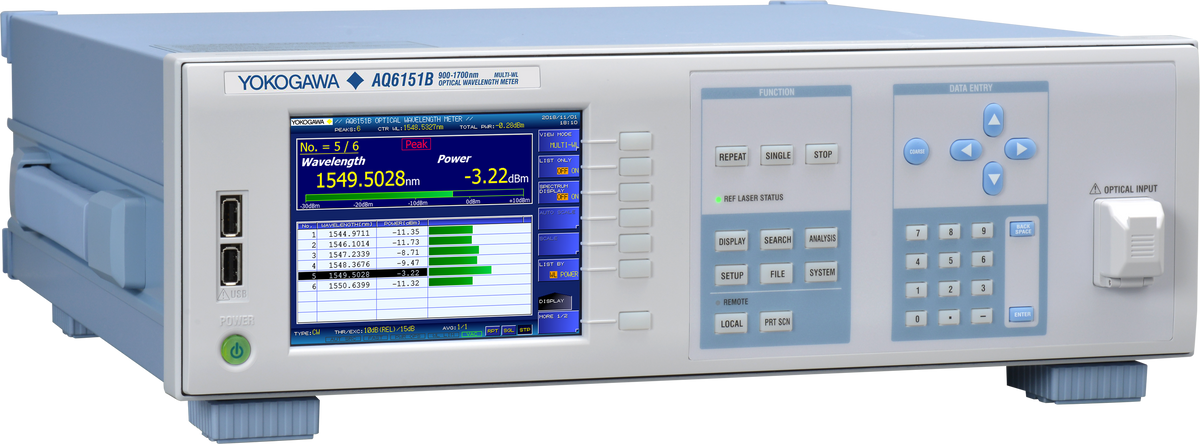

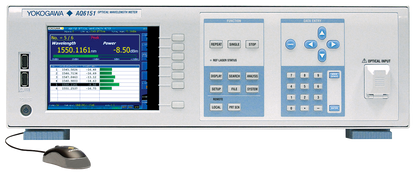

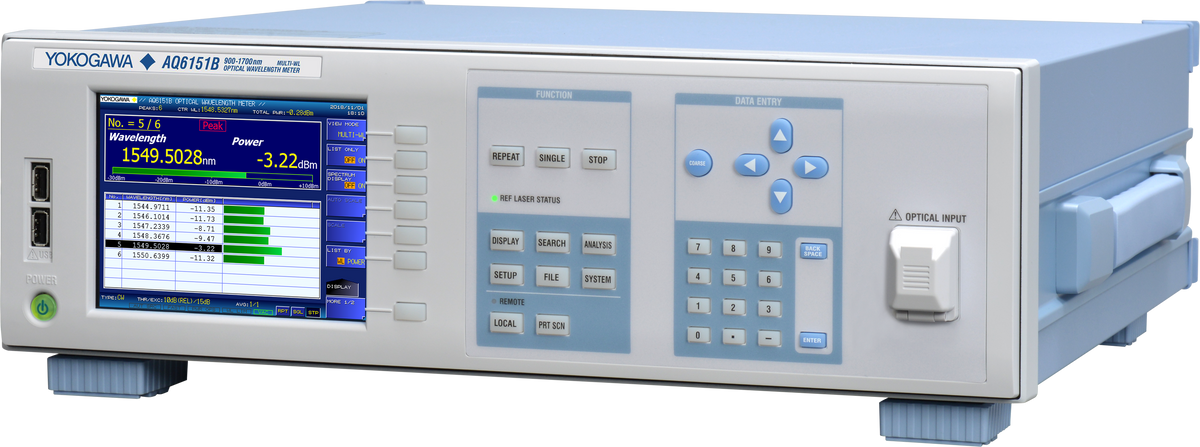

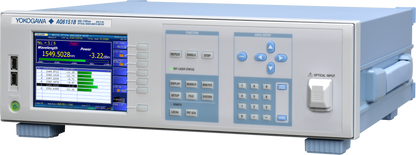

AQ6151B Optical Wavelength Meter
The AQ6151B is a high-accuracy optical wavelength meter for absolute wavelength measurement of lasers, optical transceivers and WDM systems from 900 nm to 1700 nm.
A Michelson interferometer with high-speed FFT processing measures single- and multi-wavelength signals, including DWDM and modulated transceiver outputs, with ±0.2 ppm accuracy and measurement times of 0.2 s or less.
Key Features
- High wavelength accuracy ±0.2 ppm (≈ ±0.3 pm at 1550 nm)
- Wavelength ranges: 1270–1650 nm, 1200–1700 nm, or 900–1700 nm
- Measure up to 1024 wavelengths simultaneously (multi-wavelength type)
- Measurement, analysis and PC transfer in ≤ 0.2 s
- CW and modulated light modes for transceiver and filter testing
- Built-in He-Ne reference laser, specified 30,000+ hours
- GP-IB and Ethernet remote control (SCPI)
Wavelength Range Options
| Type | Wavelength range | Accuracy | Max. wavelengths |
|---|---|---|---|
| Standard (-10) | 1270 to 1650 nm | ±0.2 ppm | 1024 (multi) / 1 (single) |
| Extended (-20) | 1200 to 1700 nm | ±0.2 ppm | 1024 (multi) / 1 (single) |
| Wide range (-30) | 900 to 1700 nm | ±0.2 ppm | 1024 (multi) / 1 (single) |
Specifications (summary)
| Specification | Value |
|---|---|
| Wavelength accuracy | ±0.2 ppm |
| Measurement time | ≤ 0.2 s (acquire, analyze, transfer) |
| Simultaneous wavelengths | Up to 1024 (multi-wavelength type) |
| Minimum separation | 5 GHz (multi-wavelength) |
| Input power | Down to −40 dBm with AGC |
| Display | 5.7-inch colour LCD |
| Interfaces | GP-IB, Ethernet, USB |
| Reference source | Built-in He-Ne laser (≥ 30,000 h) |
| Optical connector | FC/PC or SC/PC (AQ9441 adapter) |
| Weight | Approx. 11 kg |
Specifications from the official Yokogawa AQ6150 Series Optical Wavelength Meter brochure (BUAQ6150SR-01EN). AQ6150B is discontinued; AQ6151B is the current high-accuracy model. Use Download Datasheet for the full document. Configure single/multi-wavelength type and connector when enquiring.
