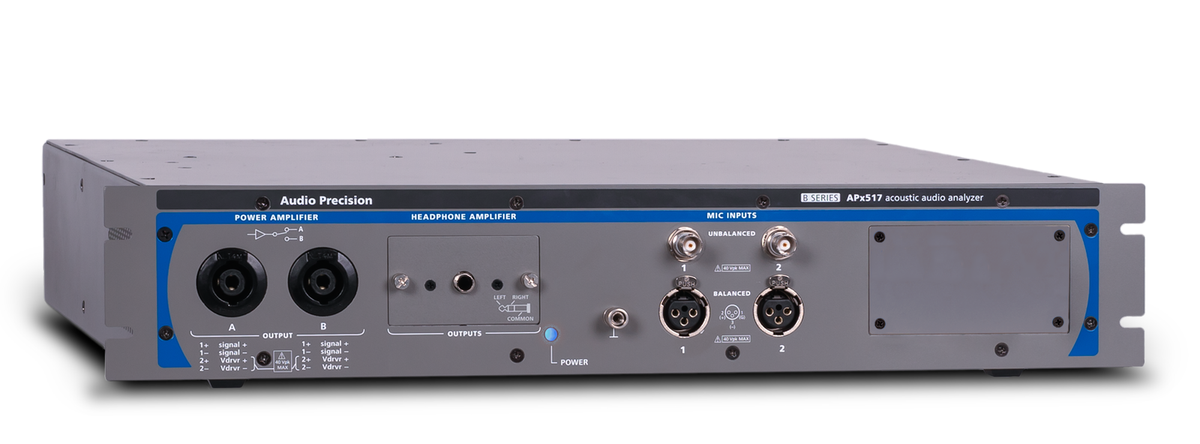

APx517B Acoustic Analyzer
The Audio Precision APx517B Series acoustic audio analyzer is specifically designed, configured and priced to meet production-line needs. It is ideal for testing speakers, microphones, headphones, headsets and the wide range of consumer electronics incorporating speakers and microphones.
As an integrated system combining audio analyzer (signal generation and acquisition), power amplifier, headphone amplifier and microphone power supply, along with any required digital interface such as Bluetooth, the APx517B drastically reduces setup and reconfiguration time by eliminating multiple individual components and their cabling. A module slot accepts a single APx digital interface module such as Bluetooth, PDM or HDMI.
Key Features
- Integrated 35 W mono power amplifier and stereo headphone amplifier
- Dual-channel Kelvin impedance measurement with specified impedance accuracy
- Microphone power: CCP / ICP / IEPE (4 or 10 mA), DC bias 0–12 V, 48 V phantom
- 192 kHz sample rate (high-res audio ready)

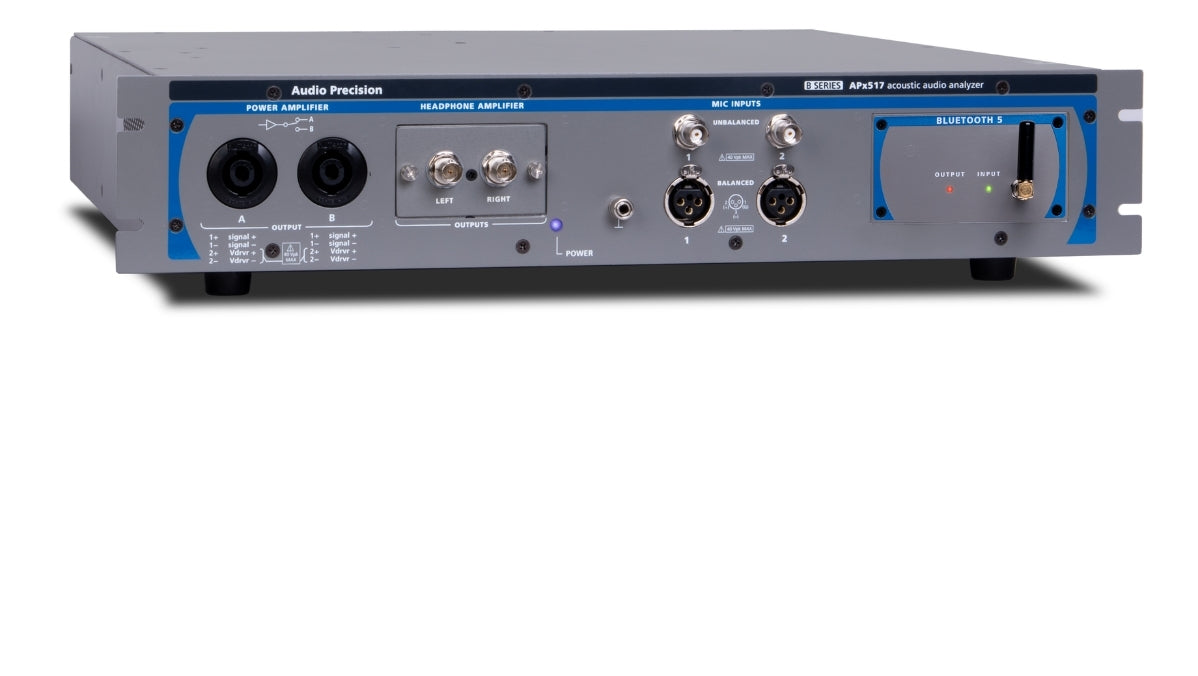

- Module slot for Bluetooth 5, Bluetooth Duo, PDM 16 and other APx modules
- Three-year warranty
Key Specifications
| Sample rate | 192 kHz |
| Unbalanced inputs | BNC, 40 Vpk max; CCP / ICP / IEPE mic power 4 or 10 mA; DC bias mic power 0–12 V |
| Balanced inputs | XLR, 40 Vpk max; 48 V phantom power |
| Input residual THD+N (20 kHz BW) | < −98 dB + 1.9 µV |
| Power amplifier | 35 W mono; 17 Vrms max; 2 to 8 Ω @ 35 W |
| Power amplifier residual THD+N (20 kHz BW) | < −80 dB + 35 µV |
| Power amplifier impedance accuracy | ≤ 1% (4–16 Ω resistive, 20 Hz–20 kHz); ≤ 2% (2–4 Ω) |
| Headphone amplifier | Stereo (2 ch); 9 Vrms max; 2 to 800 Ω @ 100 mW |
| Headphone amplifier residual THD+N (20 kHz BW) | < −84 dB + 15 µV |
| Power supply | Universal 100–240 V |
Datasheet available on request.
