• APx500 Flex Software Audio Analyzer

APx500 Flex Software Audio Analyzer

Interested in this product?

Send us your details and we’ll get back to you with availability, pricing, and any additional information you need.

APx500 Flex Software Audio Analyzer

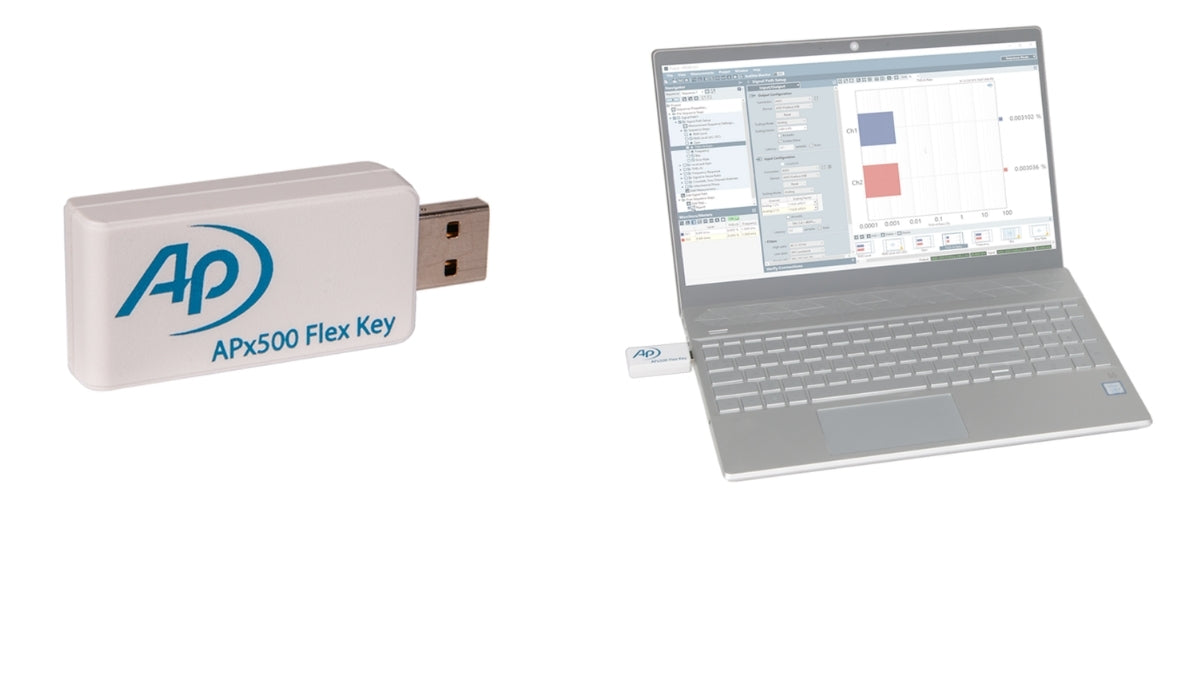

The Audio Precision APx500 Flex audio analyzer, comprised of APx500 measurement software and an APx500 Flex Key, lets you select the ASIO-capable audio interface of your choice to use with AP's APx audio measurement software. Start with the measurement options you need now, with the freedom to add more as your test requirements evolve.

APx500 Flex brings AP innovations such as one-click measurements, code-free automation and sophisticated reporting to off-the-shelf audio interface hardware.

Key Features

  • APx500 measurement software + Flex Key for any ASIO-capable audio interface
  • Verified interfaces (templates in APx500 v5.0.2 or later): Danville Signal dspInstrument spDAQ, Echo AIO-A2, Echo AIO-SA, Lynx Aurora (n), Lynx E22, RME Fireface UCX II, RME Fireface 802
  • Flex Pack 2: crosstalk, DC level, DUT delay, frequency response, interchannel phase, noise, SNR, SINAD, stepped level sweep and more
  • Flex Pack 3: continuous sweep, dynamic range (AES17), IMD, maximum output (CEA-2006), multitone and signal analyzer
  • Flex Pack 4: acoustic response, bandpass sweeps, cumulative spectral decay, impedance / Thiele-Small, modulated noise, polar plots, transfer function

Key Specifications

Hardware Any ASIO-enabled audio interface (verified interfaces offer < 90 dB THD+N, 192 kHz SR)
Licensing APx500 Flex Key; perpetual or subscription software options
Operating system Microsoft Windows 10 (64-bit)

Datasheet available on request.
