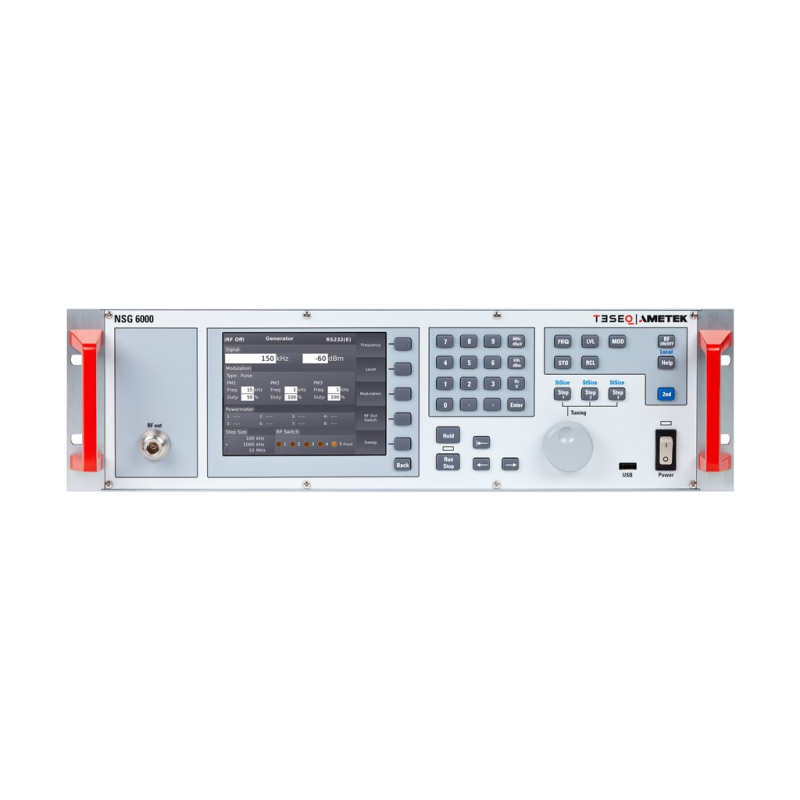

NSG 6000A Radiated and Conducted Immunity Test System
The NSG 6000A consists of an integrated RF signal generator, RF switch and EUT monitoring interfaces. The unit is designed for various EMC applications in the 9 kHz to 6 GHz frequency range. In addition to the generator, the system includes the AM and PM modulators necessary for EMC testing. The NSG 6000A includes 3 freely configurable pulse modulators (1 µs to 200 s) for radar pulse profiles as required e.g. by Ford FMC1278 or VW TL81000.
The RF signal can be switched to one of five outputs, where up to five power amplifiers can be connected directly. Different RF switches are supplied for combining amplifiers into two antenna paths or other applications. Up to eight power meters PMR 6003 or PMR 6006 can be connected directly to the NSG 6000A.
Key Features
- Integrated signal generator 9 kHz to 6 GHz
- Integrated RF switch network
- Integrated 3 freely configurable pulse modulators (1 µs to 200 s) for radar pulse profiles
- External modulation inputs for AM and PM
- Multiple EUT monitoring options
- 5.7” TFT color display
- Remote control via USB, RS232, LAN or optical
Standards: IEC 61000-4-3, IEC 61000-4-6, IEC 61000-4-20, IEC 61000-4-21, IEC 62132, ISO 11452-4, MIL-STD-461
Frequency range: 9 kHz – 6 GHz
