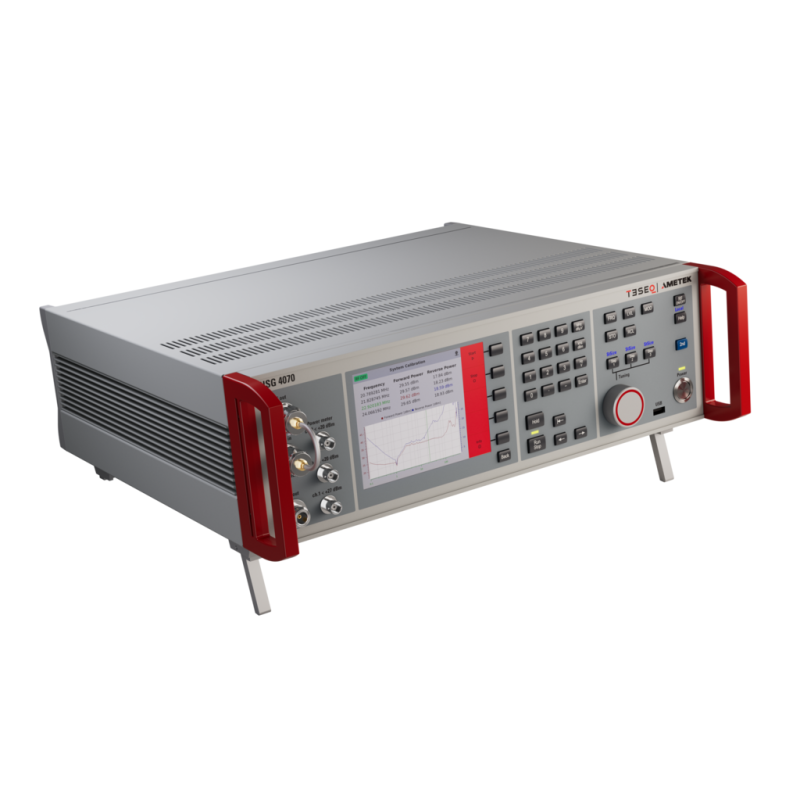

NSG 4070D RF Conducted Immunity Test System
The NSG 4070D by Teseq (AMETEK CTS) is a compact and versatile EMC immunity test system, featuring an integrated signal generator, power amplifiers, and RF power meter. It provides precise and efficient electromagnetic susceptibility testing for a wide range of applications, including industrial, automotive, medical, and consumer electronics.
The heart of the NSG 4070D is its integrated signal generator, producing sinusoidal signals from 4 kHz to 1 GHz, with levels from -60 dBm to +10 dBm. It includes an internal modulator for amplitude and pulse modulation (AM and PM), both adjustable within and beyond standard specifications. The modular power amplifier system covers 150 kHz to 230 MHz (e.g. IEC 61000-4-6) or 4 kHz to 400 MHz (e.g. ISO 11452-4, MIL-STD-461 CS114) with 50 W or 100 W models. Select the required configuration using the Model option.
Key Features
- Integrated signal generator 4 kHz to 1 GHz
- 3 external power meter inputs 4 kHz to 1 GHz
- Multiple EUT monitoring options
- 5.7” TFT color display
- Internal, menu-based control software
- Basic remote control software and report generator included
- Optically decoupled remote control
- Suitable for various RF conducted EMC tests: Industrial, Automotive, Military, Avionics, and Medical
Models
| Model | Description | Amplifier Frequency Range |
|---|---|---|
| NSG 4070D-0 | Generator and power meter, without power amplifier | 4 kHz – 1 GHz |
| NSG 4070D-A230M-50 | With 50 W amplifier module | 150 kHz – 230 MHz |
| NSG 4070D-A230M-100 | With 100 W amplifier module | 150 kHz – 230 MHz |
| NSG 4070D-A400M-50 | With 50 W amplifier module | 4 kHz – 400 MHz |
| NSG 4070D-A400M-100 | With 100 W amplifier module | 4 kHz – 400 MHz |
Standards: IEC 61000-4-6, IEC 61000-4-39, IEC 60601-1-2, ISO 7637-4, ISO 11452-4, MIL-STD-461
Frequency range: 4 kHz – 1 GHz
