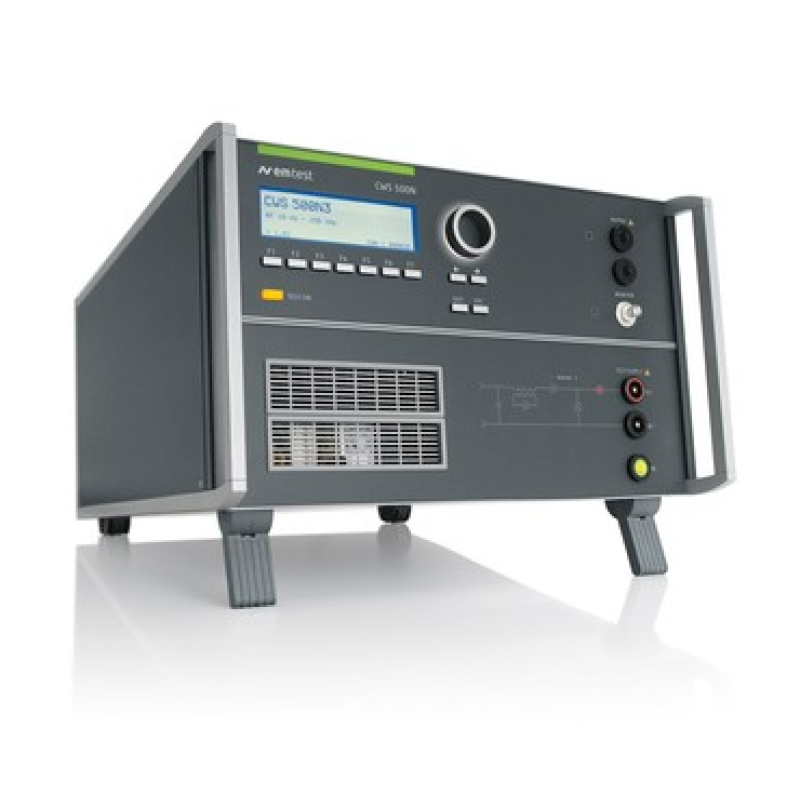

CWS 500N3 Low Frequency Ripple and Magnetic Field Simulator

Product Features

Most compact equipment for ripple noise on ac/dc supplies and magnetic fields
Built-in LF signal generator
Built-in LF amplifier (100 W nominal, 10 Hz to 250 kHz)
Built-in LF transformer 2:1
Built-in frequency-selective voltage and current meter
Built-in load resistors
Automatic self-calibration

Standards: ISO 11452-8, ISO 11452-10, SAE J1113-2, RTCA DO-160, MIL-STD-461

Download datasheet

Interested in this product?

Send us your details and we’ll get back to you with availability, pricing, and any additional information you need.

CWS 500N3 Low Frequency Ripple and Magnetic Field Simulator

Key applications of the EM TEST CWS 500N3 are in the automotive and aerospace area. Various international standards and MIL requirements call for magnetic field tests in the low frequency range. Apart from this the automotive industry requires conducted immunity tests with superposed sinusoidal signals on the DC supply voltage (ripple noise). For both applications the CWS 500N3 is the perfect equipment including everything in a single box, necessary for these tests.

The CWS 500N3 meets requirements of SAE J1113-2, ISO 11452-8, DO 160D/E Section 18 and MIL-STD-461 D/E/F/G CS101, CS109 and RS101.
