Product Features

Smallest compact generator with 7" touch screen
Burst 5.5 kV, Surge & Ringwave 7.0 kV, Power Fail and Telecom 7.0 kV
Selective test library adapted to the EUT setting
Built-in single phase CDN up to 400 V/32 A
Manual front panel operation with setup pictures
Separate key for START/STOP operation with LED
Monitor outputs for peak voltage and current
Opto-Link, Ethernet and USB for remote control
Control of external three-phase couplers

Standards: IEC 61000-4-4, IEC 61000-4-5, IEC 61000-4-8, IEC 61000-4-9, IEC 61000-4-11, IEC 61000-4-12, IEC 61000-4-29

Interested in this product?

Send us your details and we’ll get back to you with availability, pricing, and any additional information you need.

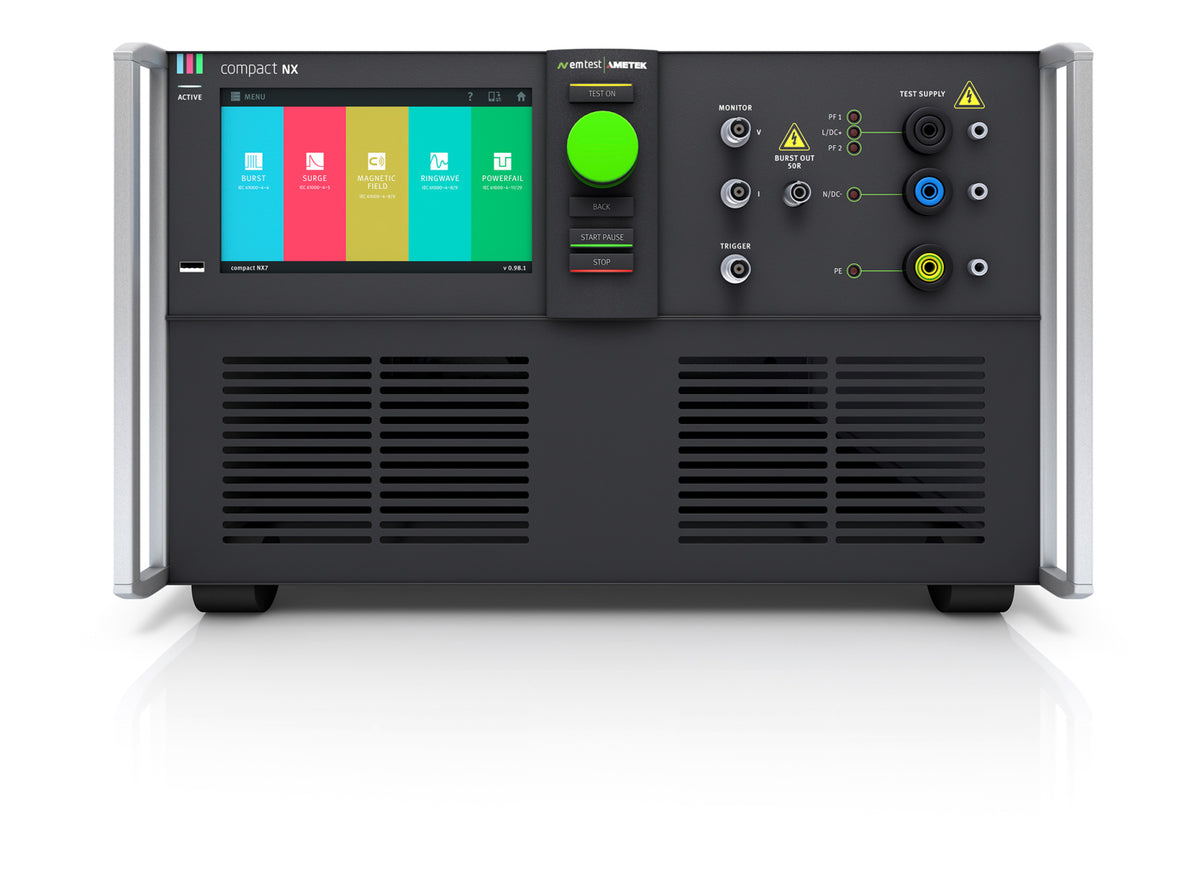

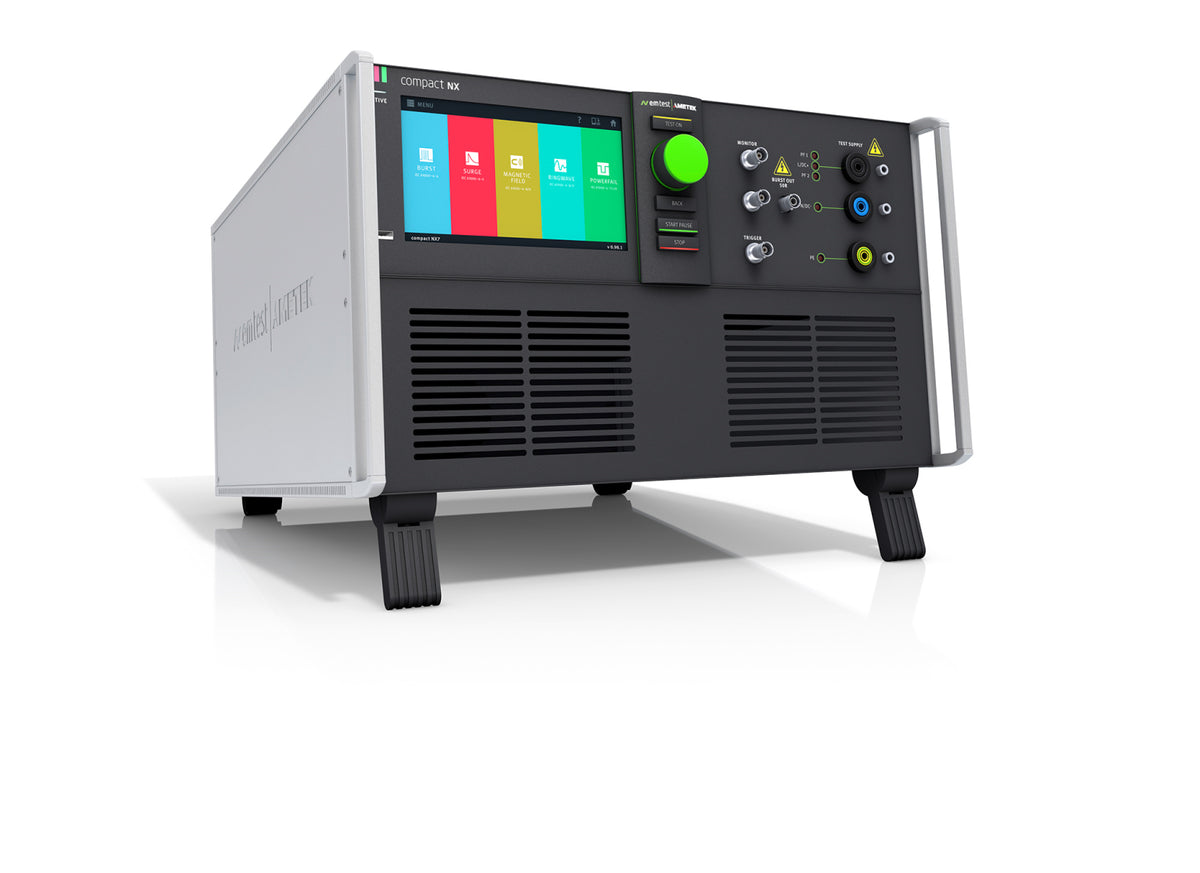

AMETEK CTS compact NX7

Name: AMETEK CTS compact NX7
Brand: AMETEK CTS
Availability: InStock

The compact Next Generation NX7 is the higher-power sibling of the NX5 multifunctional transient generator for EFT/Burst, Surge, Ringwave, Power Fail and Telecom Surge immunity testing. Featuring a 7" colour touch screen and built-in single-phase CDN (extendable with external three-phase CDNs up to 200 A/phase), NX7 supports Burst 5.5 kV and Surge & Ringwave up to 7.0 kV for pre-compliance through full-compliance and CE Marking.
