AHO1 Series High Resolution Automotive Oscilloscope
Interested in this product?
Send us your details and we’ll get back to you with availability, pricing, and any additional information you need.
Product Introduction

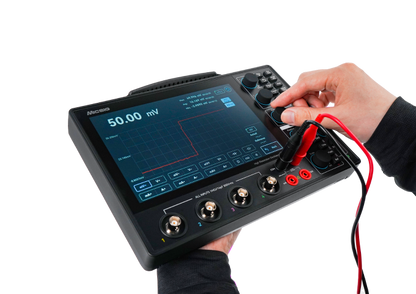

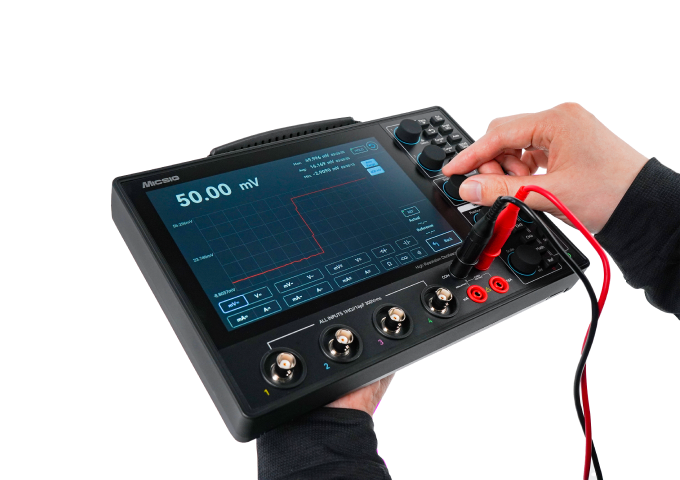

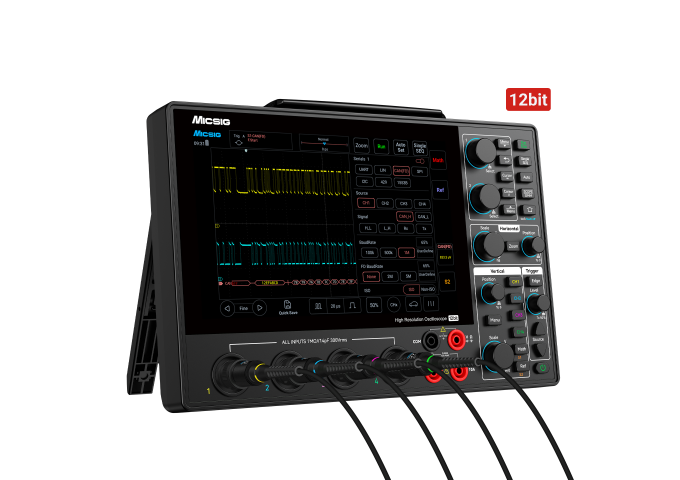

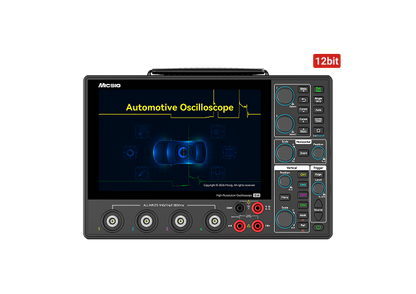

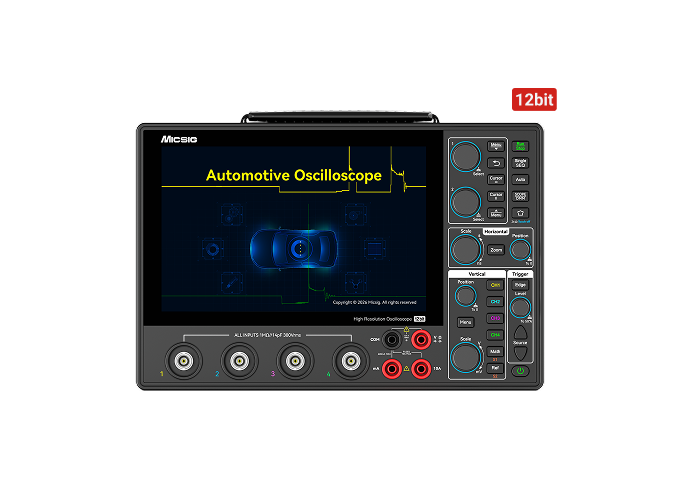

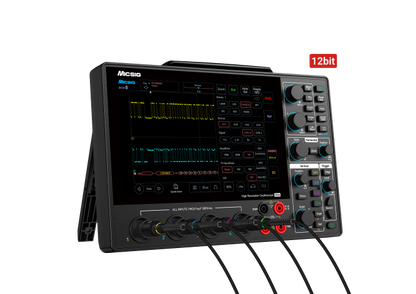

Micsig AHO1 Series is a professional high resolution automotive oscilloscope designed for vehicle diagnostics. It features a 12 bit ADC, 200 MHz bandwidth, 4 analog channels, a real time sampling rate of 1 GSa/s, and a memory depth of 110 Mpts. Its ultra slim 3.1 cm portable design, built in high capacity Li ion battery, and USB Type C charging makeit ideal for mobile and outdoor repair applications. With an innovative general / automotive dual- software architecture and dedicated test modes for engines, sensors, and EV systems, it supports both ICE and new energy vehicle diagnostics, helping technicians troubleshoot faster and improve service efficiency. Automotive / General Oscilloscope Function With dedicated automotive and general-purpose oscilloscope software, it meets both professional vehicle diagnostic and general electronic measurement.
Specifications
| Model | AHO14-200 |
| Bandwidth | 200MHz |
| Analog Channels | 4 |
| Real-time Sampling Rate | 1GSa/s |
| Rise Time | ≤ 1.75ns |
| Memory Depth | 110Mpts |
| Vertical Resolution | 12bit |
| Max. waveform Capture Rate | 50,000wfms/s |
| Interfaces | USB 3.0 Host、USB Type-C、LAN、HDMI |
| Support Test | Charging/Start Circuits, Sensors, Actuators, Ignition, Networks (CAN L/H, CAN FD, LIN, Flexray, K line), Combination Tests |
| Display | 8" TFT LCD capacitive touch screen, 1280*800 pixels |
| Battery | 3.7 V, 16000mAh Lithium-ion battery |
| Charging | Standard DC 12V adapter, supports Type-C 5V charging |
| Multifunction Meter Accuracy | 4⅚ Digits |
| Dimension | 265*174*31mm（Width*Height*Thickness） |
