ZETA (PDC) 20V-2000V 1.7kW-5kW
Interested in this product?
Send us your details and we’ll get back to you with availability, pricing, and any additional information you need.

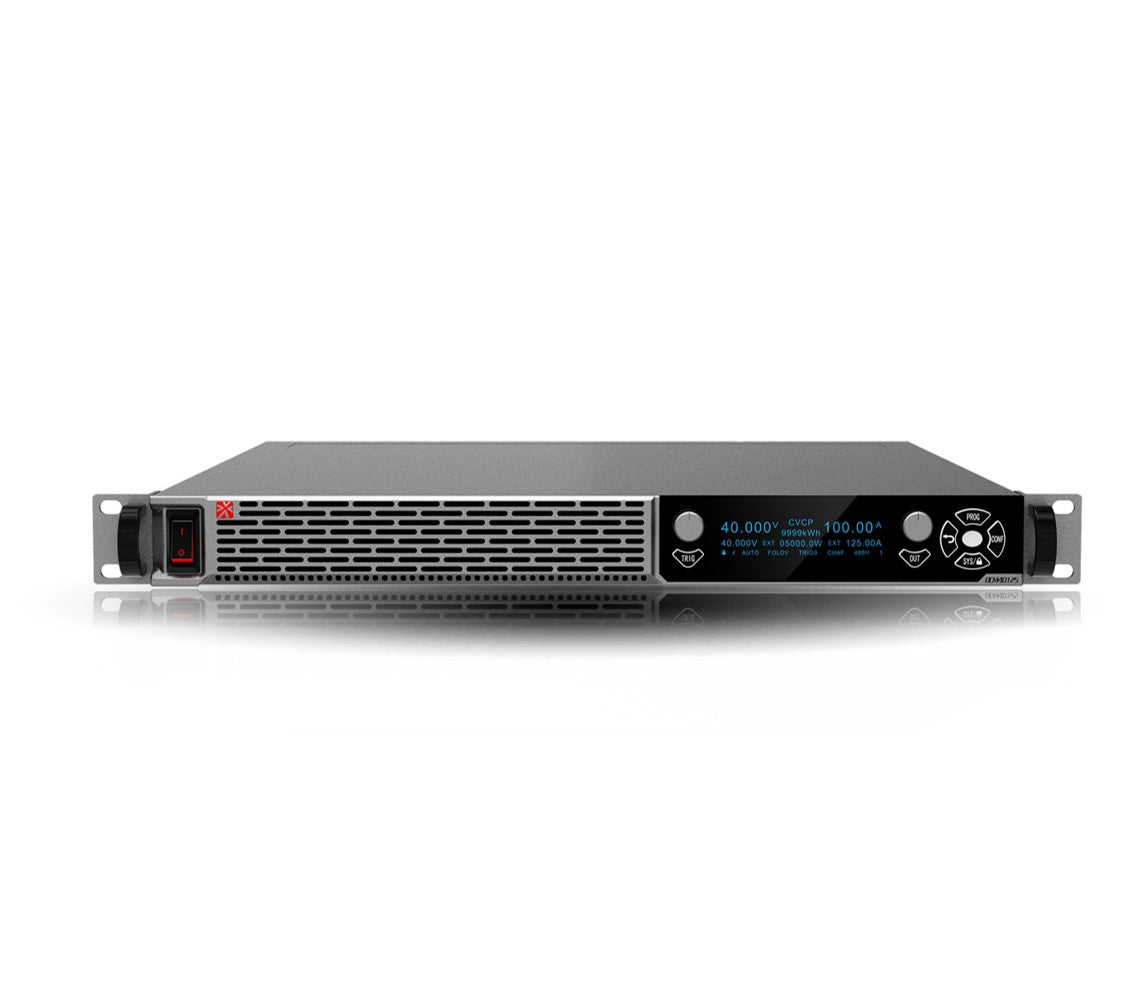

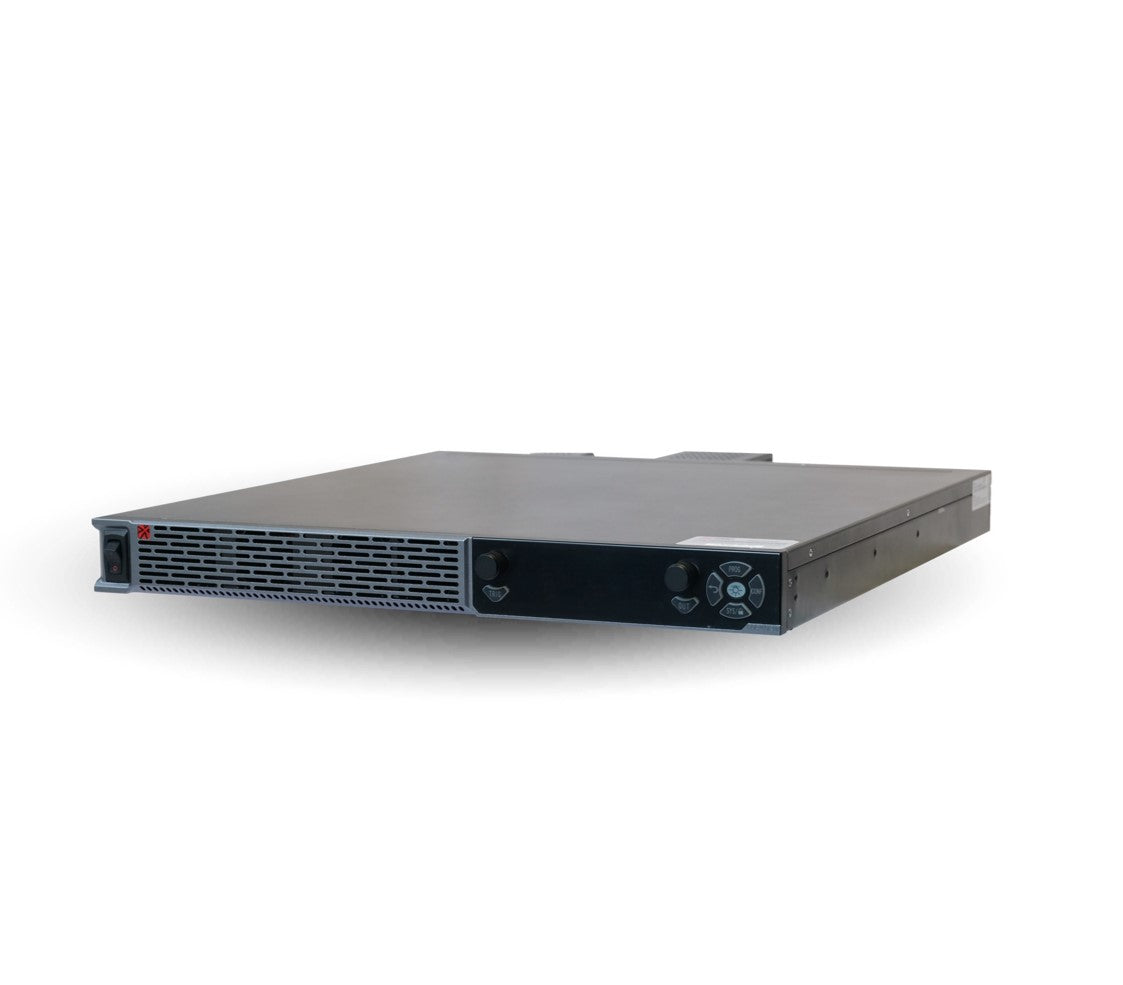

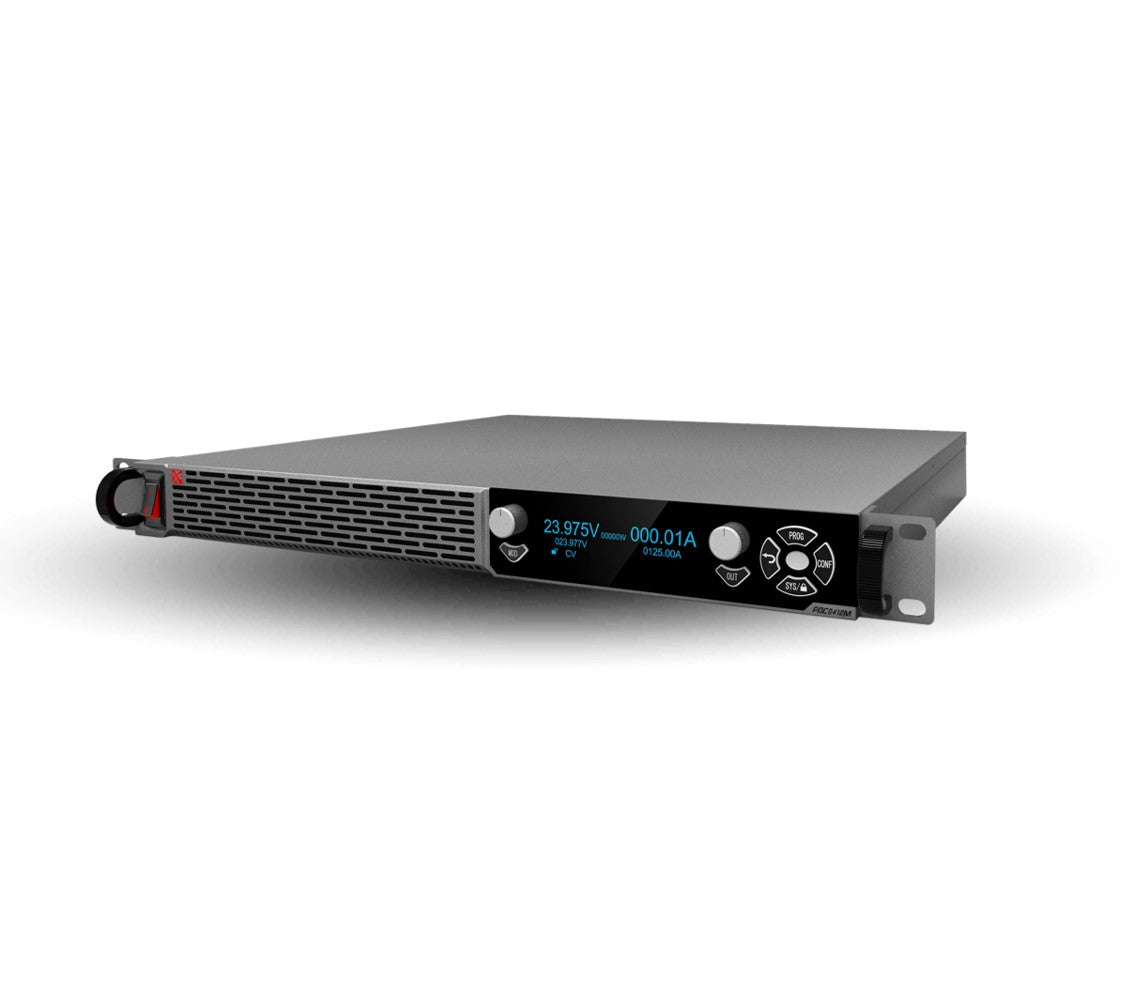

The ZETA Series (formerly PDC Series) is a high-precision, rack-mountable 1U programmable DC power supply for laboratory, industrial and OEM use, including semiconductor, particle-accelerator and aerospace applications. Its accuracy and stability remove the need for separate precision meters.
Key Features
- High-precision laboratory programmable DC power supply, 1.7 / 3.0 / 3.6 / 5.0 kW in 1U
- Output up to 2000 V or 200 A (model dependent)
- Voltage accuracy ±0.02% F.S.; current stability ±10 ppm / 8 h; resolution < 5 ppm
- Operating modes CV, CC, CVCP, CCCP
- Programmable output impedance 0–100 Ω to simulate cable drop or battery behaviour
- List / Wave programming, 200 steps, 1 ms minimum step
- Auto master-slave parallel (up to 99 units) or series operation
- Isolated analog programming & monitoring 0–5 V / 0–10 V, interlock, trigger in/out
- Full-touch front panel with dual encoder knobs
- 220 V (185–265 Vac) or 380 V (304–460 Vac) input models, PF 0.97, efficiency up to 92%
Model Options
| Model | Power (kW) | Voltage (V) | Current (A) | Voltage Ripple rms (mV, 5 Hz–1 MHz) | Current Ripple rms (mA) | Input (V) |
|---|---|---|---|---|---|---|
| ZD1.7-020 | 1.7 | 0–20 | 0–200 | 10 | 300 | 220 |
| ZD1.7-040 | 1.7 | 0–40 | 0–125 | 12 | 75 | 220 |
| ZD1.7-060 | 1.7 | 0–60 | 0–85 | 12 | 50 | 220 |
| ZD1.7-100 | 1.7 | 0–100 | 0–50 | 15 | 23 | 220 |
| ZD1.7-150 | 1.7 | 0–150 | 0–34 | 20 | 23 | 220 |
| ZD1.7-350 | 1.7 | 0–350 | 0–15 | 60 | 7.5 | 220 |
| ZD1.7-750 | 1.7 | 0–750 | 0–7 | 100 | 4 | 220 |
| ZD3.0-020 | 3 | 0–20 | 0–200 | 10 | 300 | 220 |
| ZD3.0-030 | 3 | 0–30 | 0–170 | 12 | 150 | 220 |
| ZD3.0-040 | 3 | 0–40 | 0–125 | 12 | 75 | 220 |
| ZD3.0-060 | 3 | 0–60 | 0–85 | 12 | 50 | 220 |
| ZD3.0-100 | 3 | 0–100 | 0–50 | 15 | 23 | 220 |
| ZD3.0-150 | 3 | 0–150 | 0–34 | 20 | 23 | 220 |
| ZD3.0-350 | 3 | 0–350 | 0–15 | 60 | 7.5 | 220 |
| ZD3.0-750 | 3 | 0–750 | 0–7 | 100 | 4 | 220 |
| ZD3.0-2K0 | 3 | 0–2000 | 0–1.5 | 300 | 4 | 220 |
| ZD3.0-020H | 3 | 0–20 | 0–200 | 10 | 300 | 220 |
| ZD3.0-040H | 3 | 0–40 | 0–125 | 12 | 75 | 220 |
| ZD3.6-020 | 3.6 | 0–20 | 0–200 | 10 | 300 | 380 |
| ZD3.6-030 | 3.6 | 0–30 | 0–170 | 12 | 150 | 380 |
| ZD3.6-040 | 3.6 | 0–40 | 0–125 | 12 | 75 | 380 |
| ZD3.6-060 | 3.6 | 0–60 | 0–85 | 12 | 50 | 380 |
| ZD3.6-100 | 3.6 | 0–100 | 0–50 | 15 | 23 | 380 |
| ZD3.6-150 | 3.6 | 0–150 | 0–34 | 20 | 23 | 380 |
| ZD3.6-350 | 3.6 | 0–350 | 0–15 | 60 | 7.5 | 380 |
| ZD3.6-750 | 3.6 | 0–750 | 0–7 | 100 | 4 | 380 |
| ZD5.0-030 | 5 | 0–30 | 0–170 | 12 | 150 | 380 |
| ZD5.0-100 | 5 | 0–100 | 0–50 | 15 | 23 | 380 |
| ZD5.0-150 | 5 | 0–150 | 0–34 | 20 | 23 | 380 |
| ZD5.0-350 | 5 | 0–350 | 0–15 | 60 | 7.5 | 380 |
| ZD5.0-750 | 5 | 0–750 | 0–7 | 100 | 4 | 380 |
Formerly the PDC Series (renamed ZETA by ActionPower). Please contact us for a quotation.
