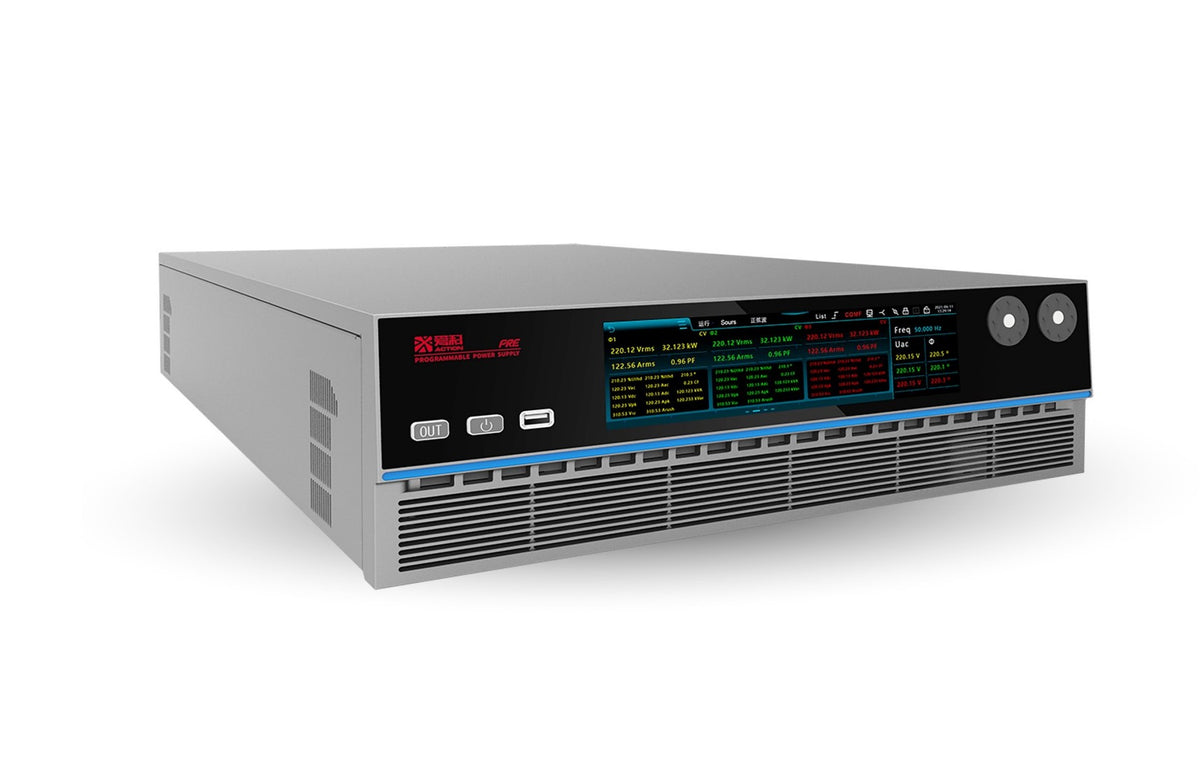

• CORTEX AC (PRE) regenerative grid simulator

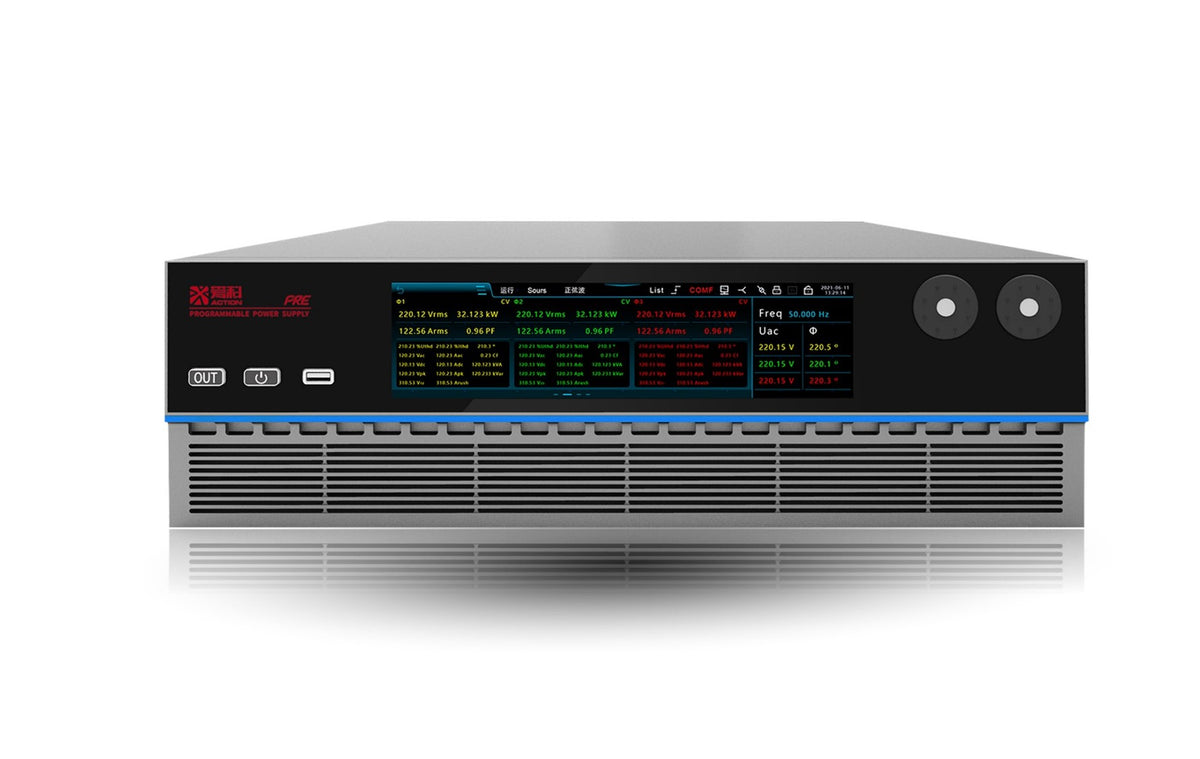

  • CORTEX AC programmable AC power source

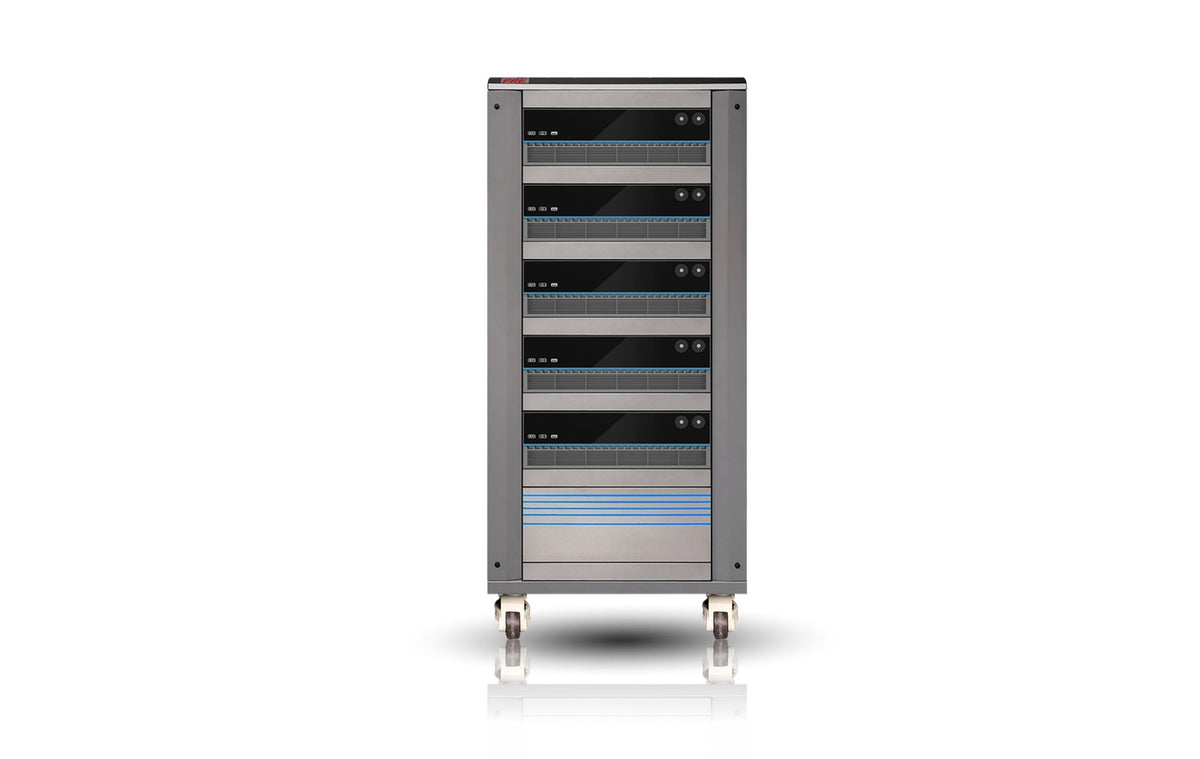

  • CORTEX AC rack-mounted system

CORTEX AC (PRE) 450V 6kVA-22kVA

  • Regenerative 4-quadrant AC/DC power source and grid simulator with integrated AC/DC electronic load (RLC load emulation)
  • 6 kVA to 22 kVA in 3U; parallel up to 10 units (220 kVA)
  • Output 0–450 V L-N (0–779 V L-L), AC, DC, AC+DC and DC+AC
  • Frequency DC, 0.001–200 Hz (standard) or up to 5 kHz (HF models), 0.001 Hz resolution
  • Voltage accuracy ±(0.01% + 0.05% F.S.), 0.01 V resolution
  • Voltage slew rate 3 V/μs; 100 μs programming step
  • Phase angle control 0–359.9° (0.1°) for single, split and three phase / unbalanced output
  • Harmonic and inter-harmonic synthesis up to 100th order; arbitrary waveforms
  • Built-in IEC 61000-4-11/-13/-14/-17/-27/-28/-29 test profiles; power HIL support
  • Regenerative efficiency > 91%, PF 0.99
Model
Download datasheet

Interested in this product?

Send us your details and we’ll get back to you with availability, pricing, and any additional information you need.

The CORTEX AC Series (formerly PRE / PRE20 Series) is a rack-mount regenerative 4-quadrant programmable AC power source and grid simulator. A single unit works as an AC/DC source and as an AC/DC (RLC) load with energy regenerated to the grid, for testing grid-tied inverters, on-board chargers, EVSE, aerospace 400 Hz equipment and IEC 61000 immunity.

Key Features

  • Regenerative 4-quadrant AC/DC power source and grid simulator with integrated AC/DC electronic load (RLC load emulation)
  • 6 kVA to 22 kVA in 3U; parallel up to 10 units (220 kVA)
  • Output 0–450 V L-N (0–779 V L-L), AC, DC, AC+DC and DC+AC
  • Frequency DC, 0.001–200 Hz (standard) or up to 5 kHz (HF models), 0.001 Hz resolution
  • Voltage accuracy ±(0.01% + 0.05% F.S.), 0.01 V resolution
  • Voltage slew rate 3 V/μs; 100 μs programming step
  • Phase angle control 0–359.9° (0.1°) for single, split and three phase / unbalanced output
  • Harmonic and inter-harmonic synthesis up to 100th order; arbitrary waveforms
  • Built-in IEC 61000-4-11/-13/-14/-17/-27/-28/-29 test profiles; power HIL support
  • Regenerative efficiency > 91%, PF 0.99

Key Specifications

Item Specification
Power 6 – 22 kVA per 3U unit, up to 10 units in parallel
AC voltage 0–450 V L-N; HF: 0–300 V @200–1600 Hz, 0–250 V @1600–2000 Hz, 0–100 V @2000–5000 Hz
DC voltage ±636 V
Frequency DC, 0.001–200 Hz (HF: up to 5000 Hz)
Voltage accuracy ±(0.01% + 0.05% F.S.)
Voltage distortion < 0.3% @ 50/60 Hz
Slew rate 3 V/μs
Phase 0–359.9°, 0.1° resolution
Load modes R 0.001–1000 Ω, L 1–5000 mH, C 1–5000 mF, CF, PF
AC input 304–480 Vac, 3ph + PE, 47–63 Hz, PF 0.99, eff. > 91%
Interfaces USB, LAN
Dimensions 435 × 132 × 781 mm (3U)

Model Options

Model Power (kVA) Voltage (V L-N) Frequency (Hz) 3-Phase Max. Current (A rms) 1-Phase Max. Current (A rms) DC Current (A)
CA06-450 6 0–450 DC, 0.001–200 30 90 ±90
CA7.5-450 7.5 0–450 DC, 0.001–200 30 90 ±90
CA09-450 9 0–450 DC, 0.001–200 35 105 ±105
CA12-450 12 0–450 DC, 0.001–200 35 105 ±105
CA15-450 15 0–450 DC, 0.001–200 35 105 ±105
CA20-450 20 0–450 DC, 0.001–200 35 105 ±105
CA22-450 22 0–450 DC, 0.001–200 35 105 ±105
CA06-450HF 6 0–450 DC, 0.001–5000 30 90 ±105
CA7.5-450HF 7.5 0–450 DC, 0.001–5000 30 90 ±90
CA09-450HF 9 0–450 DC, 0.001–5000 35 105 ±90
CA12-450HF 12 0–450 DC, 0.001–5000 35 105 ±105
CA15-450HF 15 0–450 DC, 0.001–5000 35 105 ±105
CA20-450HF 20 0–450 DC, 0.001–5000 35 105 ±105

Formerly the PRE / PRE20 Series (renamed CORTEX AC by ActionPower in Nov 2025). Please contact us for a quotation.
