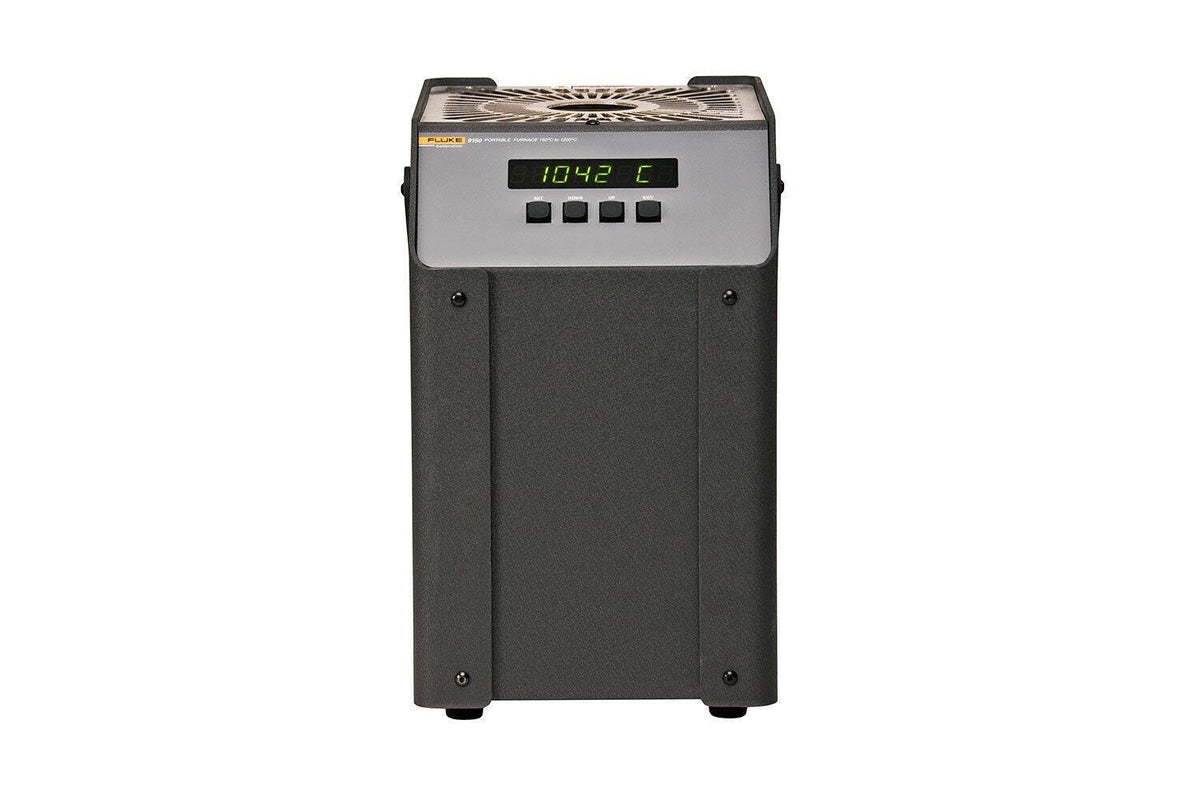

9150 Thermocouple Furnace
Interested in this product?
Send us your details and we’ll get back to you with availability, pricing, and any additional information you need.
9150 Thermocouple Furnace uses Fluke Calibration's own microprocessor-based controller for great stability and set-point accuracy.
Product Overview
With a stability of ±0.5 °C, it has a temperature range to 1200 °C and a display accuracy of ±5 °C across its entire range.
With interchangeable temperature blocks, you can check thermocouples as small as 1/16 of an inch in diameter. The 9150 works with 115 or 230 VAC power.
The 9150 Thermocouple Furnace uses Fluke Calibration's own microprocessor-based controller for great stability and set-point accuracy. It has a removable well insert for versatility. It has rapid cool-down and heat-up times. And it comes with an RS-232 port for connection to a PC.
You can now afford to check your thermocouples with this excellent cost-effective instrument. Why pay more for features you don’t need and can’t use? Each unit is factory-calibrated and comes with test data and a calibration traceable to NIST.
Models
- 9150-A
- 9150-B
- 9150-C
- 9150-D
Specifications: Fluke Calibration 9150 Thermocouple Furnace
| General Specifications | |
| Temperature range | 150°C to 1200°C (302°F to 2192°F) |
| Display resolution | 0.1° to 999.9° 1° above 1000° |
| Stability | ±0.5°C |
| Display accuracy | ±5°C |
| Well diameter | 1.25 in(32 mm) |
| Well depth | 140 mm (5.5 in); (101 mm [4 in] removable insert plus 38 mm [1.5 in] insulator) |
| Heating time | 35 minutes to 1200°C |
| Cooling time | 140 minutes with block |
| Well-to-well uniformity | ±2.5°C (Insert “C” at 1200°C) |
| Stabilization | 20 minutes |
| Power | 115 V AC (±10%), 10.5 A or 230 V AC (±10%), 5.2 A, switchable, 50/60 Hz, 1200 W |
| Size (H x W x D) | 315 x 208 x 315 mm (12.4 x 8.2 x 12.4 in) |
| Weight | 13 kg (28 lb) |
| NIST-traceable calibration | Data at 150°C, 300°C, 450°C, 600°C, 800°C, 1000°C, and 1200°C |
